Brother HL-1060 User Manual

Page 60

III-21

(2)

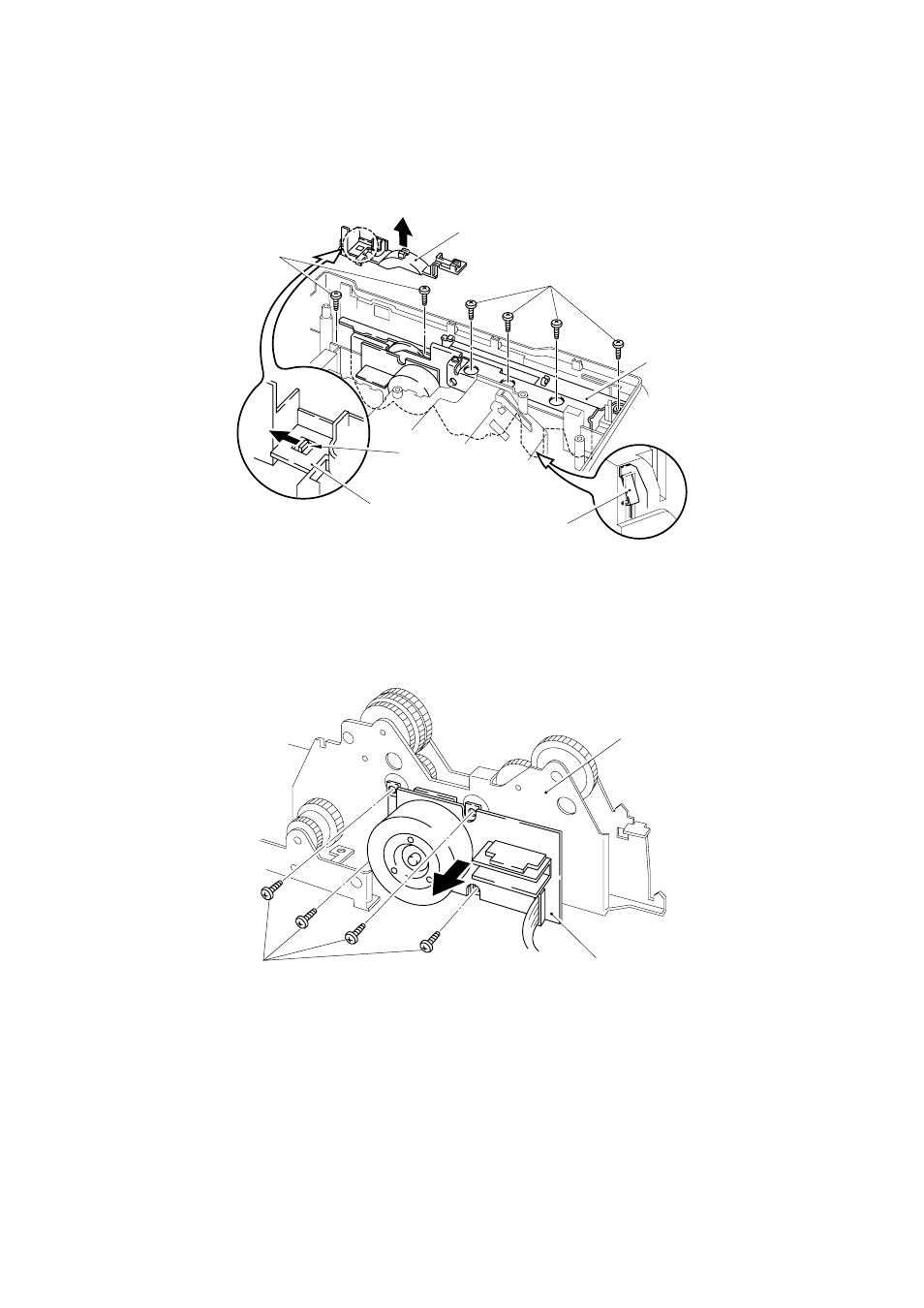

Release the hook to remove the gear cover.

(3)

Remove the six screws securing the drive unit. Lift the drive unit while pressing
and releasing the static removal plate spring on the drive unit.

Fig. 3.34

3.17

Main Motor ASSY

(1)

Remove the four screws securing the main motor ASSY.

Fig. 3.35

Gear cover

Hook

Screws

Drive unit

Gear cover

Static removal

plate spring

Screws

Drive unit

Screws

Main motor ASSY
