III-16

3.11

Base Plate ASSY

Note:

Prior to turning the printer upside-down, ensure that the drum unit has been
removed from the printer.

(1)

Turn the printer upside down.

(2)

Remove the five M4 and four M3 self tapping screws and one screw.

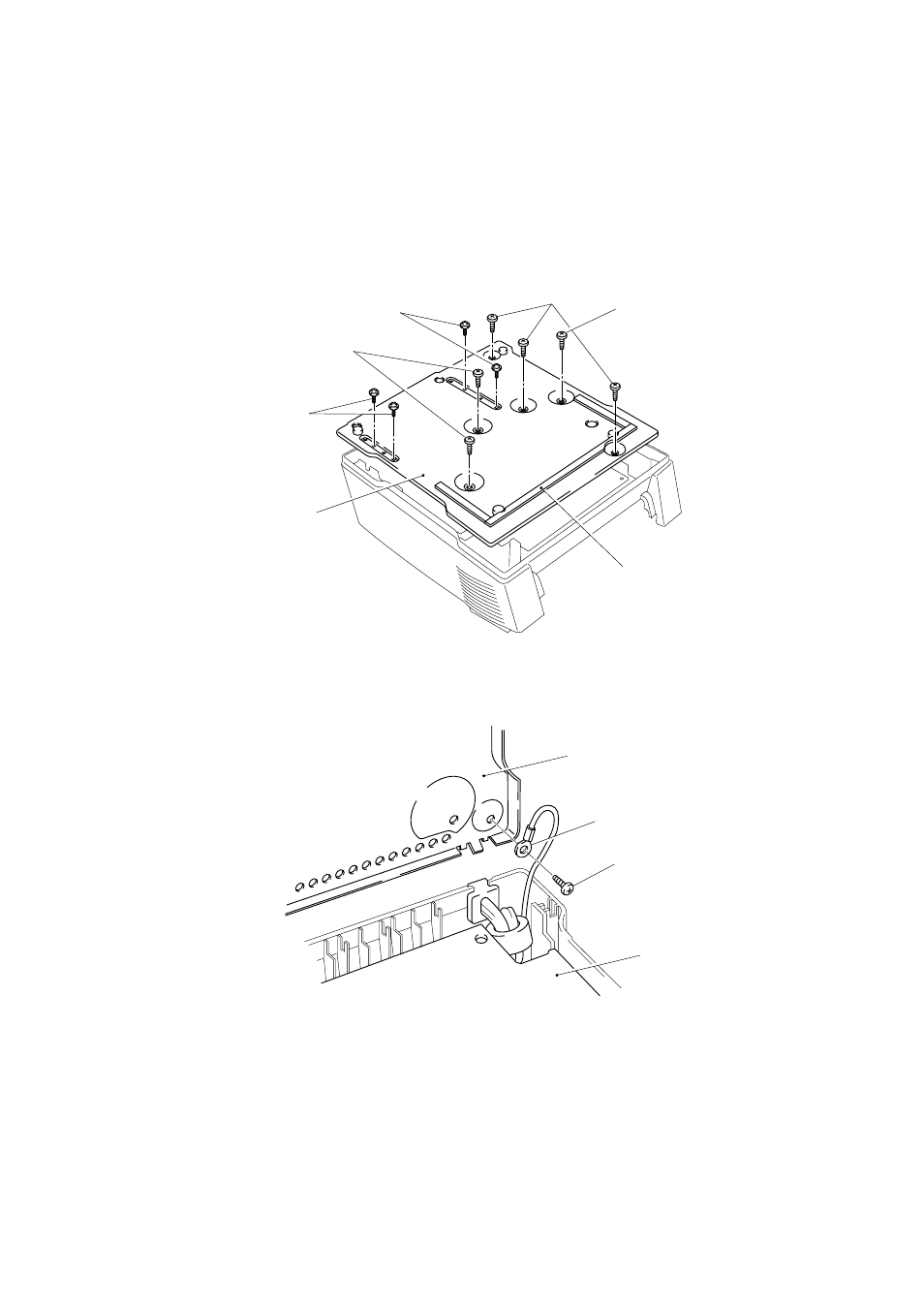

Fig. 3.24

(3)

Lift the base plate ASSY and remove the grounding screw.

Fig. 3.25

Base plate ASSY

Ground wire

Screw

Low-voltage power
supply PCB ASSY

Screw

Taptite, cup M3x2

Taptite, bind M4x2

Taptite, cup M3x2

Base plate ASSY

Soundproof sponge
