Brother HL-1060 User Manual

Page 46

III-7

3.5

MP Sheet Feeder 2 ASSY

(1)

Remove the four screws.

(2)

Disassemble any other parts of MP sheet feeder 2 in the same way as described
for MP sheet feeder 1.

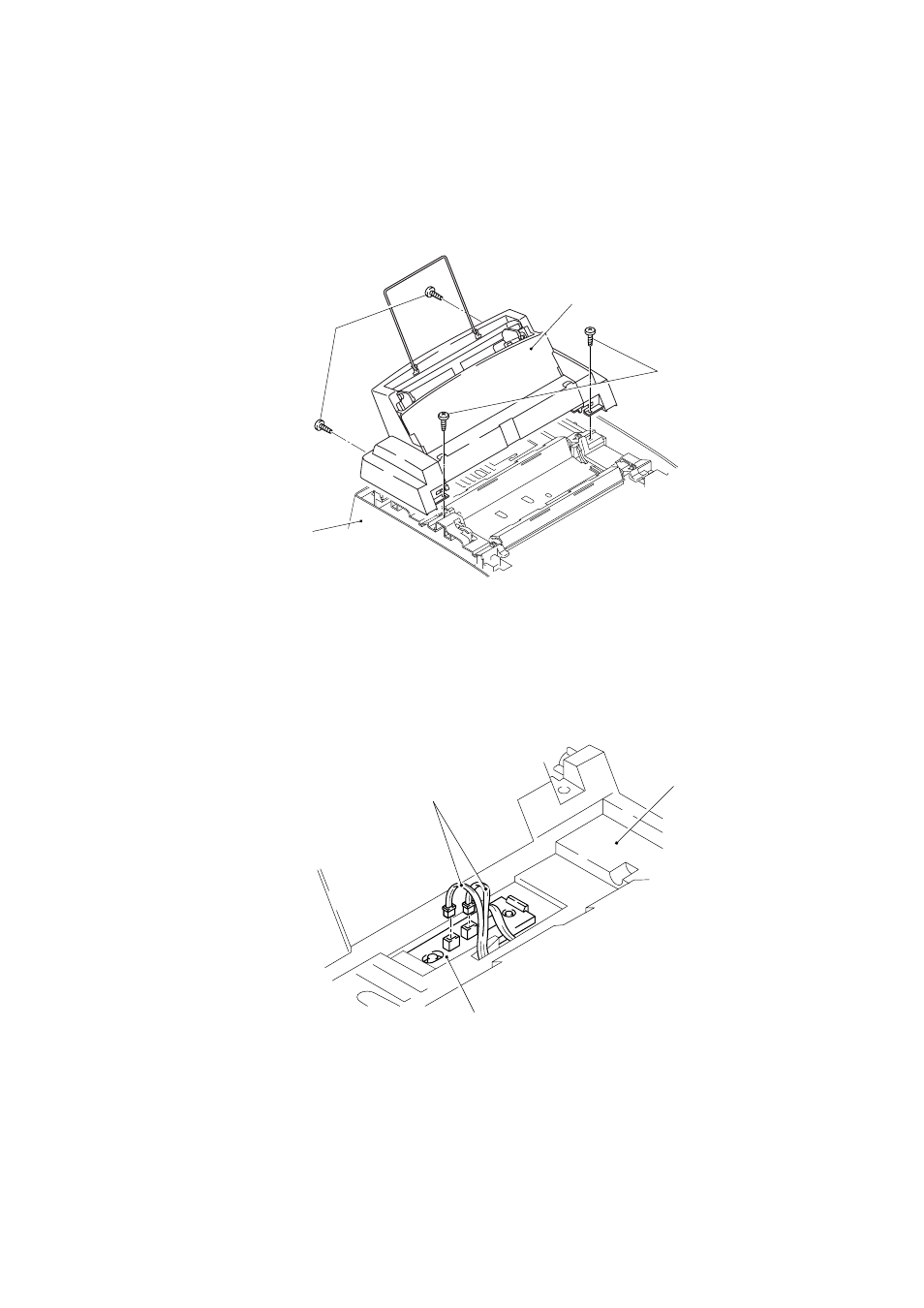

Fig. 3.9

3.6

Under Shoot ASSY

(1)

Disconnect the two cable harnesses from the relay PCB.

Fig. 3.10

Screws

MP sheet feeder 2

Screw

Main cover

Cable harness

Relay PCB ASSY

Under shoot ASSY
