Release the cleaner lock from the cleaner ASSY HR.

(10)

Remove the cleaner ASSY HR from the fixing unit.

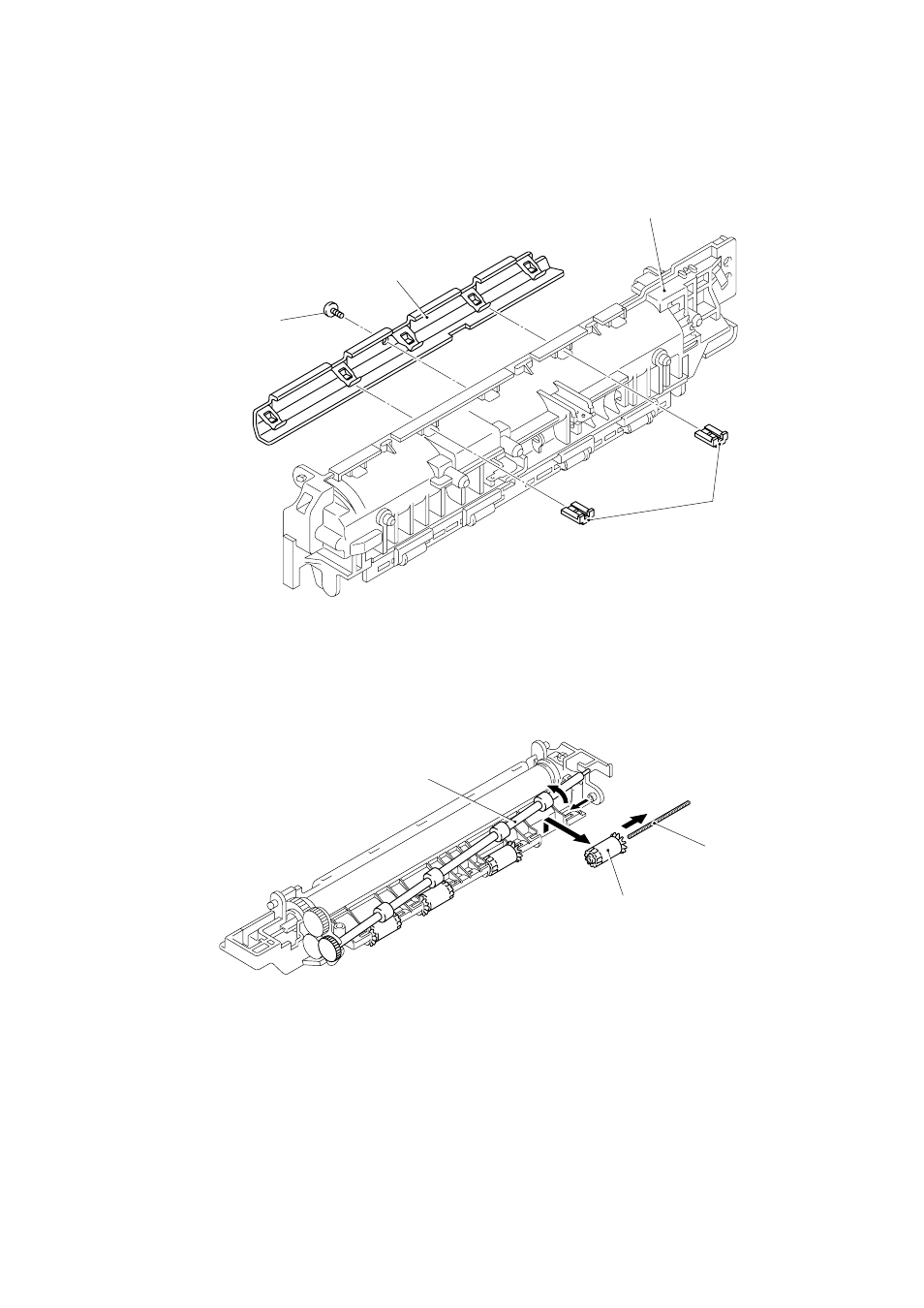

Fig. 3.18

(11)

Release the right side of the paper eject roller shaft.

(12)

Remove the four eject pinch rollers and the pinch springs from the fixing unit
frame. Then, remove the pinch spring from each pinch roller.

Fig. 3.18a

Eject Pinch Roller

Paper eject roller shaft

Pinch Spring

Screw

Cleaner ASSY HR

Cleaner lock

Fixing unit

PR98292
