Disassembly procedure – Brother HL-1060 User Manual
Page 42
III-3
3.
DISASSEMBLY PROCEDURE
3.1
Drum Unit
(1)
Open the top cover.
(2)
Lift out the drum unit.

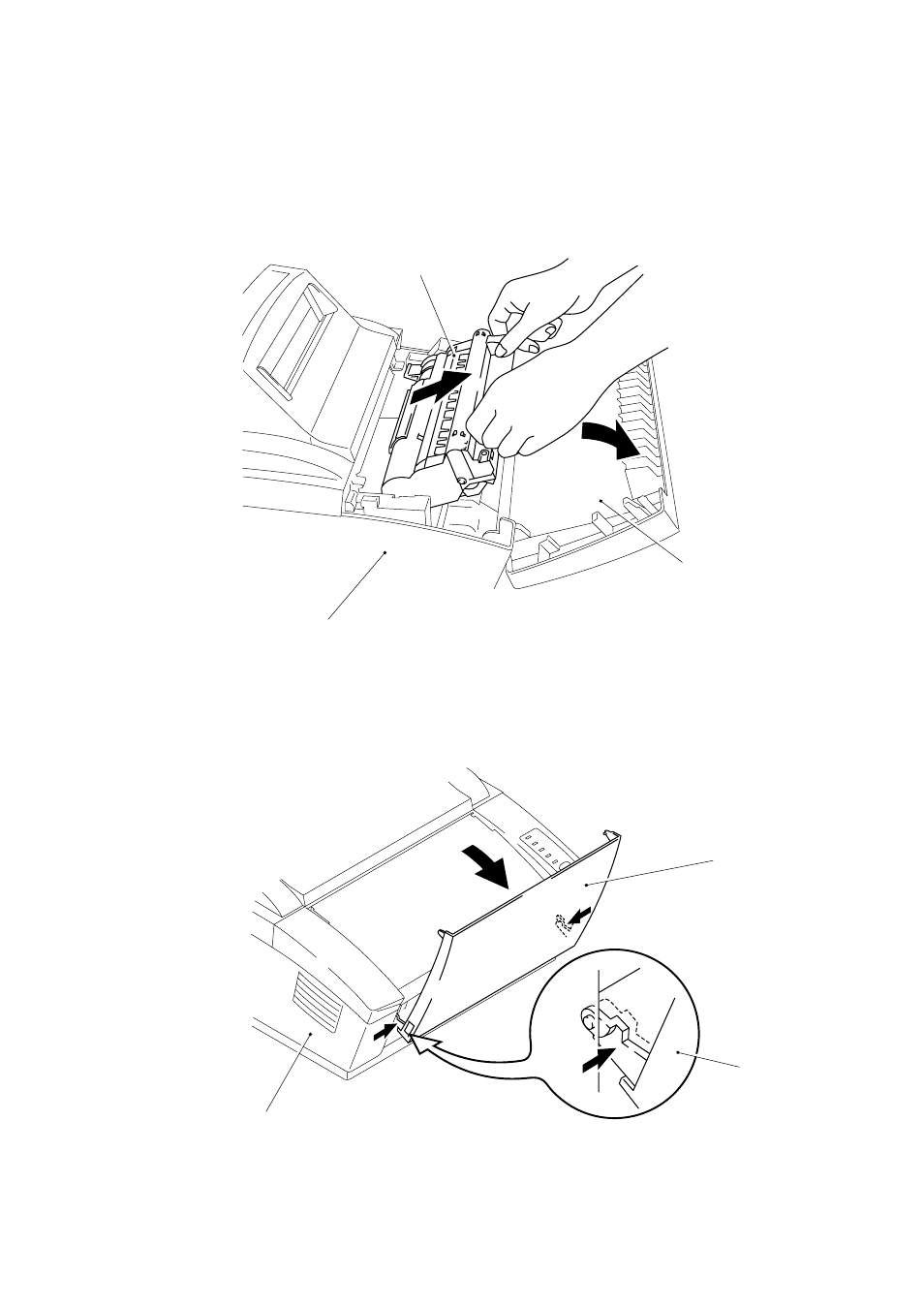

Fig. 3.1
3.2
Output Tray ASSY
(1)
Press the hinges at the left and right ends of the output tray inwards to release the
output tray from the main cover.
Fig. 3.2
Drum unit
Top cover
Main cover
Main cover
Output tray
Output tray
