CHAPTER II -16
2. MECHANICS
2.1 Overview of Printing Mechanism

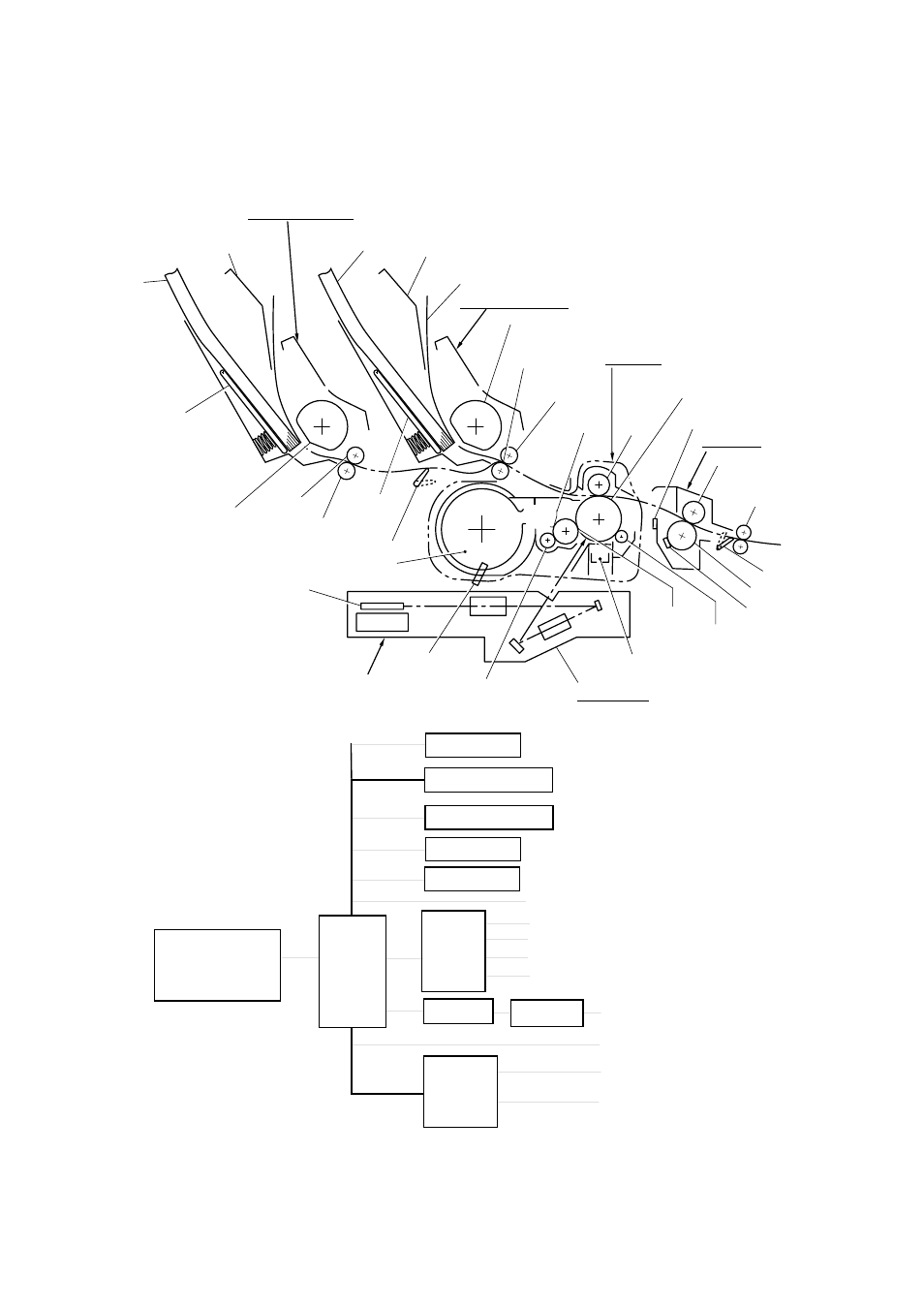

Fig. 2.17
EL PCB
Main Motor
Fan Motor
Toner
Empty
Sensor
PCB
High-
Voltage
Power
Supply
Primary Charger (Corona Wire)
Primary Charger (Grid)
Developer Roller
Transfer Roller
Toner Empty Sensor
SW Panel PCB
Scanner Unit
Solenoid Resist
Main Cotrol PCB
Driver
PCB
SR PCB Relay PCB Solenoid Bin
Thermistor (for Heat roller)
Thermistor (for Tonner)
Fig. 2.18
MP Feeder 2 cover
Papers Multi-purpose Sheet Feeder 1
Manual Paper Path
Multi-purpose
Sheet Feeder 2
Papers
Hopper Plate
Paper Pick-up Roller
Pinch Roller
Paper Feed Roller
MP Feeder 1 Cover
Paper Pick-up Roller
Paper Feed
Roller
Pitch Roller
Drum Unit
Blade
Photosensitive Drum
Transfer
Roller
Erase Lamp
Fixing Unit
Pressure Roller
Eject Roller Hopper
Plate
Registration Sensor Lever
Toner Cartridge
Polygon Mirror
Laser Scanner
Toner
Empty
Sensor
Supply Roller
Scanner Unit
Corona Wire
Developm
ent Roller
Cleaning Roller
Eject Sensor
Actuator
Heat Roller
Thermistor
