III-13
Note: Follow instructions below when installing the cleaner ASSY HR.
• Put the cleaner ASSY HR on the heat roller.
• Rotate the hook of the cleaner ASSY HR as shown in the figure to fit it into the
fixing unit frame.
• Insert the cleaner lock into the fixing unit frame.
,
,,
,,,, ,,
,,
,,,, ,, ,

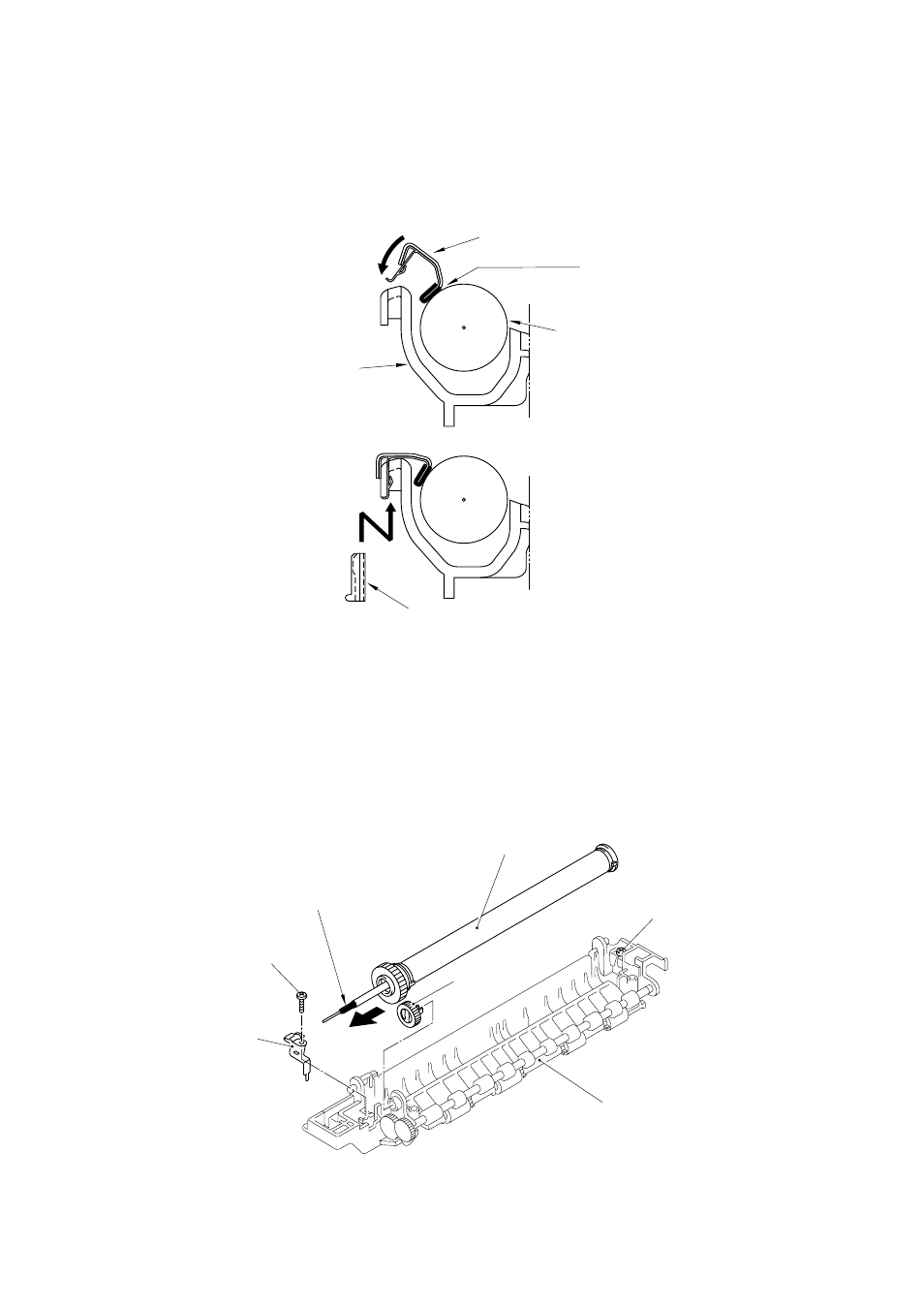

Fig. 3.19
(13) Remove the bind B tight 3 x 10 screw securing the connector plate.
(14) Remove the connector plate from the fixing unit frame and loosen the other bind B
tight 3 x 10 screw securing the fixing unit cover.
(15) After removing the idle gear 16 from the fixing unit frame, the heat roller can be
removed. You can then remove the halogen heater lamp from the heat roller.
Note: Never touch the surface of the halogen heater lamp.
Fig. 3.20
Cleaner ASSY HR
Put the cleaner ASSY HR on
the heat roller and rotate it in this
direction to fit it into the hole.
Heat roller
Fixing unit frame
Cleaner lock
Halogen heater lamp
(Blue 100V, Red 200V)
Heat roller
Bind B tight M3x10
Connector plate
Bind B tight M3x10
Fixing unit frame
Idle gear 16
