III-17

Note:

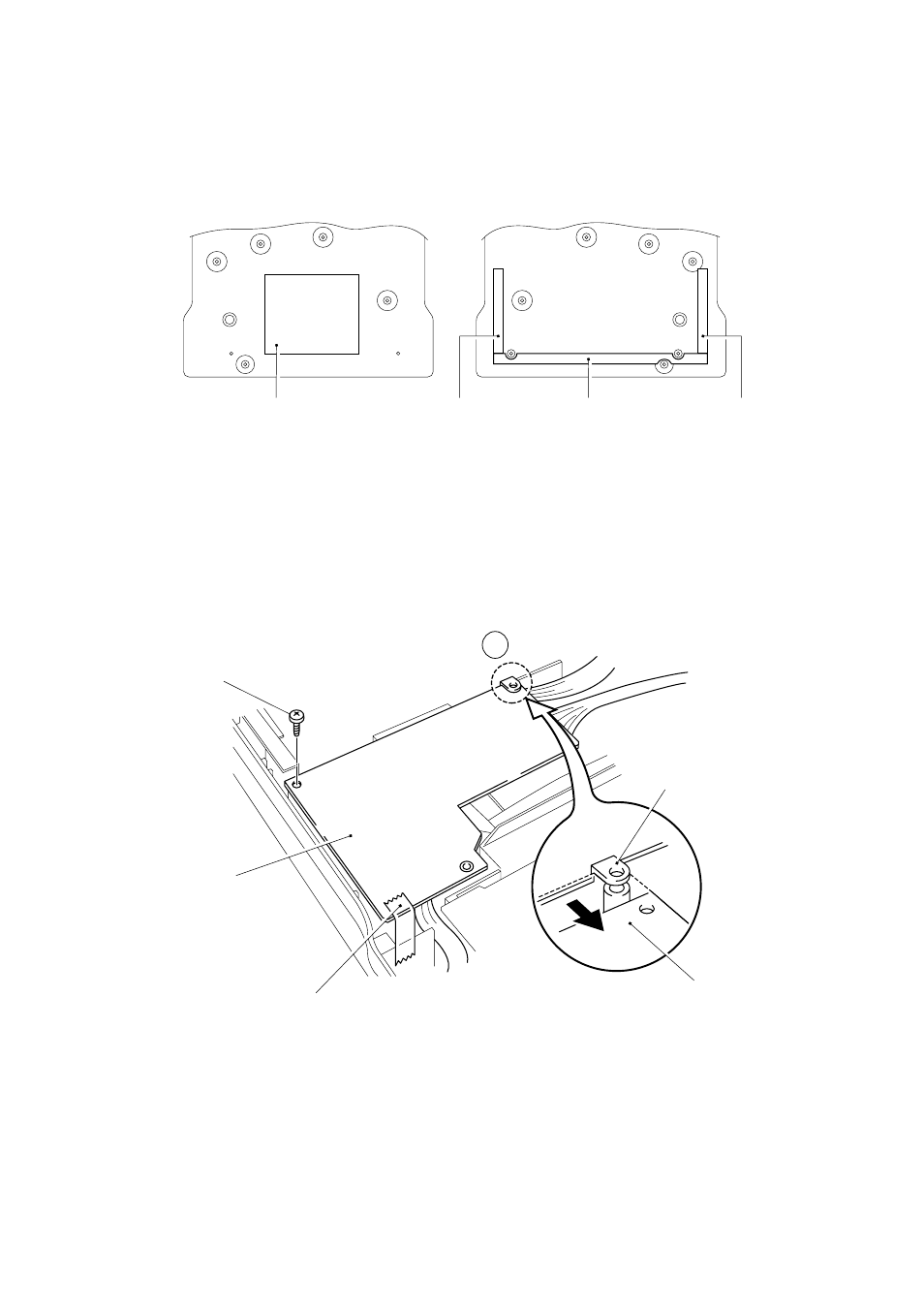

See the Fig. 3.26 about the position installing the dumping material and the
soundproof sponge A,B.

Fig. 3.26

3.12

Driver PCB ASSY

(1)

Remove the screw securing the driver PCB ASSY. (Slide the PCB A from
underneath the main shield.)

Fig. 3.27

Screw

Driver PCB ASSY

Main shield

Driver PCB ASSY

Insulation tape

A

Dumping material

Soundproof
sponge A

Soundproof
sponge B

Soundproof
sponge A
