3-6-3.Rate Limiters
Function name:
Rate Limit Configuration
Function description:
Each port includes an ingress policer, and an egress shaper, which can limit
the bandwidth of received and transmitted frames. Ingress policer or egress
shaper operation is controlled per port in the Rate Limit Configuration.
Parameter description:
Port #:
Port number.
Policer Enabled:

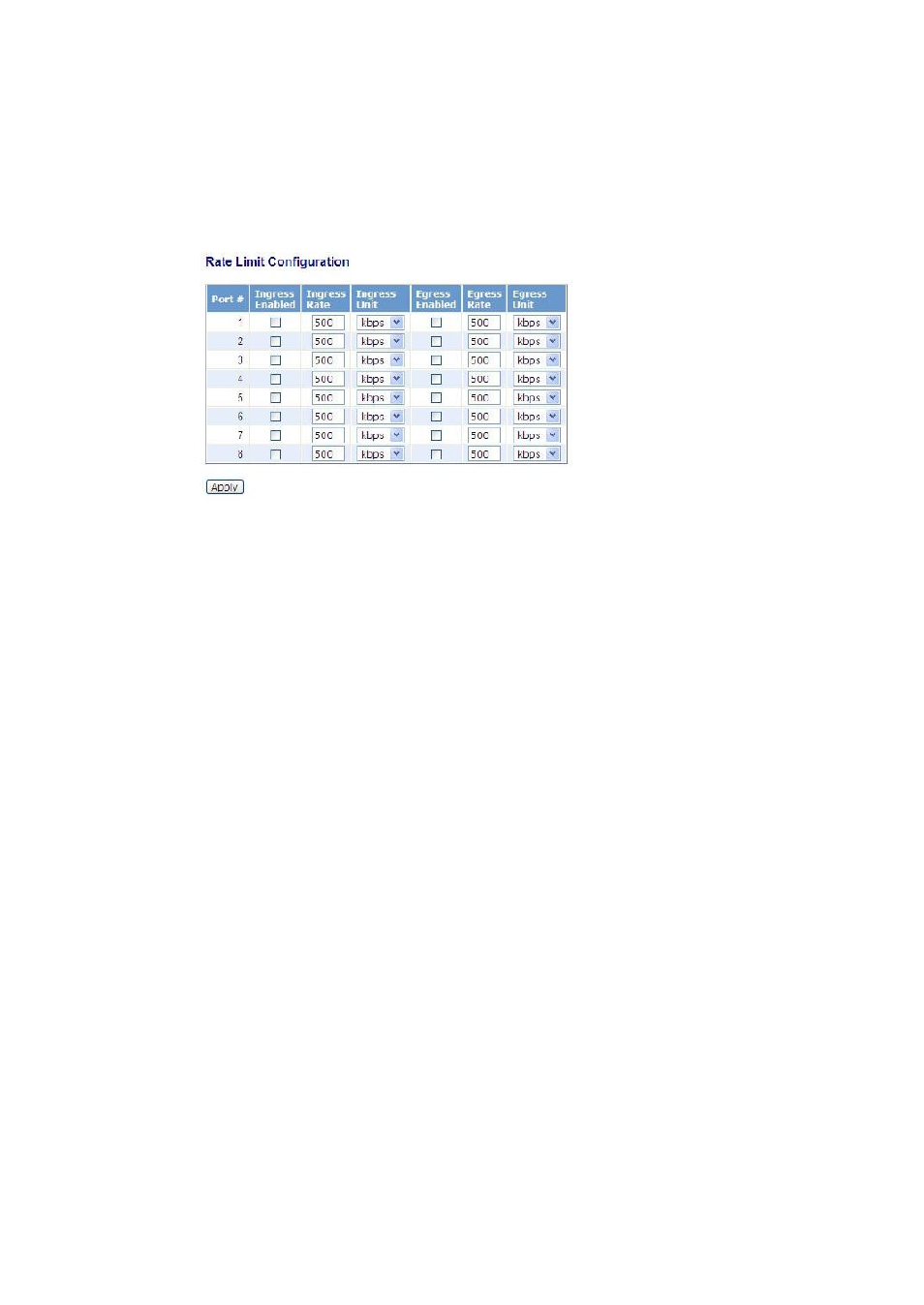

Fig. 3-43
Policer enabled to limit ingress bandwidth by policer rate.
Policer Rate:
The configurable policer rate range:
500 Kbps ~ 1000000 Kbps
1 Mbps ~ 1000 Mbps
Policer Unit:
There are two units for ingress policer rate limit: kbps / Mbps
Shaper Enabled:
Shaper enabled to limit egress bandwidth by shaper rate.
Shaper Rate:
The configurable shaper rate range:
500 Kbps ~ 1000000 Kbps
1 Mbps ~ 1000 Mbps
Shaper Unit:
There are two units for egress shaper rate limit: kbps / Mbps
