SRM-121/SRM-150 LCD Monitor
Page 64
5.5.2 Cabinet and Rack Installation
The SRM series provides optional rack mount kits for industrial racks. To mount the SRM
series LCD monitor into a cabinet/rack, please follow the steps below.
Step 1:
The back of the metal frame surrounding the SRM series LCD monitor has
several retention screw holes for a rack mount kit. See Figure 1-7 and Figure
1-8.
Step 2:
Slide the monitor through the rack mount kit until the rear side of the monitor
frame is flushed against the front of the rack mount kit.
Step 3:
Make sure the retention screw holes at the rear of the monitor frame are aligned
with the retention screw holes in the rack mount kit.
Step 4:
Secure the rack mount kit to the monitor by inserting and tightening the retention
screws (Figure 5-9).

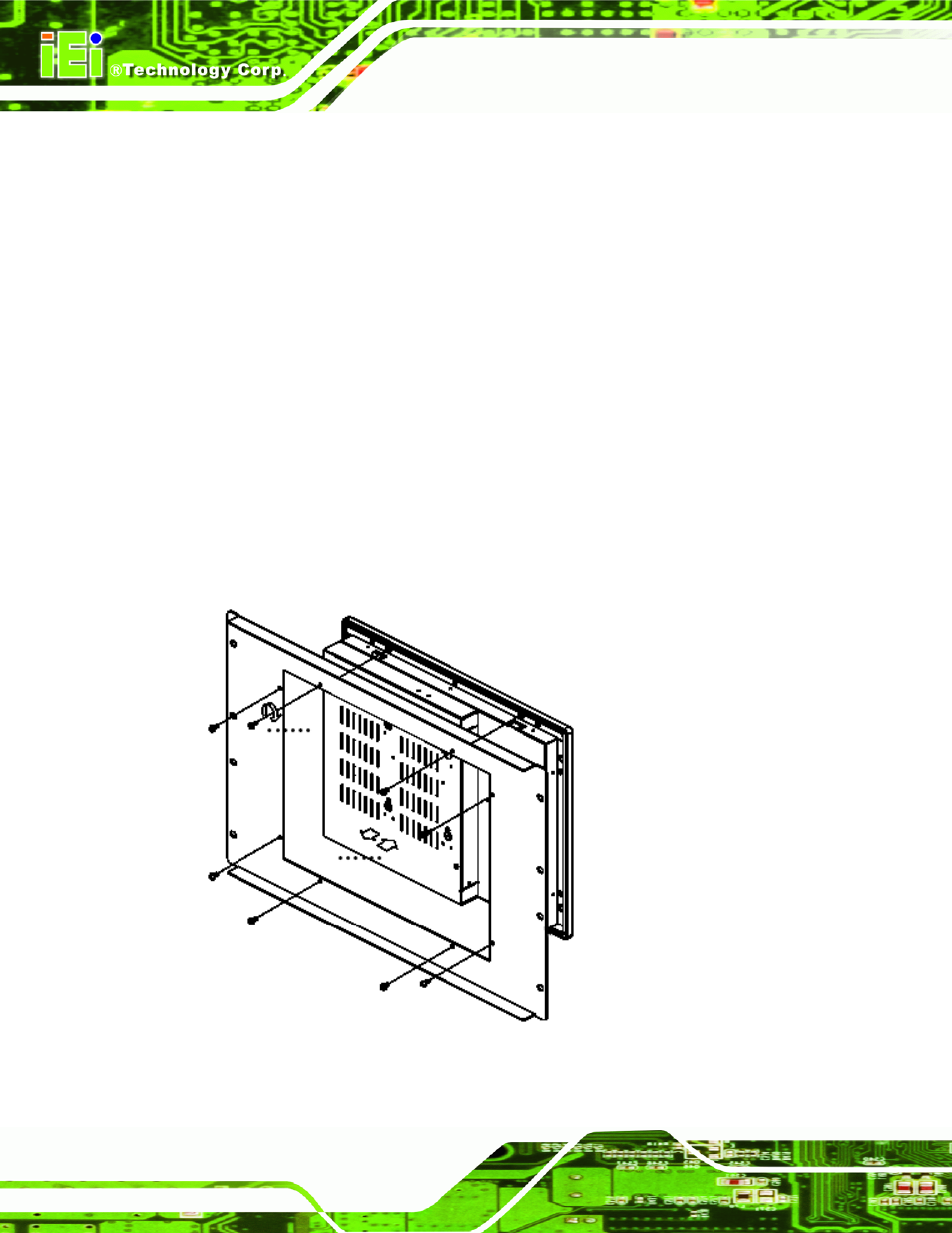

Figure 5-9: Secure the Rack Mount Kit
