SRM-121/SRM-150 LCD Monitor
Page 43
4.2.6 Power Output Connector
CN Label: CN12, CN13
CN Type: 2-pin wafer connector
CN Pinouts: See Table 4-9 and Table 4-10
CN Location: See Figure 4-8
The AV-5300 supports two power output connectors, one for 12V and the other for 5V.
PIN DESCRIPTION
1 +12V
2 GND
Table 4-9: Power Output Connector Pinouts (CN12)
PIN DESCRIPTION
1 +5V
2 GND
Table 4-10: Power Output Connector Pinouts (CN13)

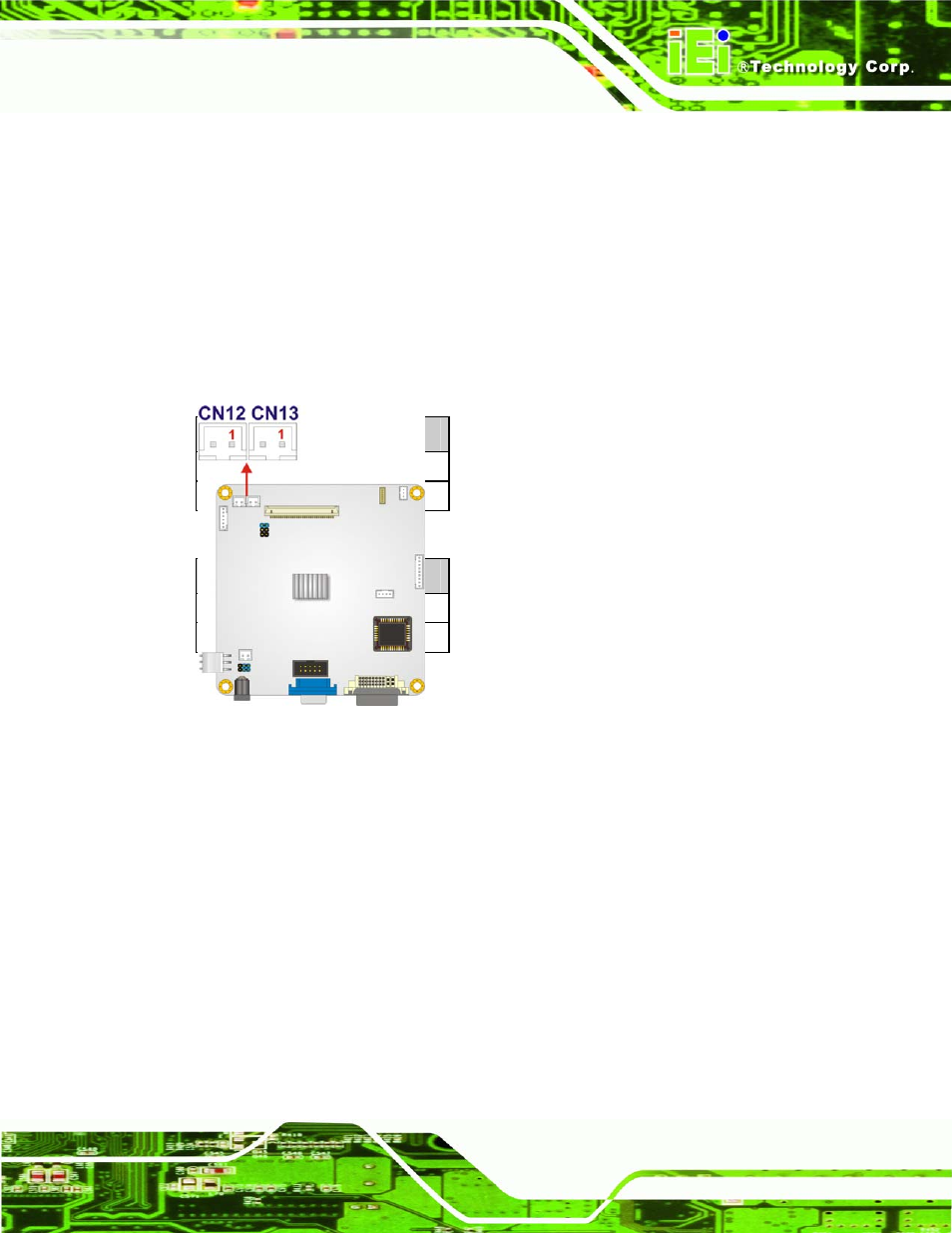

Figure 4-8: Power Output Connector Locations
4.2.7 Power Input Connector
CN Label: CN24, CN25
CN Type: 2-pin wafer connector, 3-pin wafer connector
CN Pinouts: See Table 4-11 and Table 4-12
CN Location: See Figure 4-9
The AV-5300 supports two internal power input connectors.
