SRM-121/SRM-150 LCD Monitor
Page 9
1.2.5 Side View
The rear panel shown in Figure 1-6 has the following interfaces. See Section 2.3 for the
connector locations.
1 x RS-232 connector touch panel interface
1 x 9~36V DC terminal block
1 x 12V DC input connector
1 x VGA connector
1 x DVI-D connector

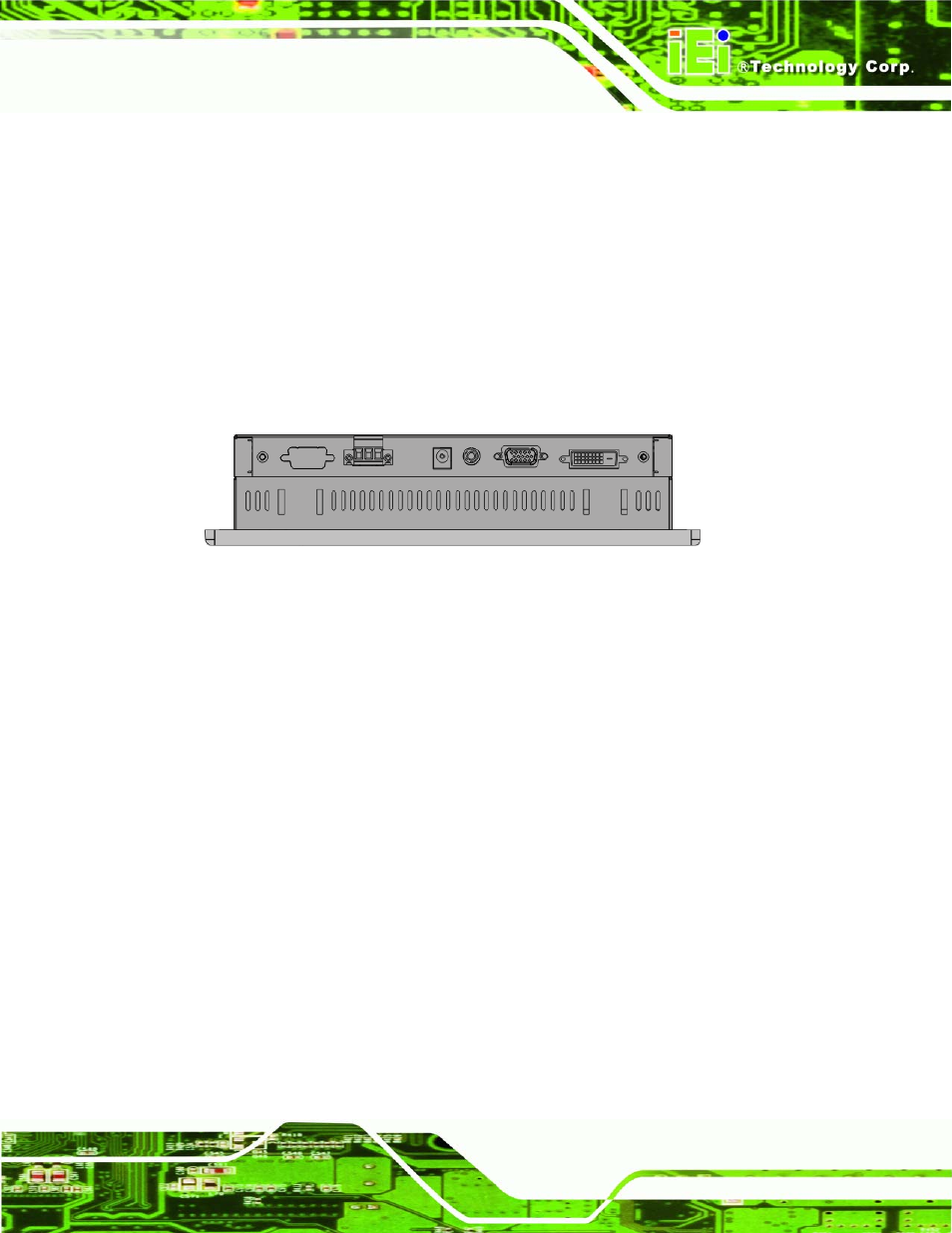

Figure 1-6: Side View
