SRM-121/SRM-150 LCD Monitor
Page 50
4.4.3 DVI-D Connector
CN Label:
J2
CN Type:
D-sub DVI female connector
CN Pinouts:
See Table 4-18 and Figure 4-15
CN Location:
The 24-pin female dual link digital only DVI [Digital Visual Interface] connector is a
standard for high-speed, high-resolution digital displays. Use the DVI-D connector to
connect the LCD to a system.
PIN
DESCRIPTION
PIN
DESCRIPTION
1 RX2-
2 RX2+
3 GND
4 NC
5 NC
6 DVI-SCL
7 DVI-SDA
8 NC
9 RX1-
10
RX1+
11 GND
12 NC
13 NC
14 DVI-5V
15 GND
16 HOT-PLUG
17 RX0-
18 RX0+
19 GND
20 NC
21 NC
22 GND
23 RXC+
24 RXC-

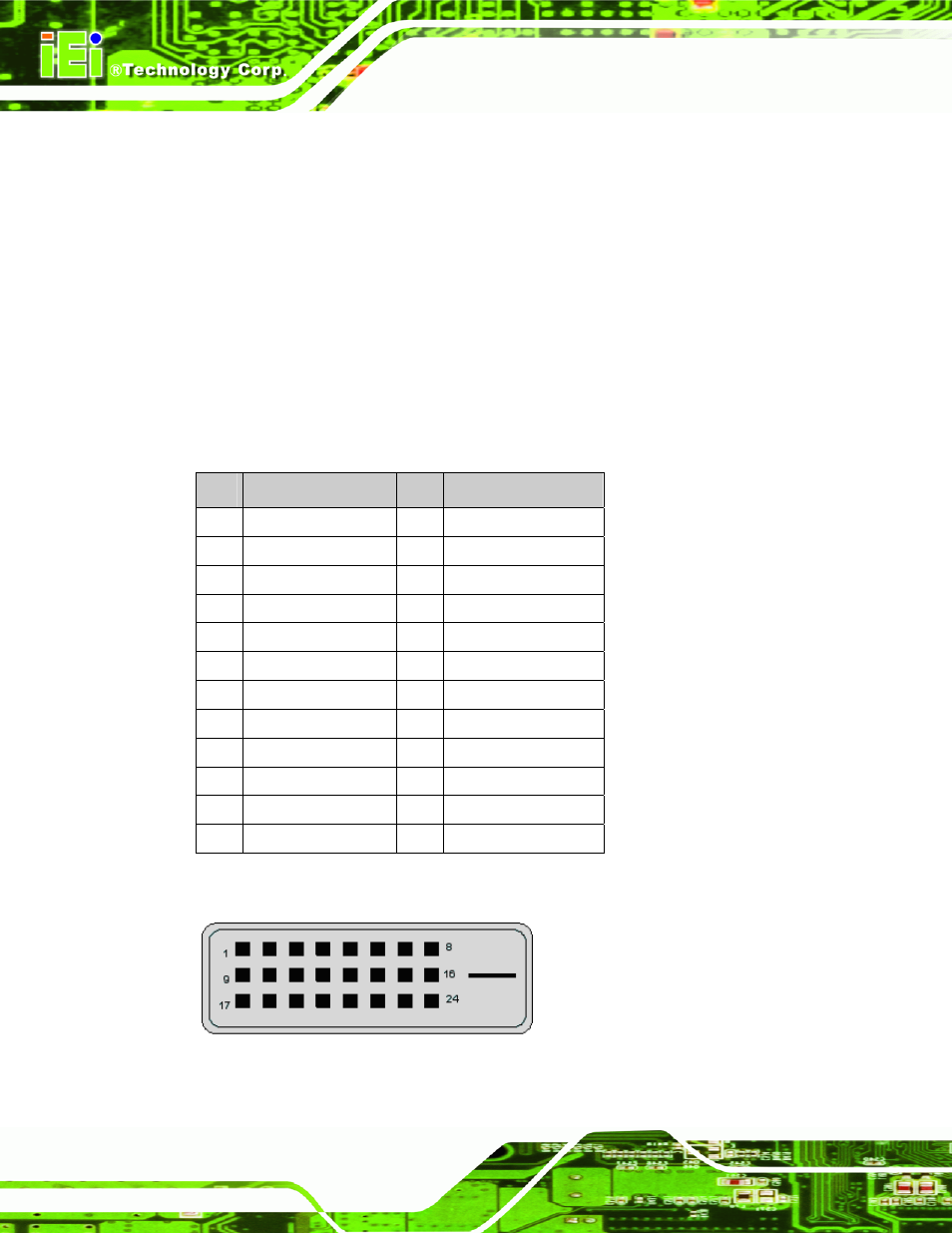

Table 4-18: DVI-D Connector Pinouts
Figure 4-15: DVI-D Connector Pinout Locations
