SRM-121/SRM-150 LCD Monitor
Page 6
1.2.1 Front View
The front of the SRM series industrial monitor is a flat panel TFT LCD screen surrounded
by an aluminum frame. A control button panel (OSD) is located vertically on the right side
of the frame with the following control buttons:
LCD On/Off
Auto
Left
Right
Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto
-dimming LED.

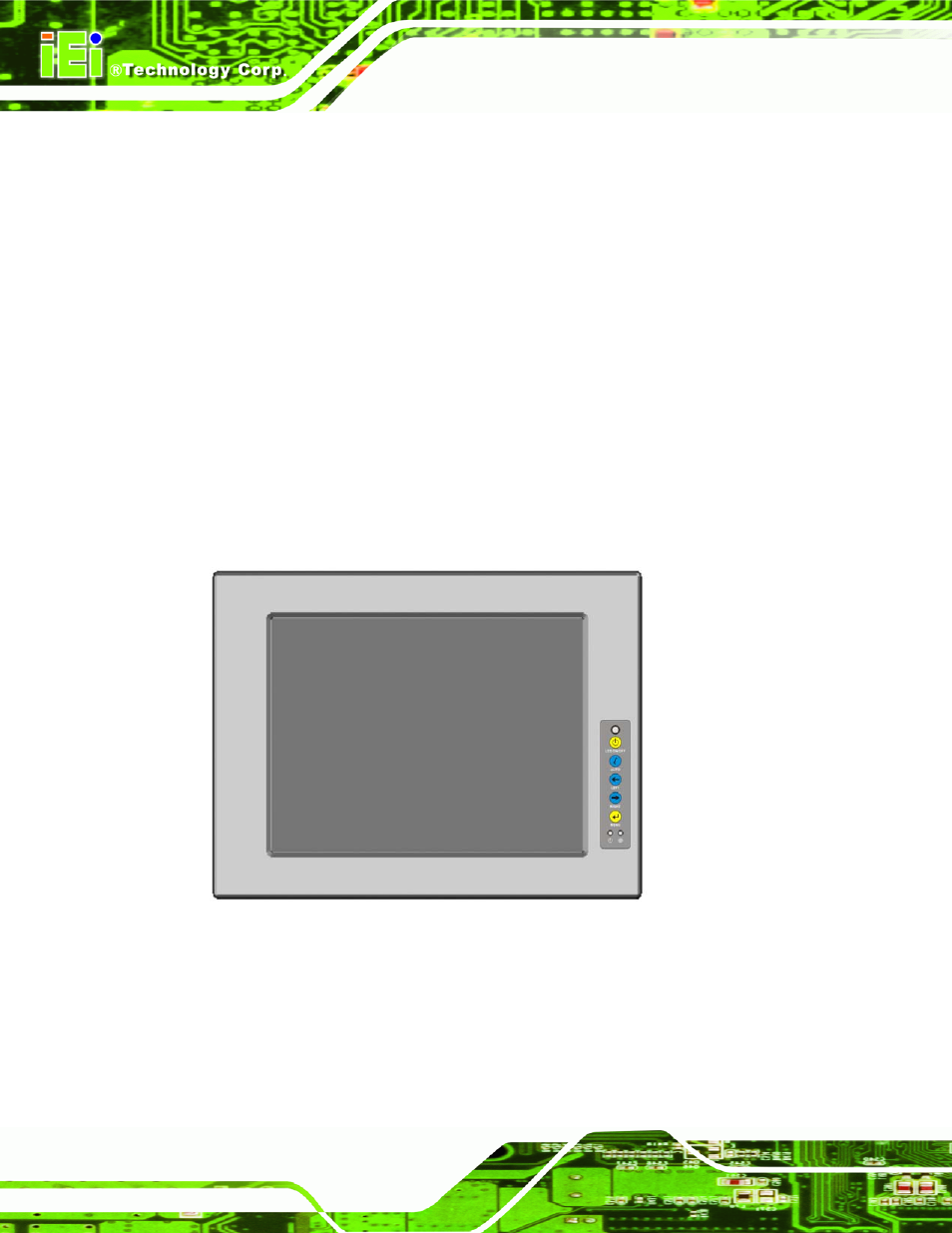

Figure 1-2 shows the LCD monitor front view of SRM-121 and SRM-150.
Figure 1-2: Front View
