SRM-121/SRM-150 LCD Monitor
Page 14
2.1 Introduction
This chapter describes the general mechanical overview of the SRM series monitors
including front and rear panel, available interfaces and overall dimensions.
2.2 Front Panel
The front panel of the SRM series industrial monitor is comprised of a TFT LCD in an
aluminum frame with an OSD control panel. Figure 2-1 shows the front panel of the SRM
series.

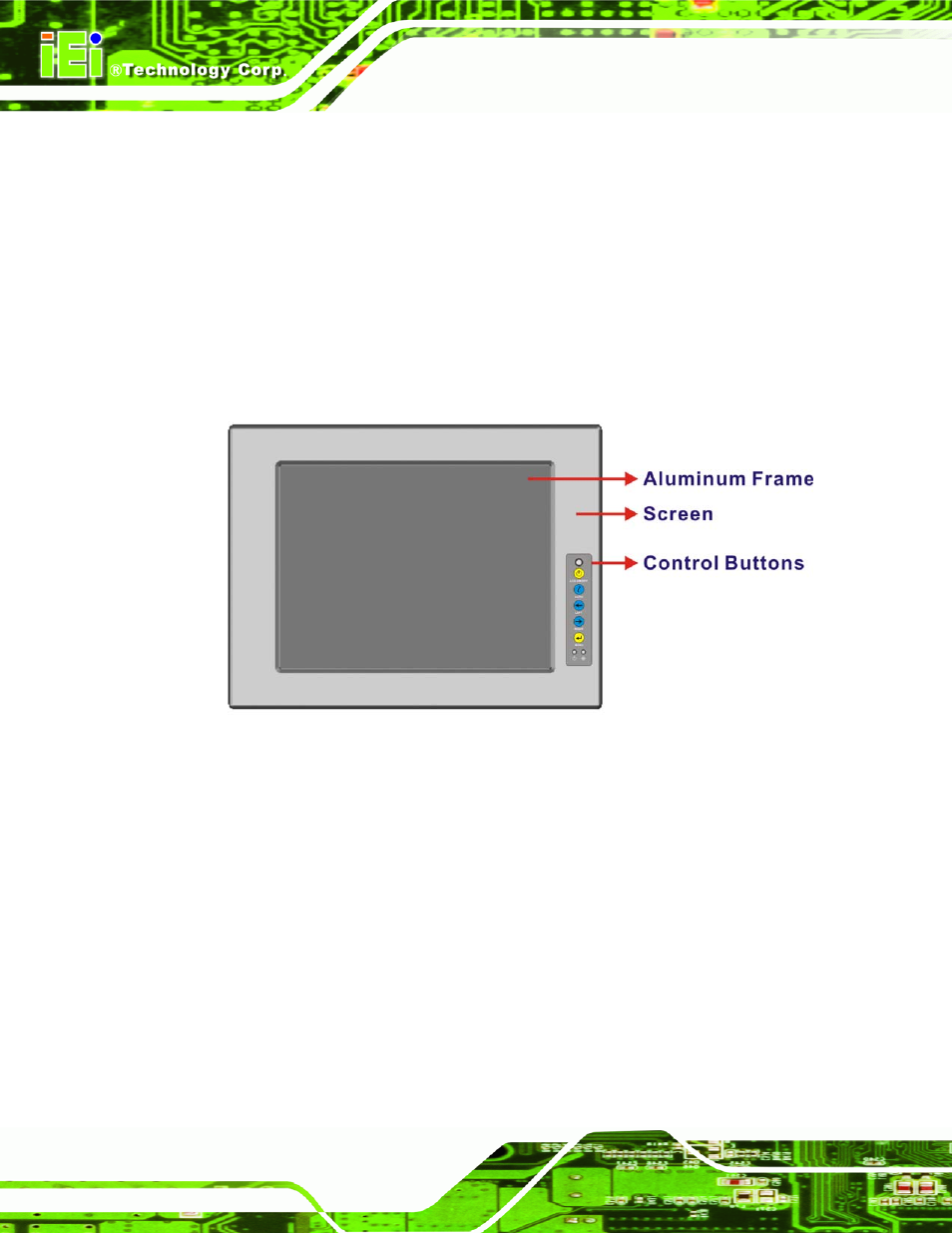

Figure 2-1: Front Panel
