SRM-121/SRM-150 LCD Monitor
Page 58
5.4.3 DVI-D Connector
Use the rear panel standard 24-pin female DVI-D connector to connect the monitor to the
system graphics interface. See Section 0 for the DVI-D connector location and pinouts.
5.4.4 12V Power Connector
Use the rear panel +12V DC jack to connect the monitor to a power source.

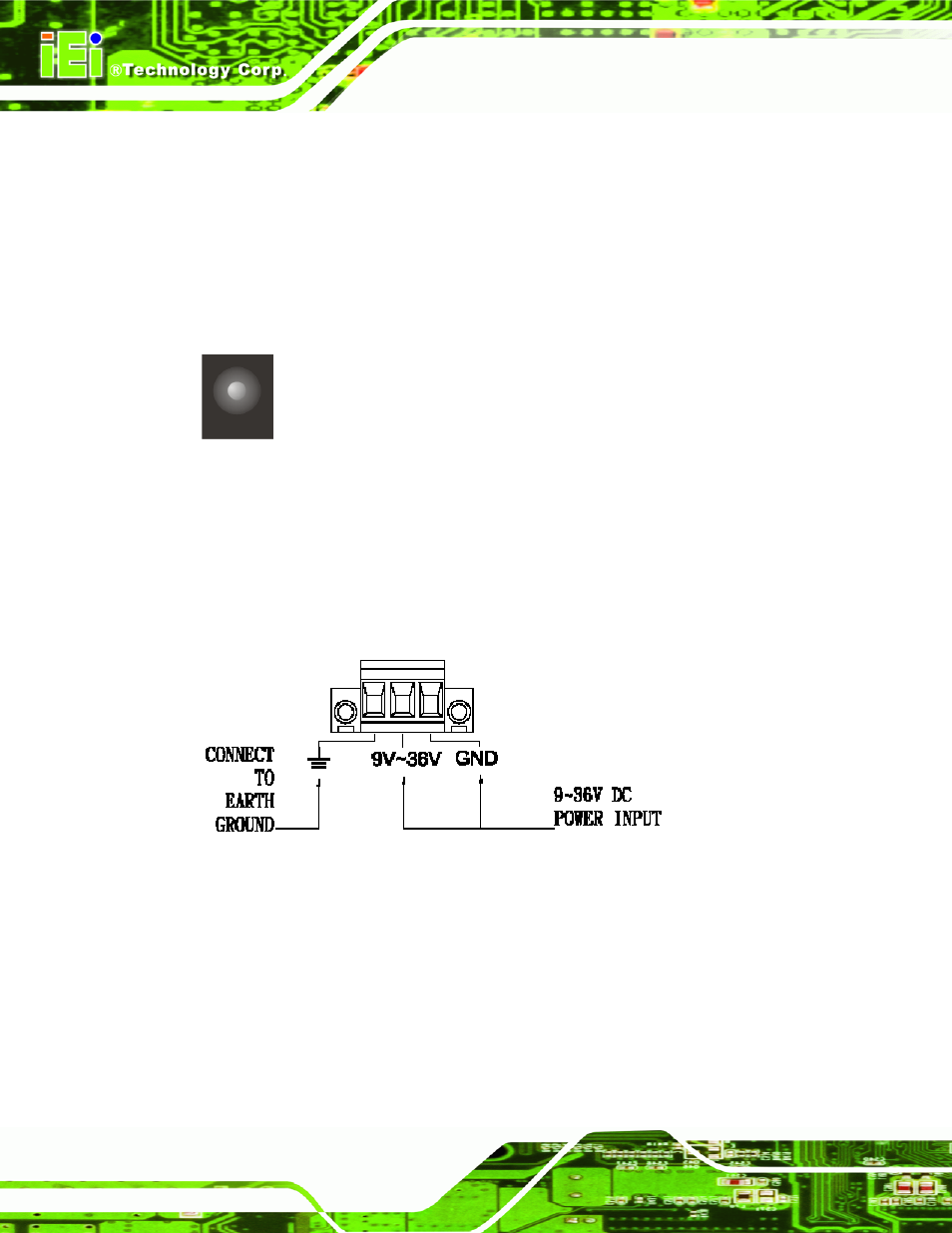

Figure 5-2: 12V Power Connector
5.4.5 DC Power Connector
Use the rear panel 3-pin terminal block DC power connector to connect the monitor to a
DC power source.
Figure 5-3: DC Power Connector
