2.3 Rear Panel
All peripheral device connectors are located on the rear panel of the SRM series industrial
monitor. The following rear panel connectors may be found on the SRM series. Figure 2-2
shows the location of the connectors.
12V power connector
9V ~ 36V terminal block
DVI-D connector
RS-232 serial connector
VGA connector

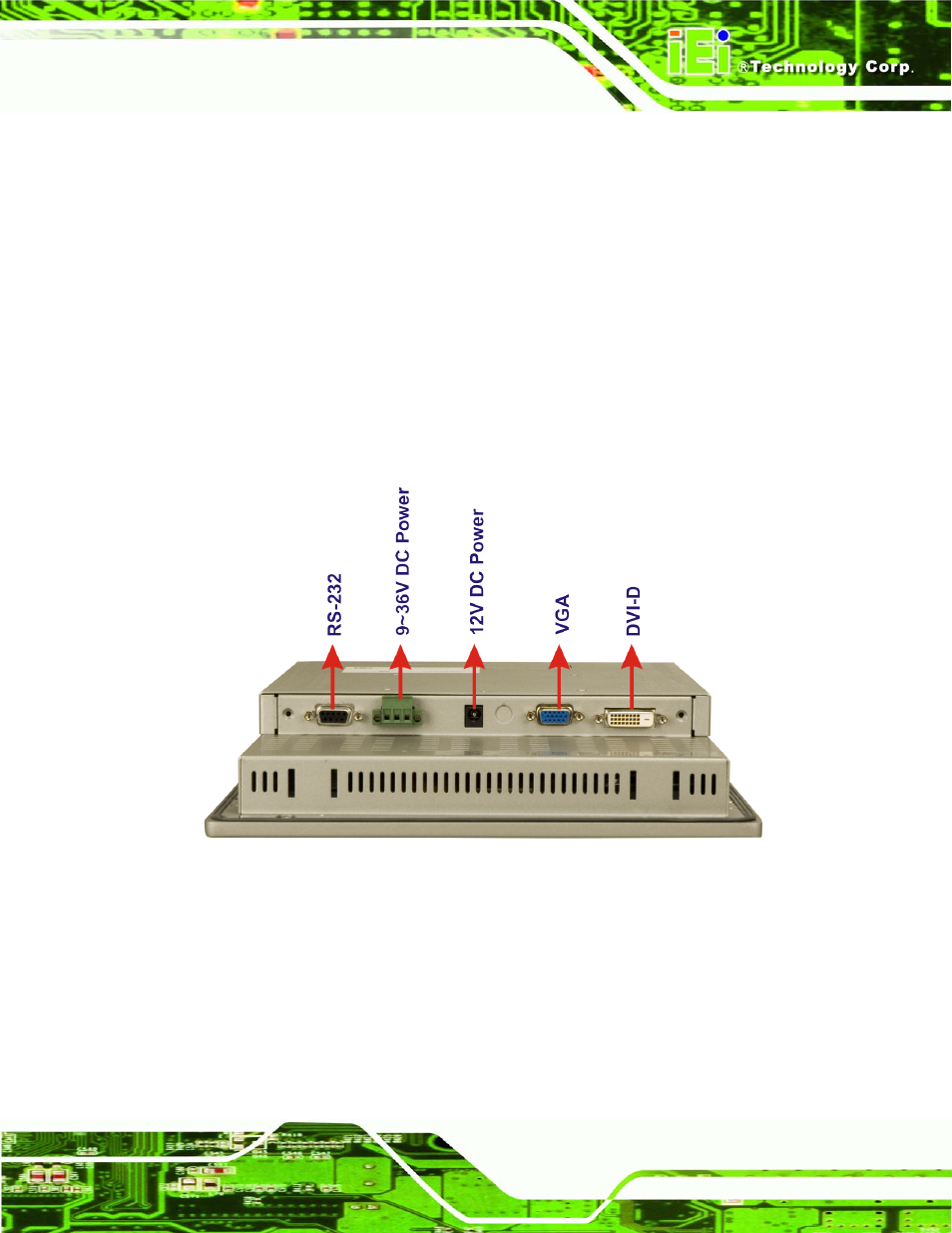

Figure 2-2: SRM Series Rear Panel Connector Locations
2.4 Physical Dimensions
The following sections describe the physical dimensions for the SRM-121, SRM-150 and
SRM-KIT industrial monitor.
