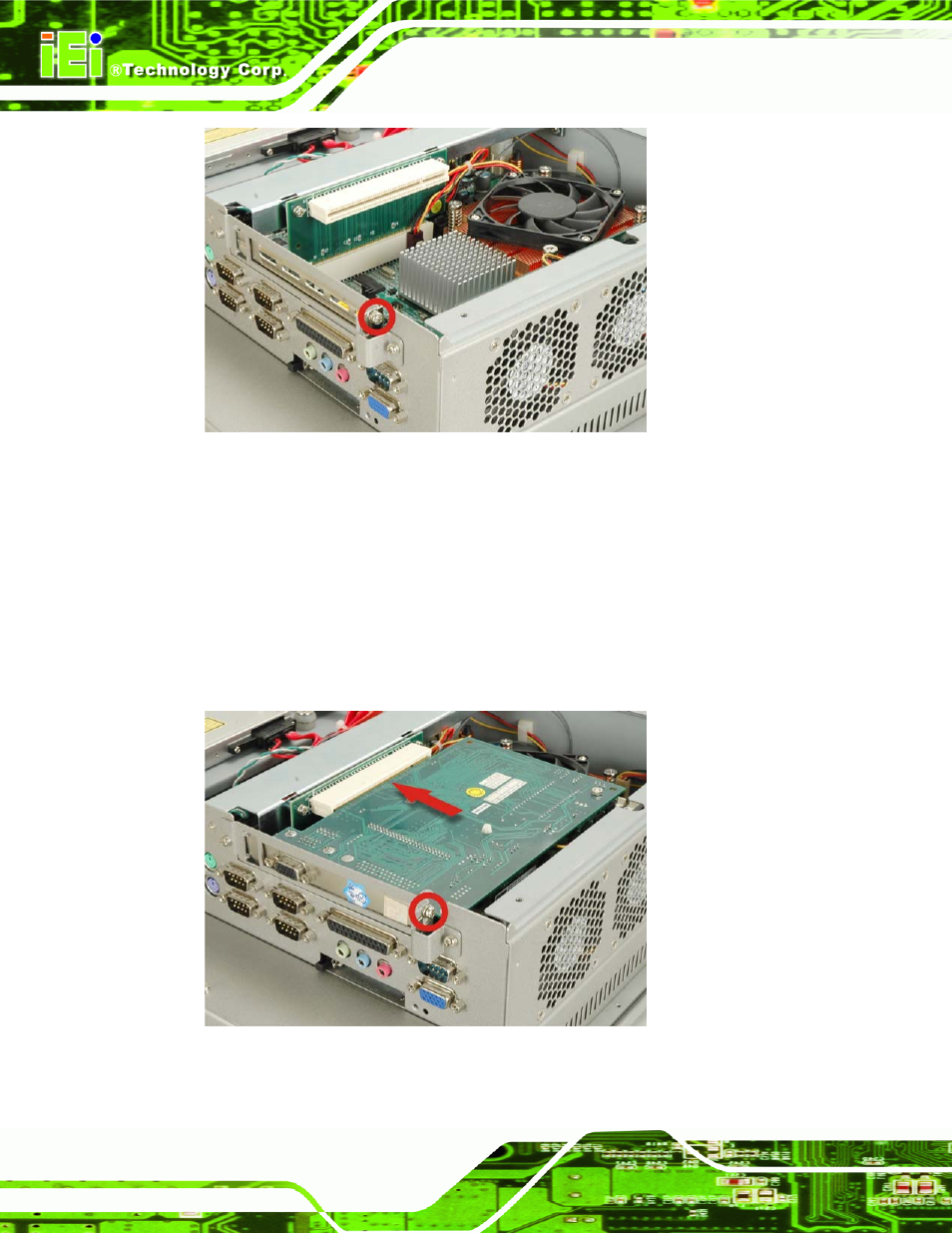

Figure 4-19: Expansion Slot Retention Screw

Step 4:

Insert the expansion card. Align the PCI expansion card edge connector with

the PCI expansion slot on the PCI riser card. Gently insert the PCI card into the

PCI expansion slot.

Step 5:

Secure the expansion card. Once the PCI card is correctly installed in the

system, reinsert the previously removed retention screw to secure the card to

the I/O interface panel.Step 0:

Figure 4-20: Install PCI Card
