1.2.2 Rear Panel

The rear panel has a fan vent, four VESA standard mounting holes and several retention

screw holes. The VESA mounting holes are circled in Figure 1-4.

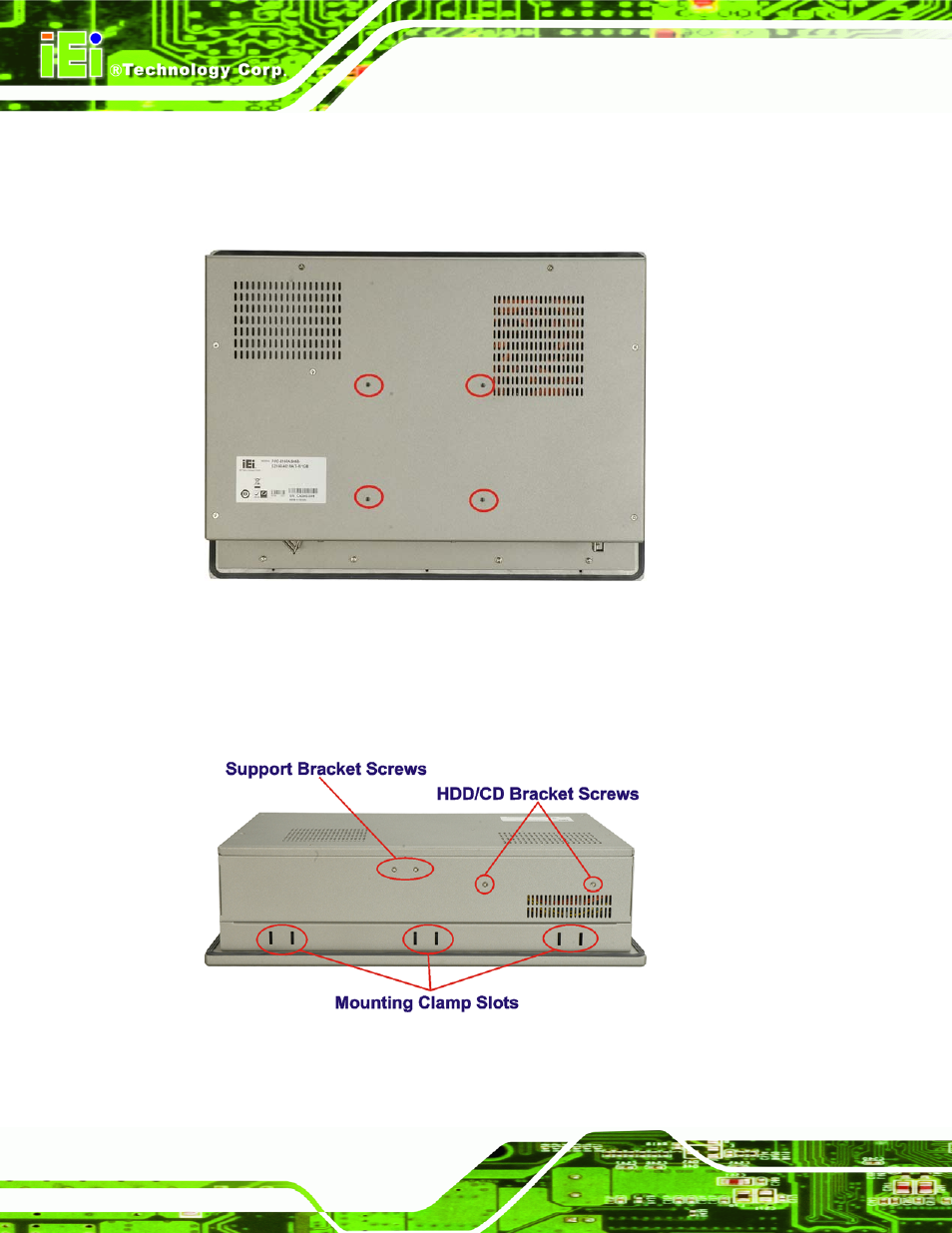

Figure 1-4: Rear View

1.2.3 Top Panel

The top panel has three sets of mounting clamp slot, fan vents and retention screws for

securing the drive bay bracket. The retention screws are circled in Figure 1-5 below.

Figure 1-5: Top View
