PPC-51xxA-G41/WIDS-51xA-G41 Panel PC

Page 40

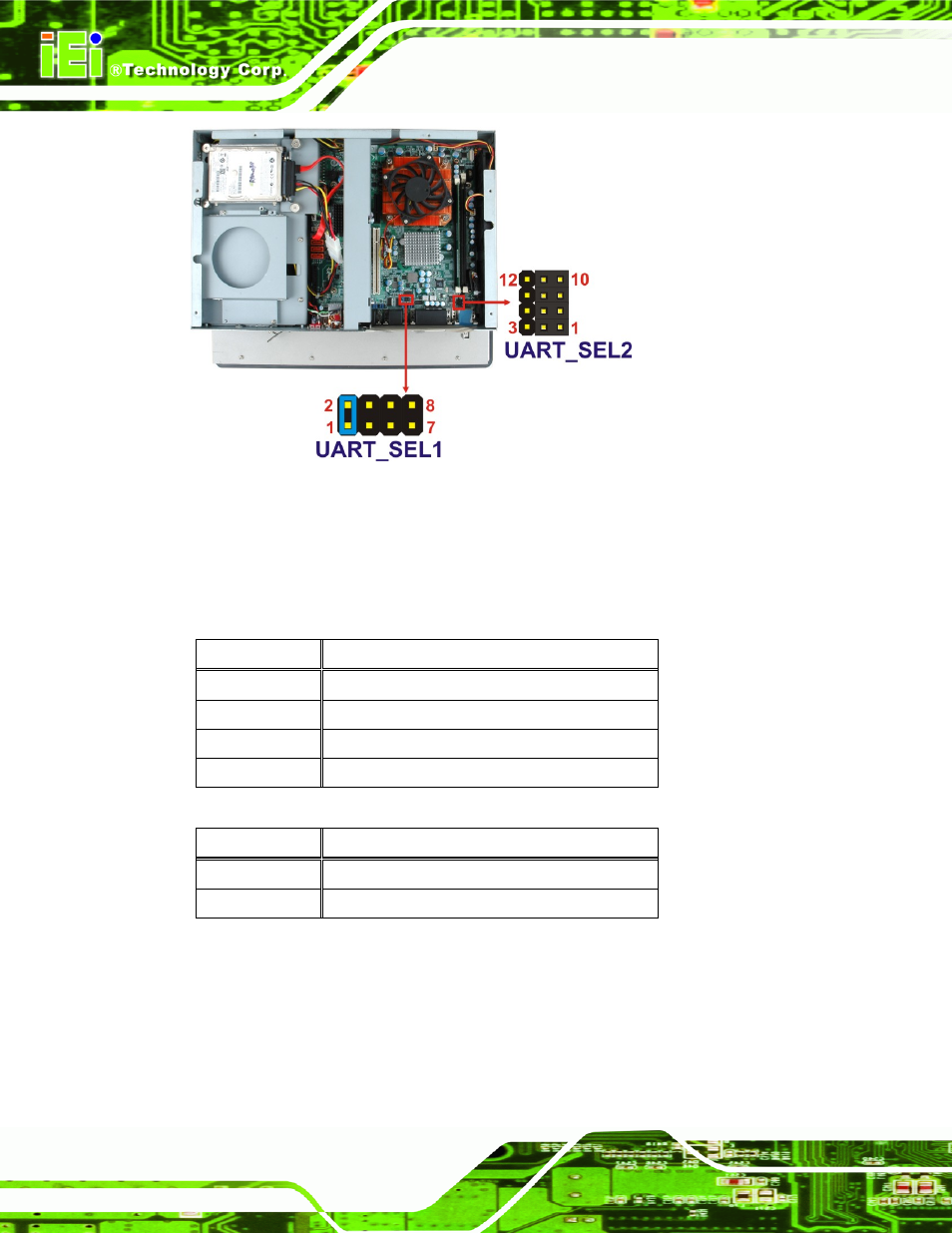

Figure 4-4: COM5 RS-232/422/485 Serial Port Select Jumper Location

4.5.5.1 COM 5 RS-422 and RS-485 Pinouts

The pinouts for RS-422 and RS-485 operation of external serial port COM 5 are detailed

below.

COM 5

RS-422 Description

Pin 1

TX-

Pin 2

TX+

Pin 6

RX-

Pin 7

RX+

Table 4-6: COM5 RS-422 Pinouts

COM 5

RS-485 Description

Pin 1

Data-

Pin 2

Data+

Table 4-7: COM5 RS-485 Pinouts
