1.2.4 Bottom Panel

The bottom panel shown in Figure 1-6 has the following interfaces:

1 x Power input connector

1 x Power switch

4 x USB connectors (six USB ports for PPC-5190A-G41)

1 x Reset button

2 x RJ-45 GbE connectors

1 x PS/2 mouse connector

1 x PS/2 keyboard connector

4 x RS-232 connectors (COM1, COM2, COM3 and COM4)

1 x RS-232/422/485 connector (COM5)

1 x PCI/PCIe x1 add-on card slot

1 x Parallel port connector

3 x Audio jacks

1 x VGA connector

1 x CompactFlash® slot

1 x AT/ATX switch

1 x USB switch (WIDS series only)

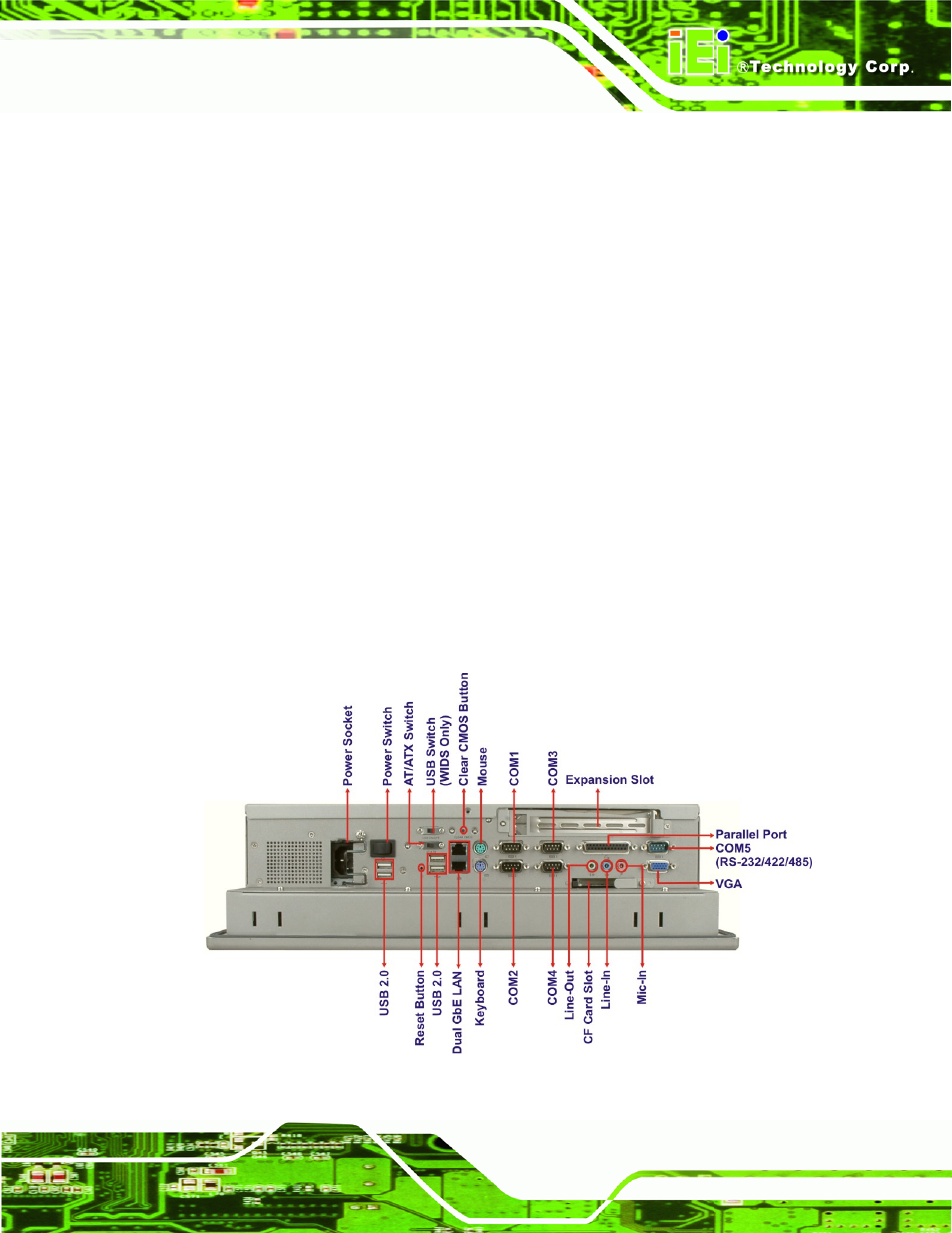

Figure 1-6: Bottom View
