Input internal circuit terminal arrangement, Wiring examples, Ardware – IDEC SX5L Series User Manual

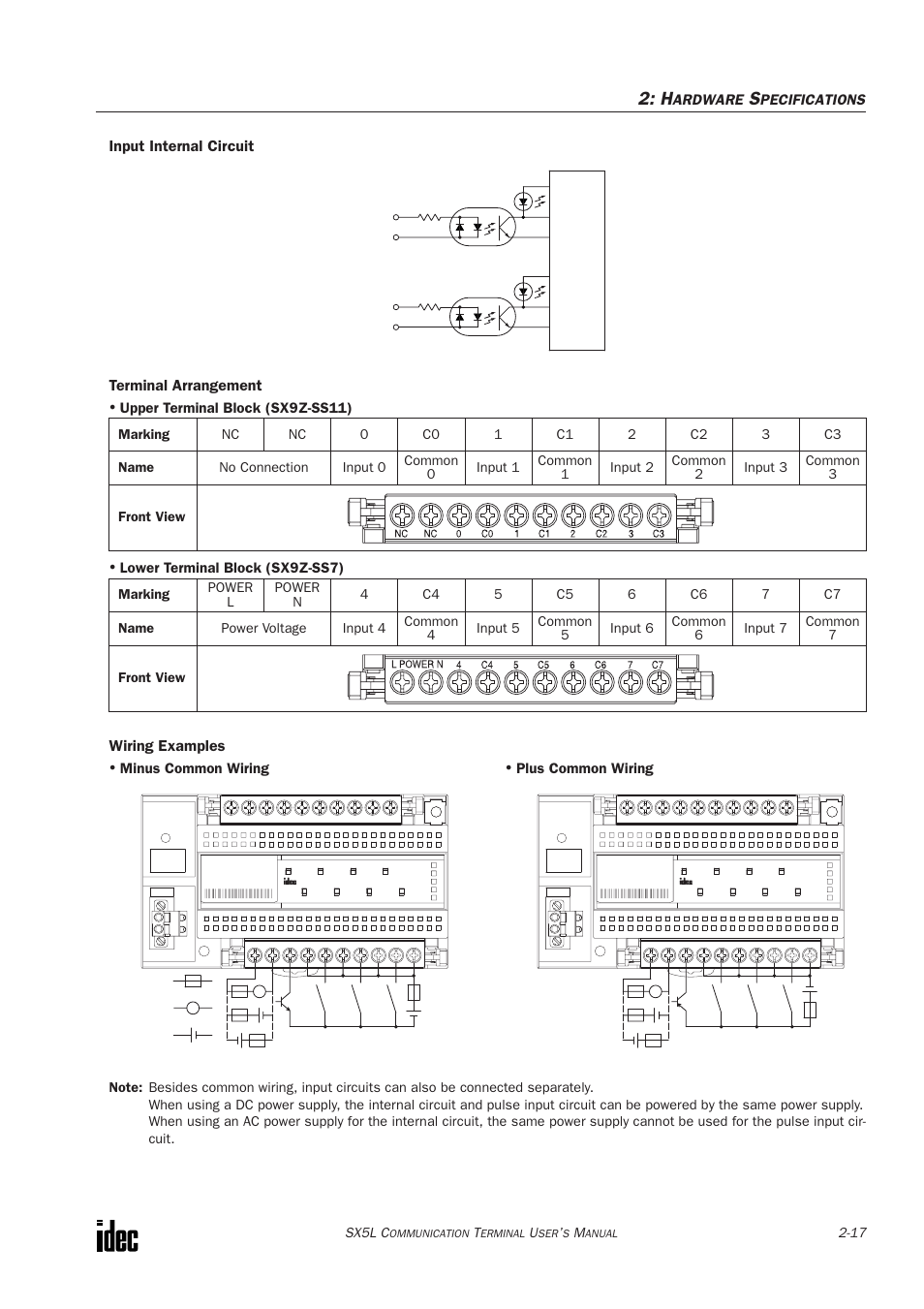

Page 28: Pecifications, Upper terminal block (sx9z-ss11), Lower terminal block (sx9z-ss7), Plus common wiring, Minus common wiring, Sx5l c

Input internal circuit terminal arrangement, Wiring examples, Ardware | Pecifications, Upper terminal block (sx9z-ss11), Lower terminal block (sx9z-ss7), Plus common wiring, Minus common wiring, Sx5l c | IDEC SX5L Series User Manual | Page 28 / 68 Input internal circuit terminal arrangement, Wiring examples, Ardware | Pecifications, Upper terminal block (sx9z-ss11), Lower terminal block (sx9z-ss7), Plus common wiring, Minus common wiring, Sx5l c | IDEC SX5L Series User Manual | Page 28 / 68
