Output internal circuit terminal arrangement, Wiring examples, Ardware – IDEC SX5L Series User Manual

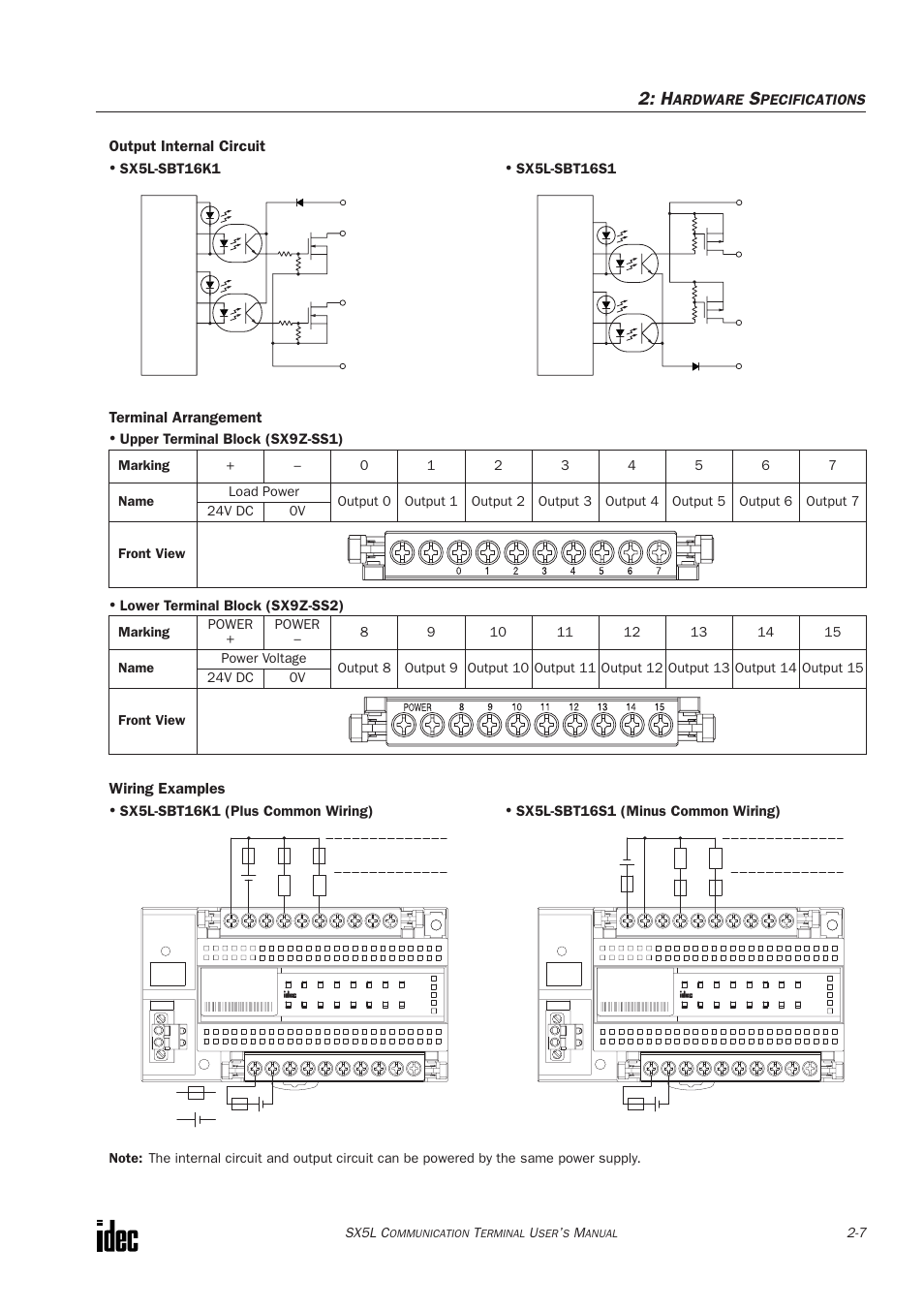

Page 18: Pecifications, Upper terminal block (sx9z-ss1), Lower terminal block (sx9z-ss2), Sx5l-sbt16s1, Sx5l-sbt16k1, Sx5l-sbt16s1 (minus common wiring), Sx5l-sbt16k1 (plus common wiring)

Text mode
Original mode

Output internal circuit terminal arrangement, Wiring examples, Ardware | Pecifications, Upper terminal block (sx9z-ss1), Lower terminal block (sx9z-ss2), Sx5l-sbt16s1, Sx5l-sbt16k1, Sx5l-sbt16s1 (minus common wiring), Sx5l-sbt16k1 (plus common wiring) | IDEC SX5L Series User Manual | Page 18 / 68
