[Pos Test]

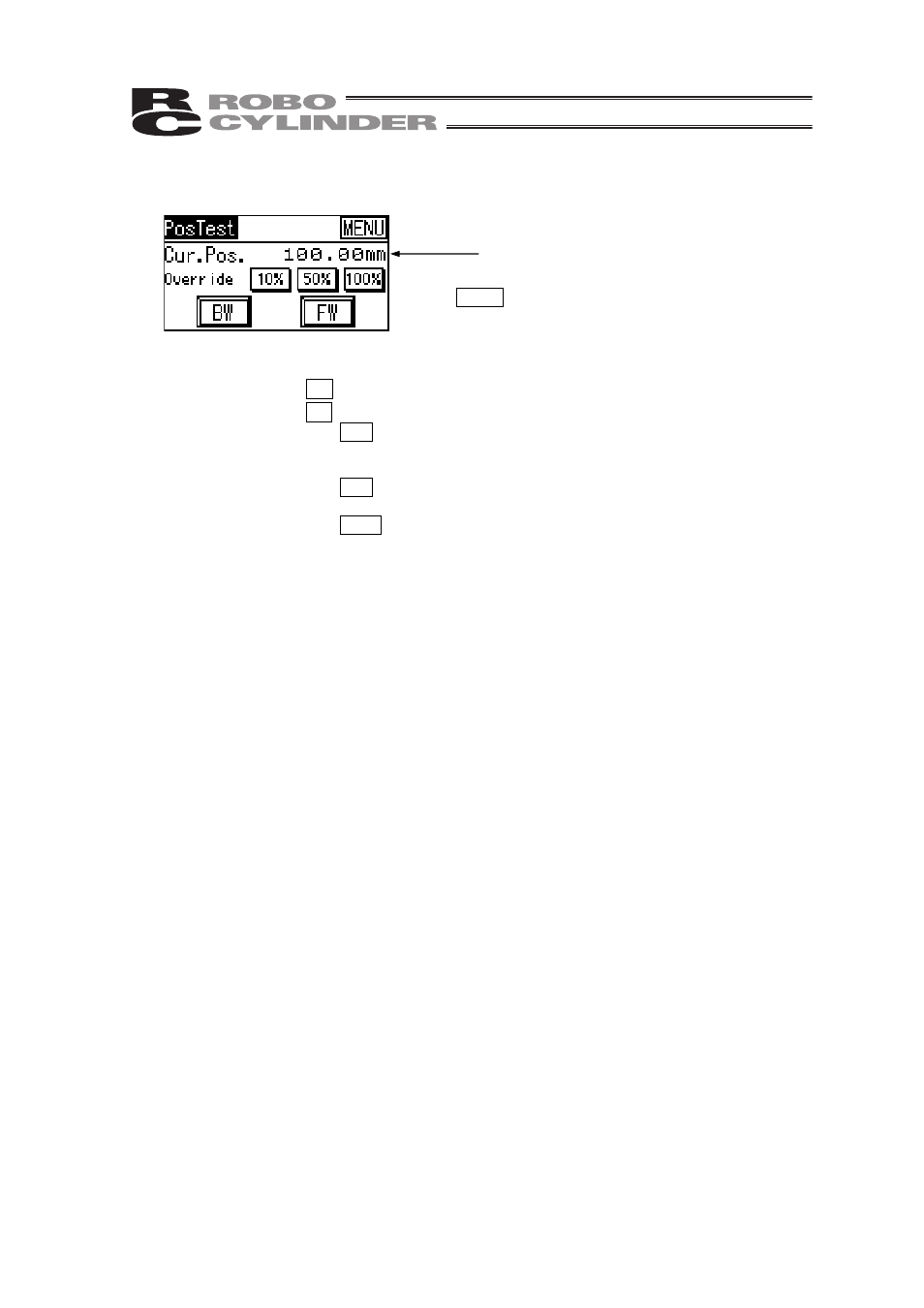

The operation procedure is described taking Operation Pattern as an example.
When MENU is touched, the SEP-PT MENU window is
returned.
x Backward : When BW is pressed, the actuator is moved backward.
x Forward : When FW is pressed, the actuator is moved forward.
x Override 10% : When 10% is touched, the actuator is moved at 10% of the speed set in
the “Target Position/Velocity” window in the “Position Setting” window. In
the first displayed window, the “10%” has been set.
x Override 50% : When 50% is touched, the actuator is moved at 50% of the speed set in
the “Target Position/Velocity” window in the “Position Setting” window.
x Override 100% : When 100% is touched, the actuator is moved at 100% of the speed set in
the “Target Position/Velocity” window in the “Position Setting” window.
The current position of the axis is shown.
