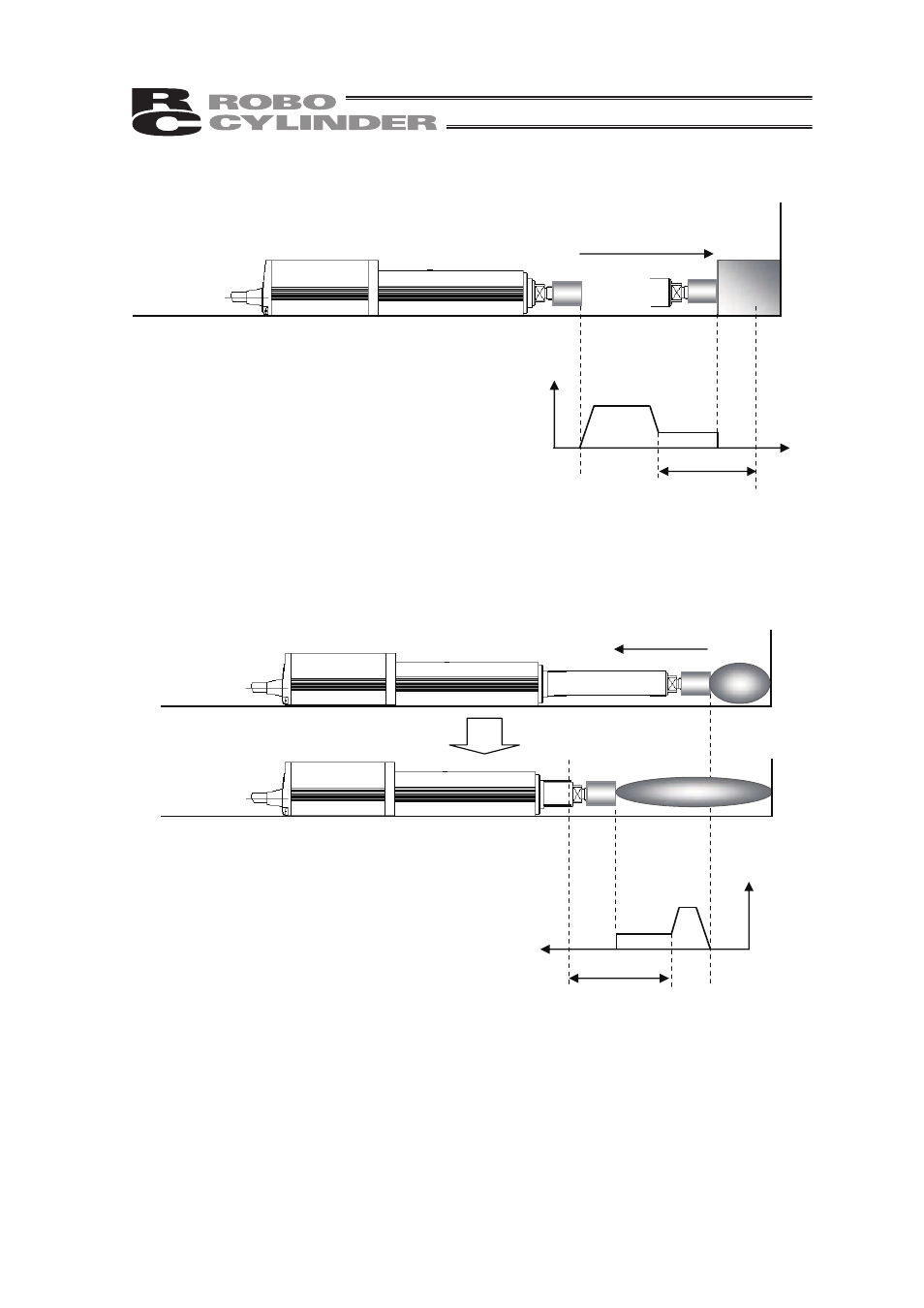

[Pressing to Forward Position or Intermediate Point]
[Pressing to Backward Position or Intermediate Point = Pulling]
Forward
Velocity
Time
Backward Position
Forward Position
(Intermediate Position)
Pressing Width
Pressing Complete
(Positioning complete
signal output)
Pressing
Forward Position
Velocity
Time
Backward
Pressing Complete
(Positioning complete
signal output)
Pressing Width
Pressing
Backward Position
Backward Position
(Intermediate Position)
Forward Position
