[Jog Operation]
(Jog Operation after the Home Return Operation Completion)
Touch the JOG.
Touching Tb1 returns to the Tb1 window.

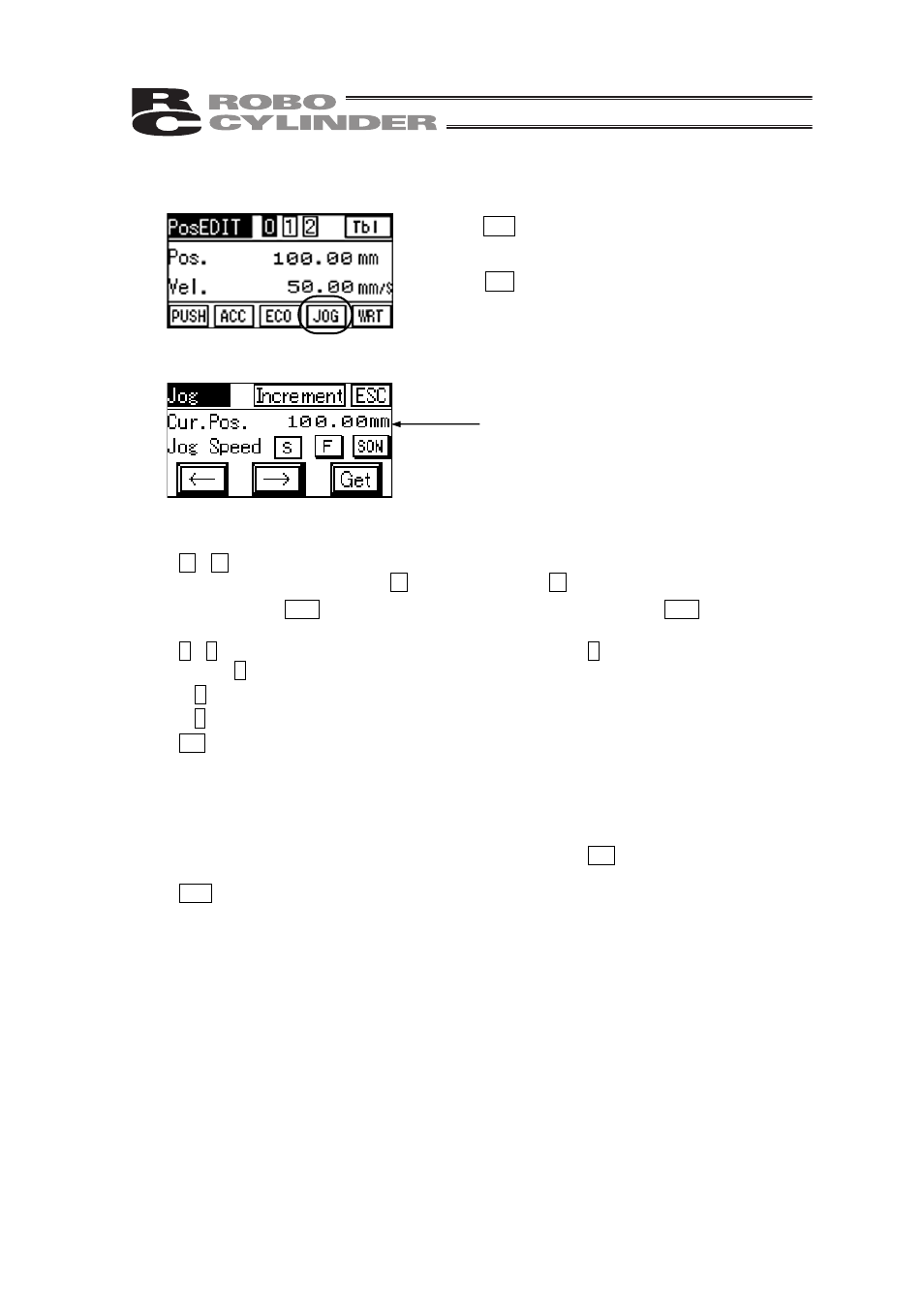

The “Jog” operation window will be displayed.
Operations in the “Jog” windowҏ
x ĸ ĺ ዖ While one of these buttons is pressed, the axis is jogged. Jog operation to
negative direction ĸ or positive direction ĺ.
x SON : Touch SON to turn the motor power supply (servo) on. Touch SON (display) to turn
the motor power supply (servo) off.
x S F : Using these buttons, the jog speed is set. Pressing S slows the jog movement and
F quickens the jog movement.
S speed : 10mm/sec
F speed : Speed set in the Jog Speed in the Parameter setting
x Get ዖ The current position is captured. The position value in the “Position/Velocity setting”
window in the Position Setting window is changed to the captured position value.
The conditions for capturing the current position are as follows.
x Home return completion
x In stop mode
x Current position value of “0” or more
When the conditions for capturing are satisfied and Get is touched, the current
position value is saved.
x ESCዖ Pressing this button returns to the “Position/Velocity setting” window in the Position
Setting window.
The current position of the axis is
shown.
