108

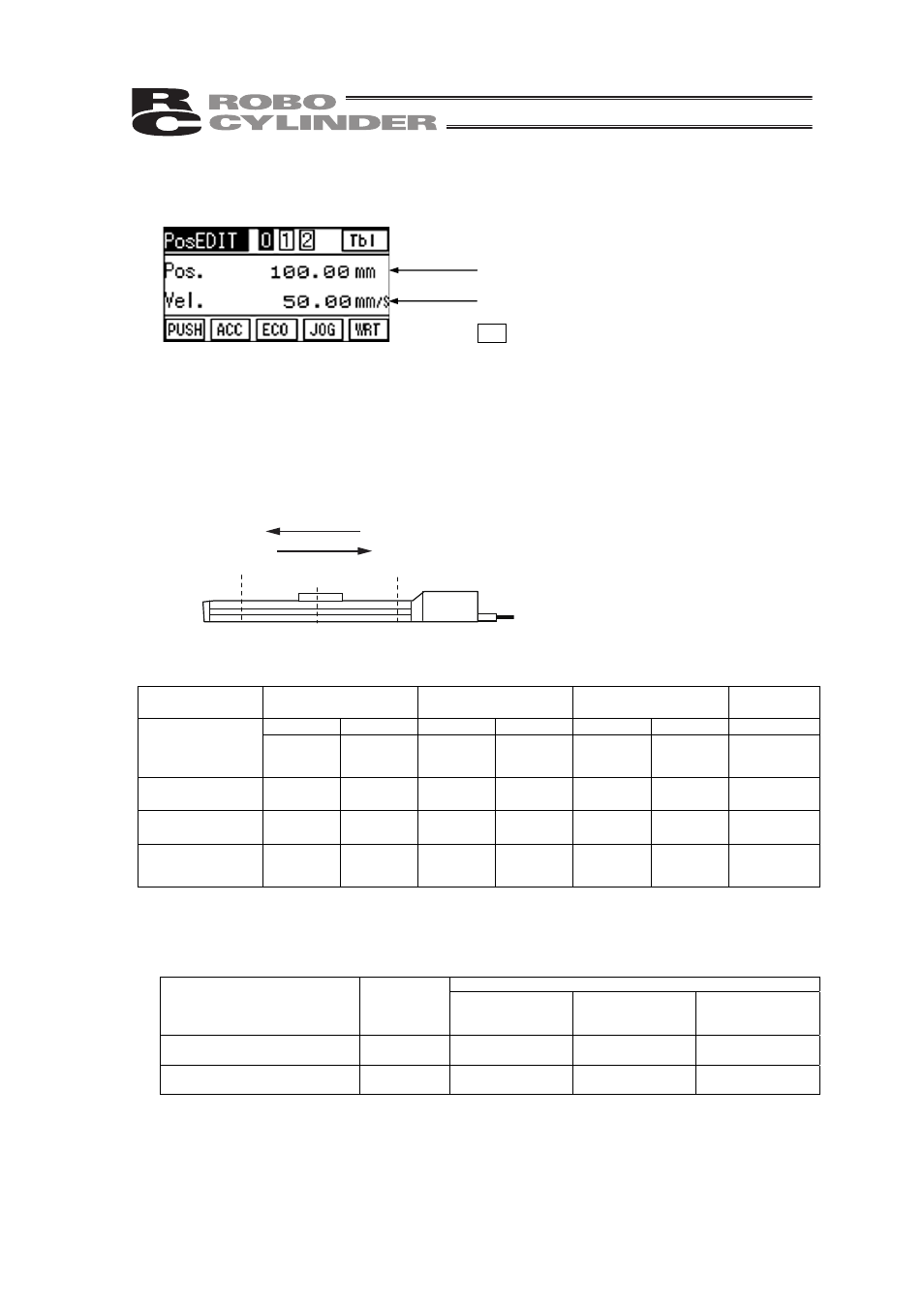

When the section of the position to be set is touched, the target position/velocity setting window
for the selected position is displayed.
Set the position and velocity.
Touching Tb1 returns to the Tb1 window.
In this set window, the other three setting item and job movement can be selected.
[Setting Items]
x PUSH
Pressing Force and Pressing Width Setting
x Acceleration/Deceleration
Acceleration and Deceleration Setting
x ECO Energy-Saving Function Setting
[1] Position
Data
The position data for operating the actuator is set here.
Position Data
Position Setting
Window
Position/Velocity Acceleration/Deceleration Pressing Energy-Saving
1) 2) 3) 4) 5) 6) 7)
Position Data Position
[mm]
Velocity
[mm/s]
Acceleration
[G]
Deceleration
[G]
Pressing
Force
[%]
Pressing
Width
[mm]
Energy-Saving
Function
Forward Position
(Backward Point)
200.00 50.00 0.1 0.1 70 1.00 Effective
Backward Position
(Forward Point)
0.00 50.00 0.1 0.1 0 0 Effective
Intermediate Point
Position
(Intermediate Point)
100.00 50.00 0.1 0.1 0 0 Effective
1) Position… Set the position where the actuator is moved.
The correlation of the Positions is as shown below:
Backward Position (Forward Point) < Intermediate Point Position (Intermediate Point)
< Forward Position (Backward Point)
Set Position
Operation Pattern Displacement Forward Position
(Backward Point)
Backward Position
(Forward Point)
Intermediate Point
Position
(Intermediate Point)
2-point Stop (2-Point Positioning)
Point-to-Point
Movement
ż ż
3-point Stop (3-Point Positioning)
3-Point
Movement
ż ż ż
2) Velocity…Set the actuator speed.
3) Acceleration…Set the actuator acceleration.
It is available to input greater number than specified in the Catalog for the
range of input.
Refer to the Catalog or the Instruction Manual of the actuator.
The set position is shown.
The set velocity is shown.
Motor
Intermediate
Point Position
(Backward Point)
Forward Position
(Forward Point)
Backward Position
Actuator
Backward
Forward
