Power button board
Description Spare part number
Power button board (includes power button board cable) 431437-001
Before removing the power button board, follow these steps:
1 . Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2 . Disconnect all external devices connected to the computer.
3 . Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4 . Remove the battery (see Battery on page 36 ).
5 . Remove the switch cover (see Switch cover on page 49 ).
Remove the power button board:

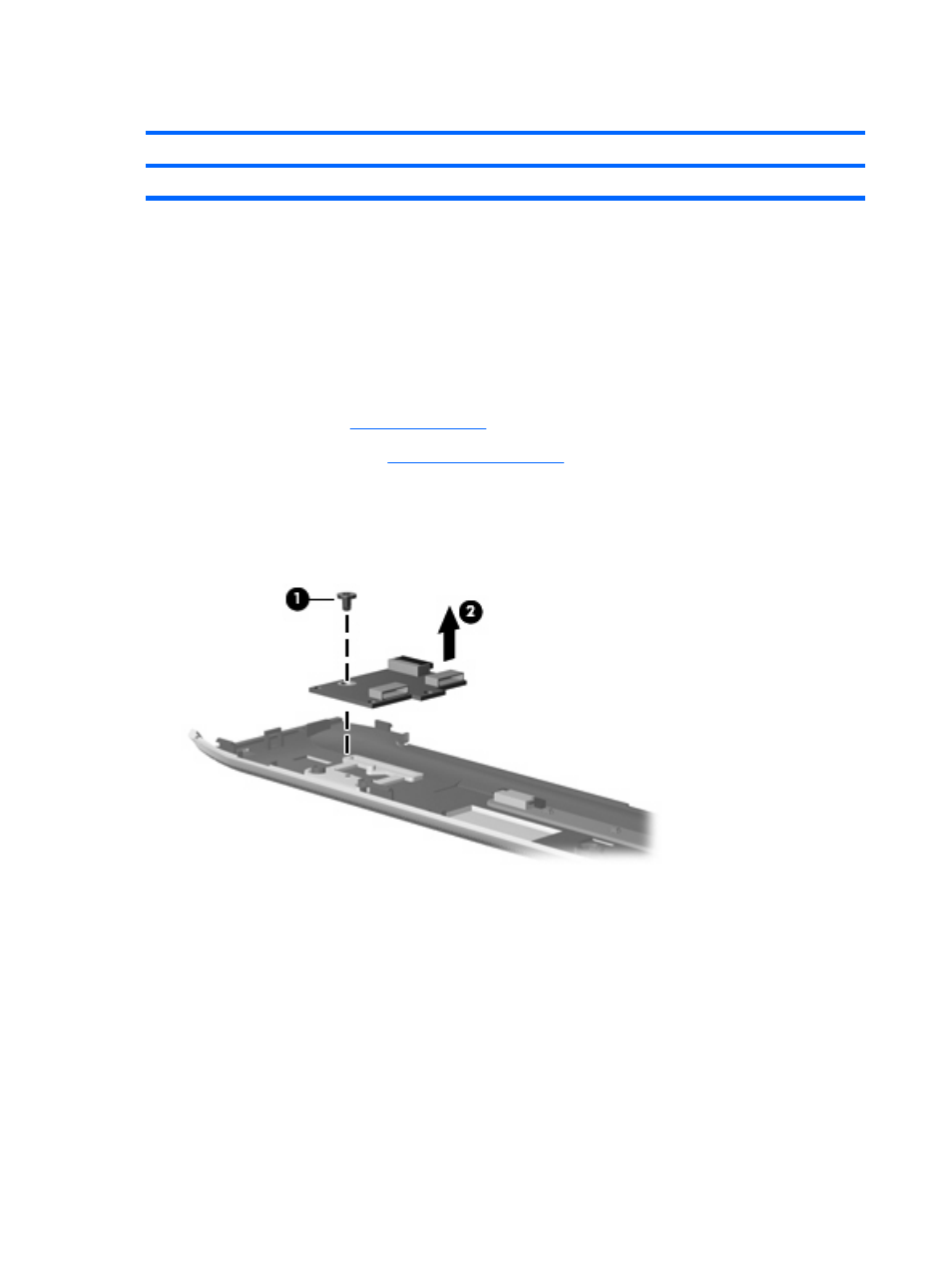

1 . Remove the Phillips PM2.0×4.0 screw (1) that secures the power button board to the switch cover.
2 . Remove the power button board (2) from the switch cover.
3 . Remove the power button board.
Reverse this procedure to install the power button board.
52 Chapter 4 Removal and replacement procedures
