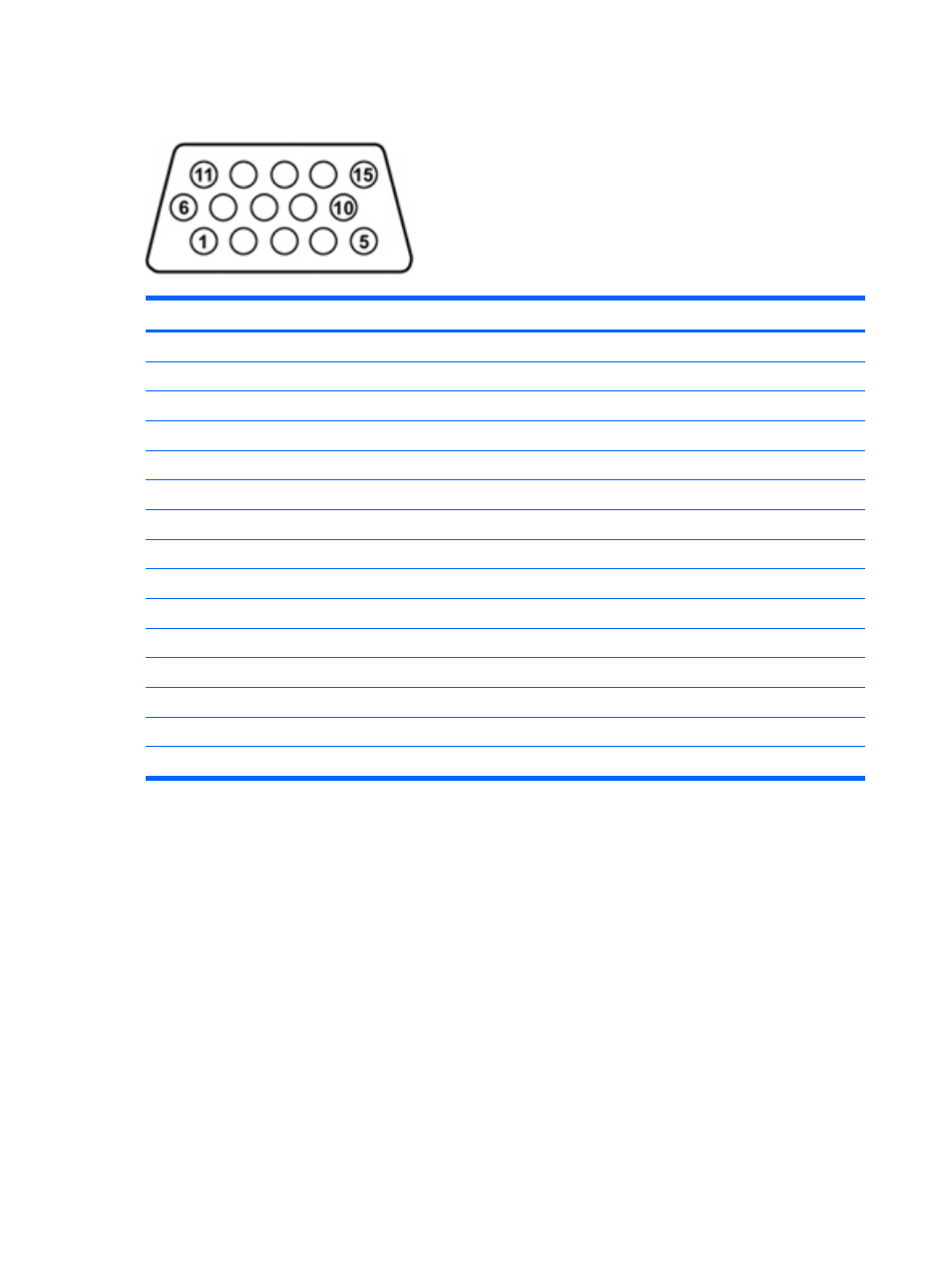

External monitor

Pin

Signal

1

Red analog

2

Green analog

3

Blue analog

4

Not connected

5

Ground

6

Ground analog

7

Ground analog

8

Ground analog

9

+5 VDC

10

Ground

11

Monitor detect

12

DDC 2B data

13

Horizontal sync

14

Vertical sync

15

DDC 2B clock

118 Chapter 9 Connector pin assignments
