HP PAVILION DX6500 User Manual
Page 58
4
.

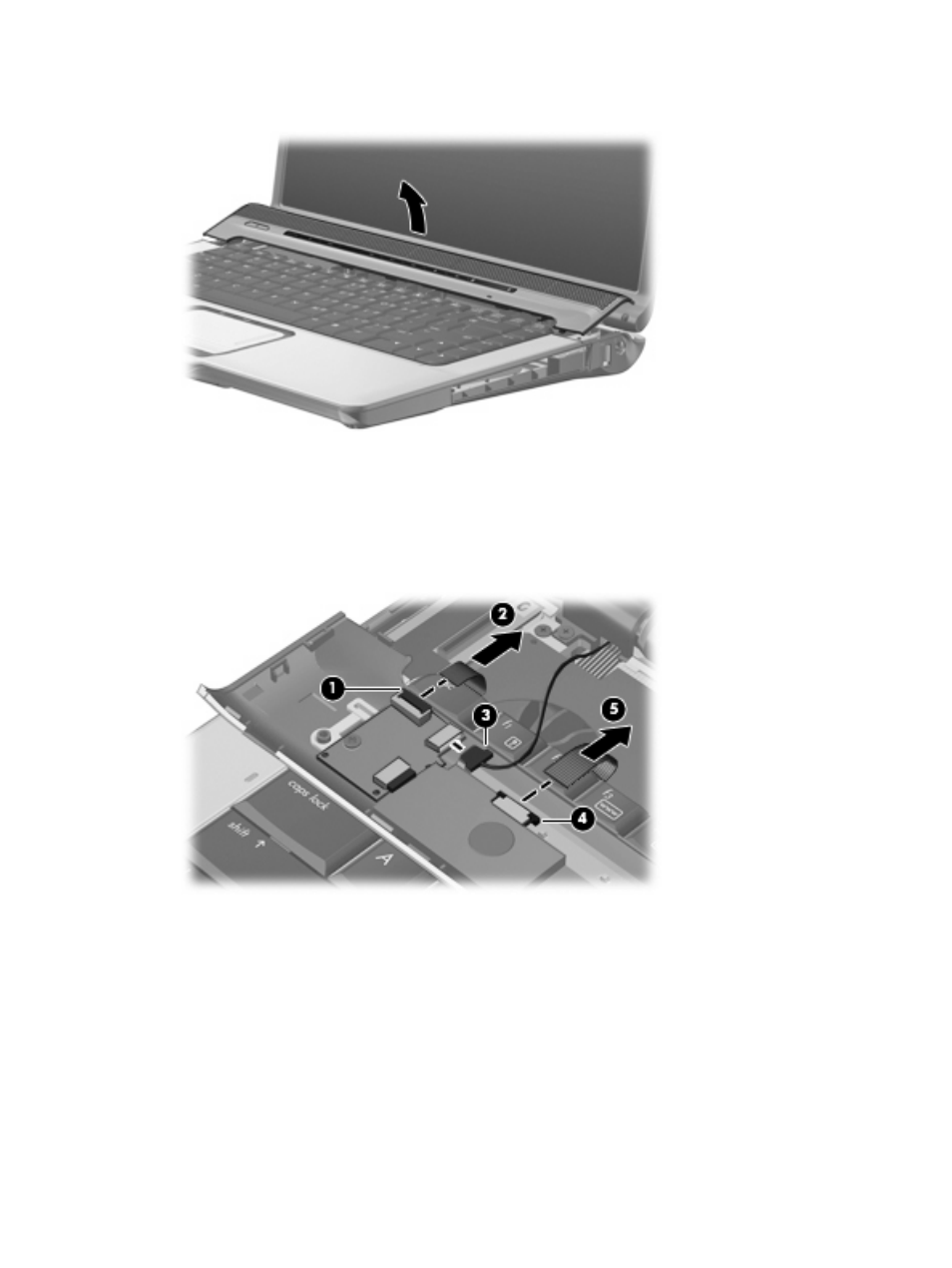

Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard.
5
.
Release the zero insertion force (ZIF) connector (1) to which the power button board is connected,
and disconnect the cable (2) from the power button board.
6
.
Disconnect the microphone cable (3) from the power button board.
7
.
Release the ZIF connector (4) to which the LED board is connected and disconnect the cable (5)
from the power button board.
8
.
Remove the switch cover.
Reverse this procedure to install the switch cover.
50 Chapter 4 Removal and replacement procedures
