-2- 598-1114-04
INSTALLATION

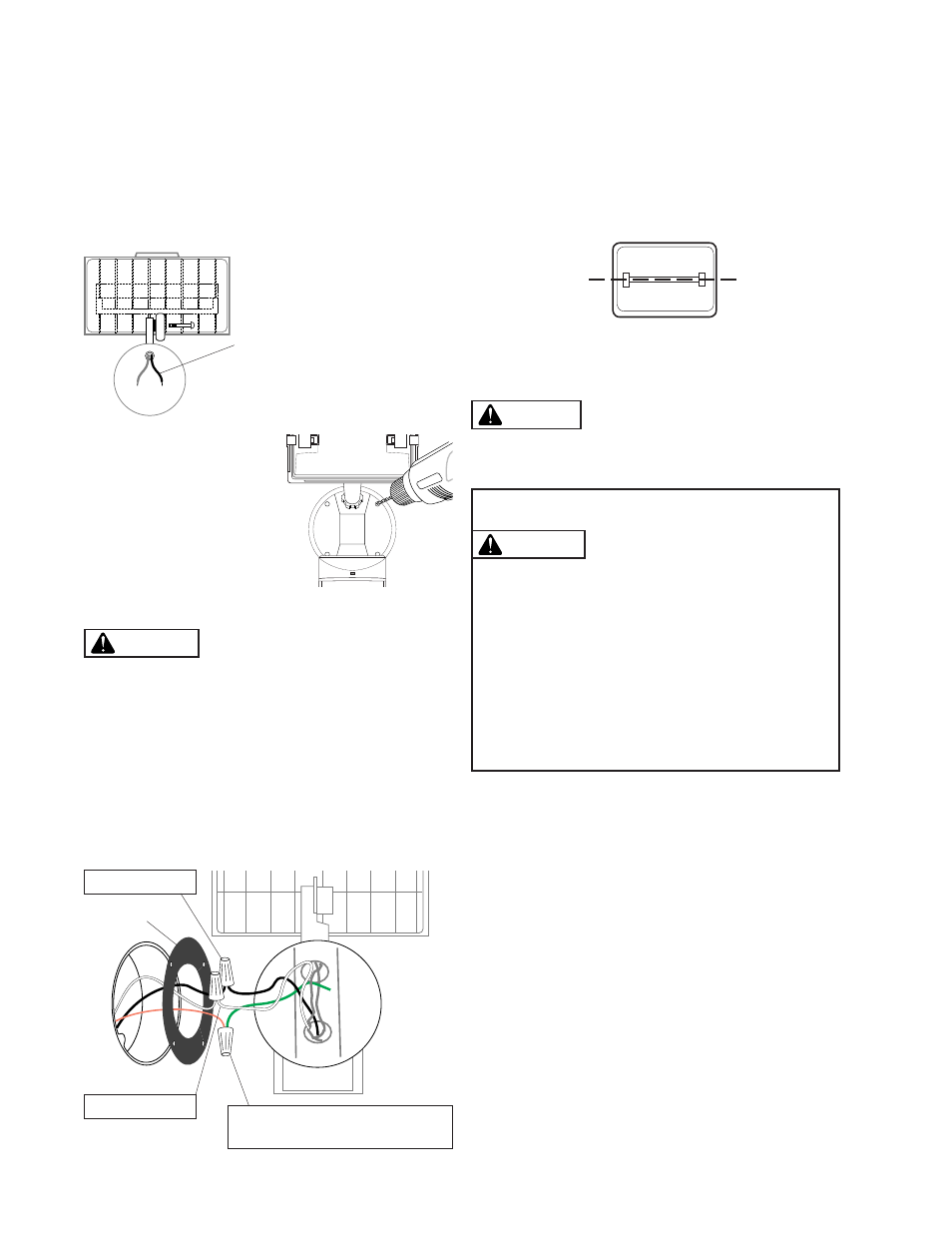

Wire the Light Control
WARNING: Turn power off at the fuse or circuit
breaker.
1.
Remove the existing light fixture.
2. The S-hook can be used to hold the fixture while
wiring. The small end of the hook can be inserted
into a hole in the junction box. The large end goes
around the “neck” of the fixture.
3. Route the light control’s wires through the large
gasket hole.
4. Twist the junction box wires and fixture wires together
as shown. Secure with a wire connector.
Mount the Light Control
1. Align the light control cover plate and cover plate
gasket and the junction box. Insert and tighten the
mounting screws.
2. If not installed on a weatherproof box or if an adap-
tor plate is used, caulk the wall plate and mounting
surface with silicone weather sealant.
White to White
Black to Black
Junction box ground wire to
green ground screw on fixture.
Gasket
❒ Attach the lamp arm to the
backplate arm and secure
with the long bolt.
Note: When tightening the arm
screw, pull on the wires to make
sure the wires are not pinched
by the joint.
❒ Drill out the holes if needed
to mount the backplate to
the junction box.
CAUTION: For proper operation and safety, the
sensor head must be rotated so that the controls
are on the bottom. Keep the lamp head at least 2" (51
mm) from the sensor.
+/- 4°
MOUNT HORIZONTALLY
The halogen light must be
mounted horizontally (+/- 4°)
IMPORTANT SAFETY INSTRUCTIONS
LIGHTED LAMP PRODUCES EXCESSIVE HEAT
WARNING: In order to reduce the risk of FIRE,
ELECTRIC SHOCK, (EXPOSURE TO EXCESSIVE
UV RADIATION) or injury to Persons, please follow
these Safety Instructions.
1. Keep lamp at least 24" (61 cm) from flammable ma-
terials such as paper, cardboard, wood, and fabrics.
Do not aim at objects closer than 3 feet (1 m).
2. Bodily injury can occur from close contact to base
or front of lamp and lamp guard.
3. Do not look directly into lamp.
4. Do not operate with missing or damaged lamp
containment barrier (glass cover).
Bulb Replacement
Replace with type T halogen, 500 W maximum, 120
VAC lamp only.
a. Disconnect fixture from power source and allow 20
minutes to cool.
b. Remove glass cover and remove the old bulb by
pushing the bulb towards the right until the left side
of the bulb is clear of the left socket.
c. Do not handle bulb with bare skin. Use clean gloves
or a cloth to install new bulb. To insert the new bulb,
push the bulb into the right socket so the bulb fits
completely into the left socket.
Note: Oil from skin can greatly reduce Bulb life.
d. Check that the bulb is seated properly.
e. Reinstall the glass cover.
For easy installation, select an existing light with a wall
switch for replacement.
For best performance, mount the fixture about 8 ft. (2.4 m)
above the ground.
NOTE: If fixture is mounted higher than
8 ft. (2.4 m), aiming the sensor down will reduce coverage
distance.
