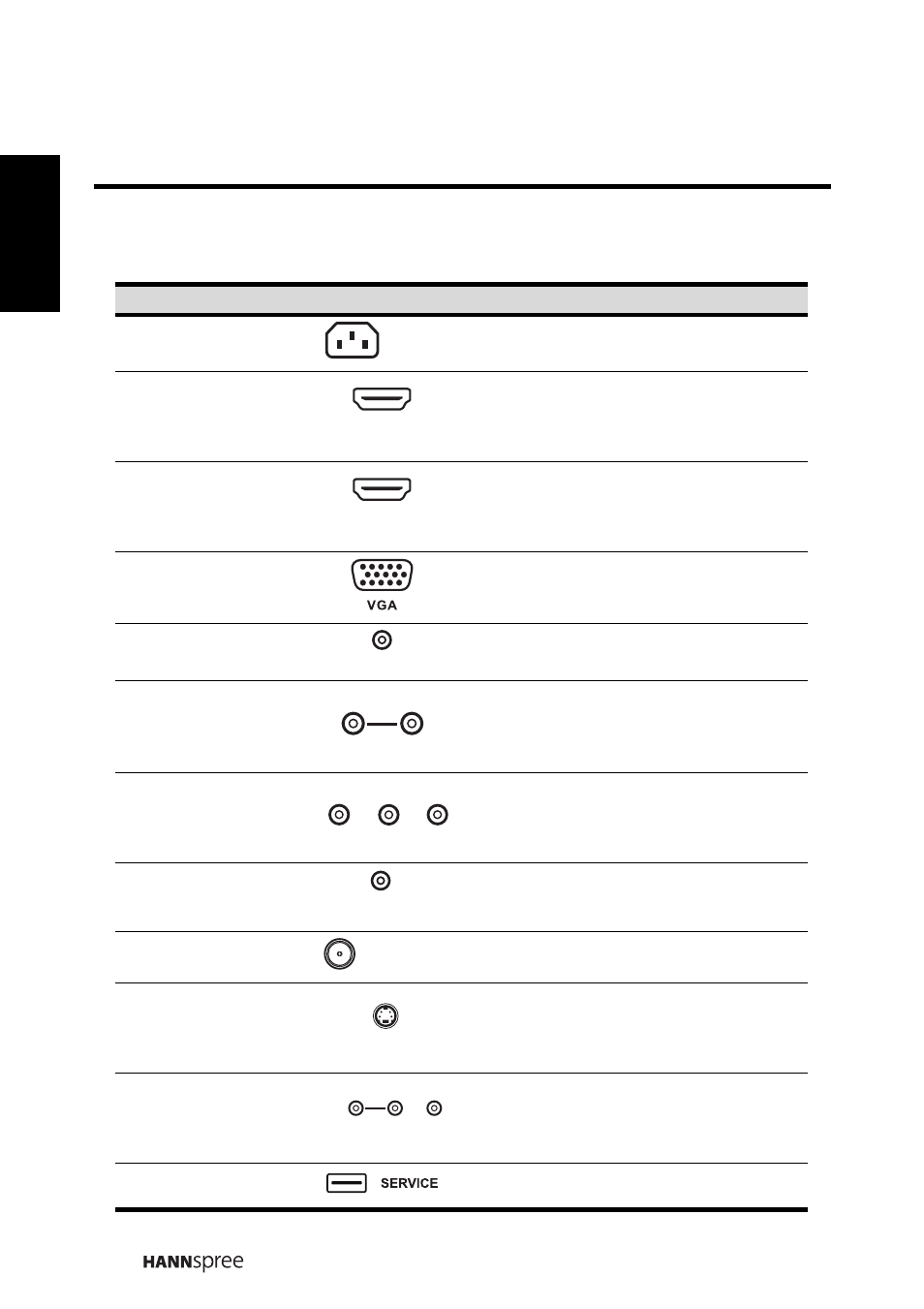

1.4 Input and Output Jacks
Description Connector Function
Power connector
Connect to the included power cord.
HDMI 1 input
Connect to an external device, such
as a DVD player, set-top box, or a
PC’s DVI/ HDMI port.
HDMI 2 input
Connect to an external device, such
as a DVD player, a Set-Top-Box, or a
PC’s DVI/ HDMI port.
VGA (PC) input
Connect to a PC’s VGA port.
Audio input (PC)
Connect to a PC’s audio port.
Component inputs
(audio)
Connect to an external device, such
as a VCR, Set-Top-Box, or a DVD
player.
Component inputs
(video)
Connect to an external device, such
as a VCR, Set-Top-Box, or a DVD
player.
Earphone output
Connect to earphones or external
speakers with built-in amplifiers.
Cable/ Antenna
Connect to an antenna or cable TV.
S-Video input
Connect to an external device, such
as a VCR, Set-Top-Box, or a DVD
player.
Composite inputs
Connect to an external device, such
as a VCR, Set-Top-Box, or a DVD
player.
SERVICE
For service only.
AC IN
HDMI 1
HDMI 2
PC LINE IN
AUDIO
R L
Y P
b
P
r
EAR
PHONE
CABLE / ANTENNA
VHF / UHF
S-Video
AUDIO
R
AV
L VIDEO
