HANNspree ST08-10H1 User Manual
Making connections, A/v and channel setup, Selecting a/v sources auto channel setup
TV
Auto-Programming
093.84 MHz
1
6%
Return :
MENU
Selecting A/V Sources
Auto Channel Setup
Quick Start Guide
Front View
Front View
Rear View
Rear View
Copyright 2005, Hannspree, Inc.
All rights reserved.
Making Connections
Connecting to a VCR, VCD, DVD Player, or Video Game Console
Connecting the Power Adapter
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
Connecting to Antenna/Cable TV
A/V and Channel Setup
MAD-001348
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the
TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
B
R
W
Y
B R W Y
AV connectors
S-Video
connector
VCR
DVD
VCD
4-IN-1 A/V jack
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.

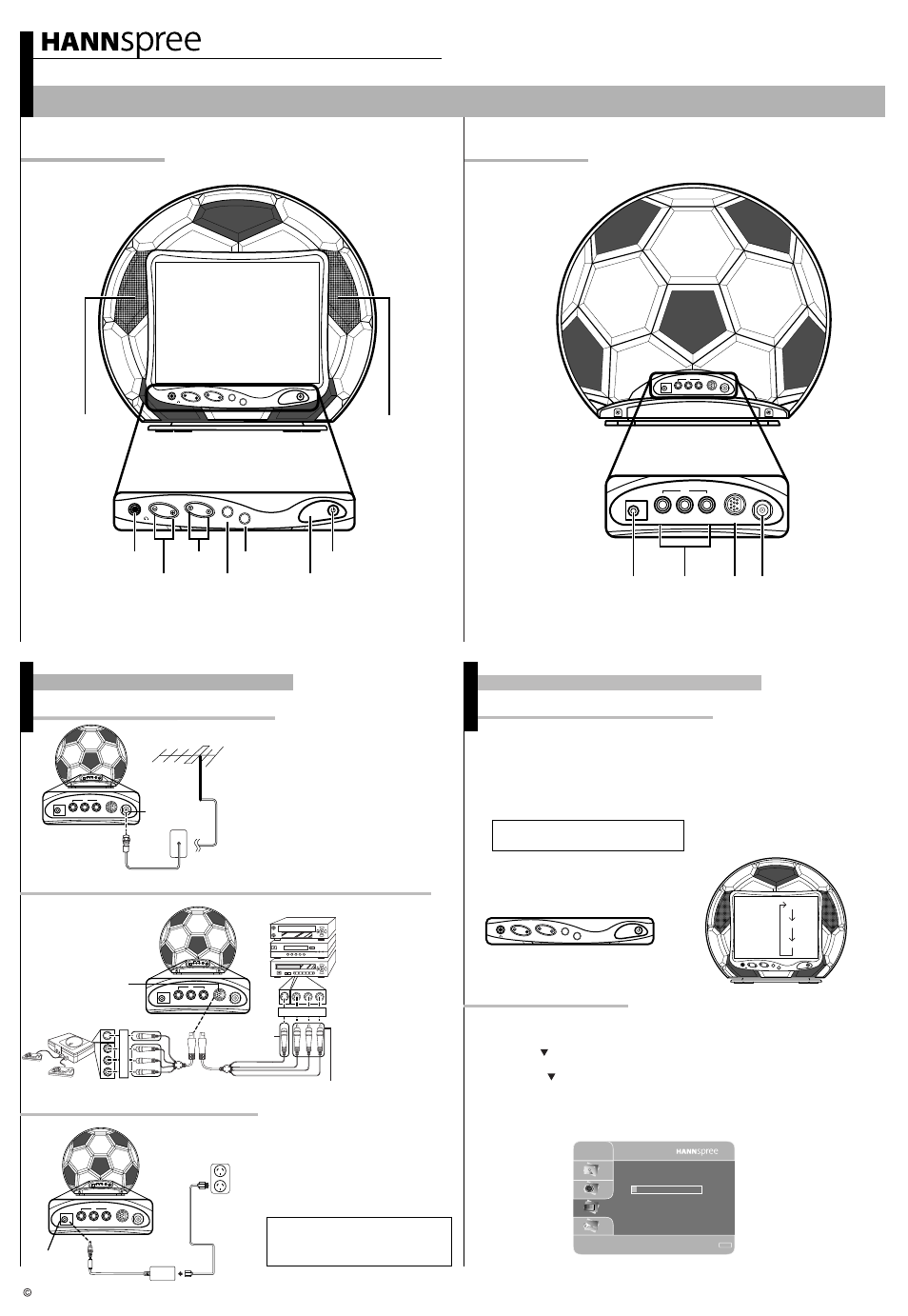

ST08-10H1 9.6" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.
Power cord
Power adapter
DC-IN
Power outlet
Auto Program
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the
SOURCE button on the
control panel to select different source signals.
TV channel number, AV or AVs appear on the screen.
Note : AVs only appears on the screen when
S-Video is connected.
1. Press the
MENU button to enter the OSD menu.
Please follow the instructions by using the control panel.
6. Your television will begin automatically memorizing the available channels.
4. Press the
CH button until the "Auto Program" feature is selected.
2. Use the
CH button to select "TV".
5. Press the
VOL
+
button to begin "Auto Program".
3. Press the
VOL
+
button to enter the TV setting.
2. The cables are
color-coded (black,
red, white, and yellow).
Connect each color-
coded cable to
the appropriate
connector on your
device.
4-IN-1 A/V cable
Note :
Images are for illustration only and may
vary by model or region.
Antenna
Antenna/CATV
coaxial cable
ANT jack
(VHF/UHF
IN jack)
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
R
L
VIDEO
AV2
ANT
AV1
VOL
CH
MENU
SOURCE
CH: 4
AV2
AV1
VOL
CH
MENU
SOURCE
VOL
CH
MENU
SOURCE
Headphone jack
Source
Volume
adjust
Channel
select
Menu
Power/
Power indicator LED
Remote IR sensor
VOL
CH
MENU
SOURCE
Speaker
Speaker
DC-IN
R
L
VIDEO
AV2
ANT
AV1
DC-IN
AV2
AV1
Antenna/
Cable TV
DC-IN
