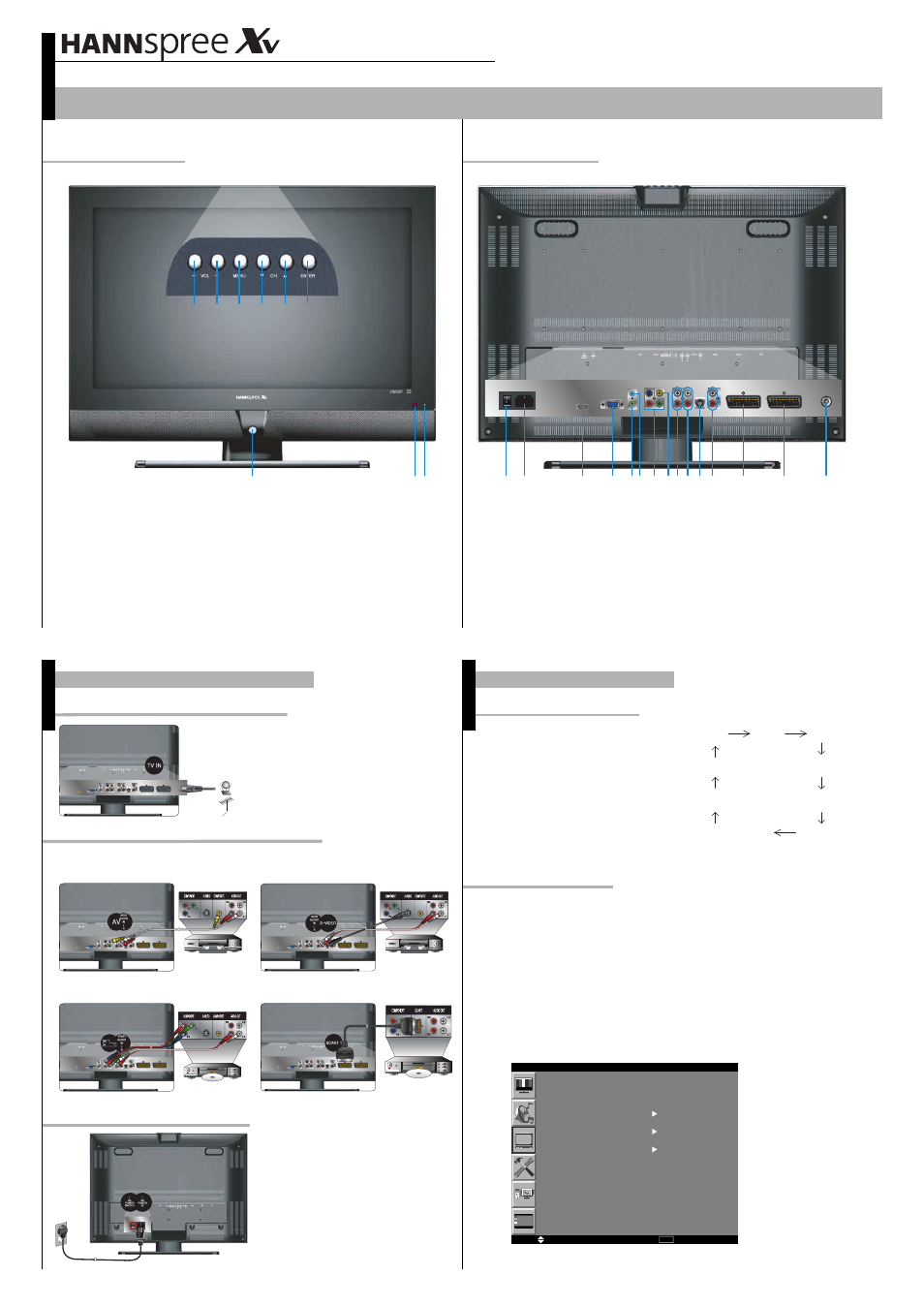

HANNspree JT02-37E1 User Manual

Front view, Making connections, Getting started

OSD

A u t o S c a n

M a n u a l S t o r e

N a m e

S o r t

S e l e c t

E x i t

C h a n n e l

JT02-37E1 37" Liquid Crystal Display TV

Front View

JT2002310621P

This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

1. Volume down button
2. Volume up button
3. OSD Menu button
4. Channel down button
5. Channel up button

6. Enter button
7. Power button
8. Infrared receiver
9. Power LED indicator

1. Connect one end of the UHF/VHF (Antenna)

or CATV cable to the TV IN jack (UHF/VHF IN
jack) on the back of the TV.

2. Connect the other end of the UHF/VHF

(Antenna) or the CATV cable to the Antenna
or CATV socket.

The illustrations below show you how to connect your TV to a VCR, VCD or a DVD player.

Making Connections

Connecting the Power Cord

1. Plug the power connector into the

AC-IN input jack on the rear cover of
the TV-set.

2. Insert the three-pronged plug at the

other end of the power cord into a
power outlet.

3. Turn the main power switch on to

supply power to the TV.

With RCA AV cable

With S-Video cable

With YPbPr cable

With SCART1

1. Make sure your TV is turned on and a device

such as a DVD player is connected.

2. Press the SOURCE button on the remote

control and use the

t / u button to select

the required input source between TV, AV,

SV, HD, SCART1, SCART2, SCART2-SV,

D-SUB, and HDMI.

3. Press enter to confirm your selection.

Follow the instructions below to automatically preset the channels for your TV
before watching it for the first time.

1. Press the "MENU" button on your remote control or the control panel.

2. Use the

p / q button to select Channel Menu.

3. Press the

t / u button to start Auto Scan.

Getting Started

Auto Channel Scan

Selecting Input Source

Rear View

1. AC power switch
2. AC power input
3. HDMI input terminal (19 pin)
4. D-Sub signal input (15 pin)
5. Audio Input for VGA
6. Headphone jack
7. YPbPr/ HD component video input
8. Composite video input

9. Audio input for YPbPr/ HD components (L/R)
10. Audio input for AV or S-Video components (L/R)
11. S-Video input
12. Audio output (L/R)
13. SCART1 input
14. SCART2 / SCART2-SV input
15. RF antenna / Cable TV input

Note: After performing Auto Scan, you need not do it again when turning

on your TV next time.

Auto Scan

D-SUB

SCART1

SCART2

SCART2-SV

HDMI

Quick Start Guide

5 6 7 8 9 10 11 12

Connecting to Antenna/Cable TV

Connecting to VCR, VCD or DVD Player
