67 Heat & Glo • SOHO-N-AUB • 2197-980 Rev. G • 2/13
Service Parts
Beginning Manufacturing Date: Mar 2011
Ending Manufacturing Date: Active
SOHO-N-AUB
IMPORTANT; THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM PART DESCRIPTION COMMENTS PART NUMBER
13.1 Pilot Assembly N
Pre Mar 2013 2198-014
Post Mar 2013 2090-012
13.2 Burner Assembly N 2111-020
13.3 Pilot Bracket 2111-123
13.4 Flex Tube Assembly 530-302A
13.5 Burner Neck Gasket 438-407
13.6 Valve Plate Gasket 2077-138
13.7 Valve Bracket 2189-117
13.8 Flex Ball Valve Assembly 2098-320A
13.9 Valve N 2166-302
13.10 Male Connector Pkg of 5 303-315/5
13.11 Jumper Wire 2187-198
13.12 Module , IPI 30 Gray 2166-306
13.13 Battery Pack** 4067-223
13.14 Wire Harness 2166-304
13.15 Transformer 2166-305
13.16 3-Hole Grommet 2118-420
13.17 Burner Orifi ce N (#50C) 582-850
**Fuse for battery pack can be sourced locally, not a warranty item. Specs are 500mA~10A 3/4” long
Additional service part numbers on the following page.
13.1
13.2
13.3
13.4
13.5
13.6
13.7
13.8
13.17
13.16
13.15
13.14
13.13
13.12
13.11
13.10
13.9

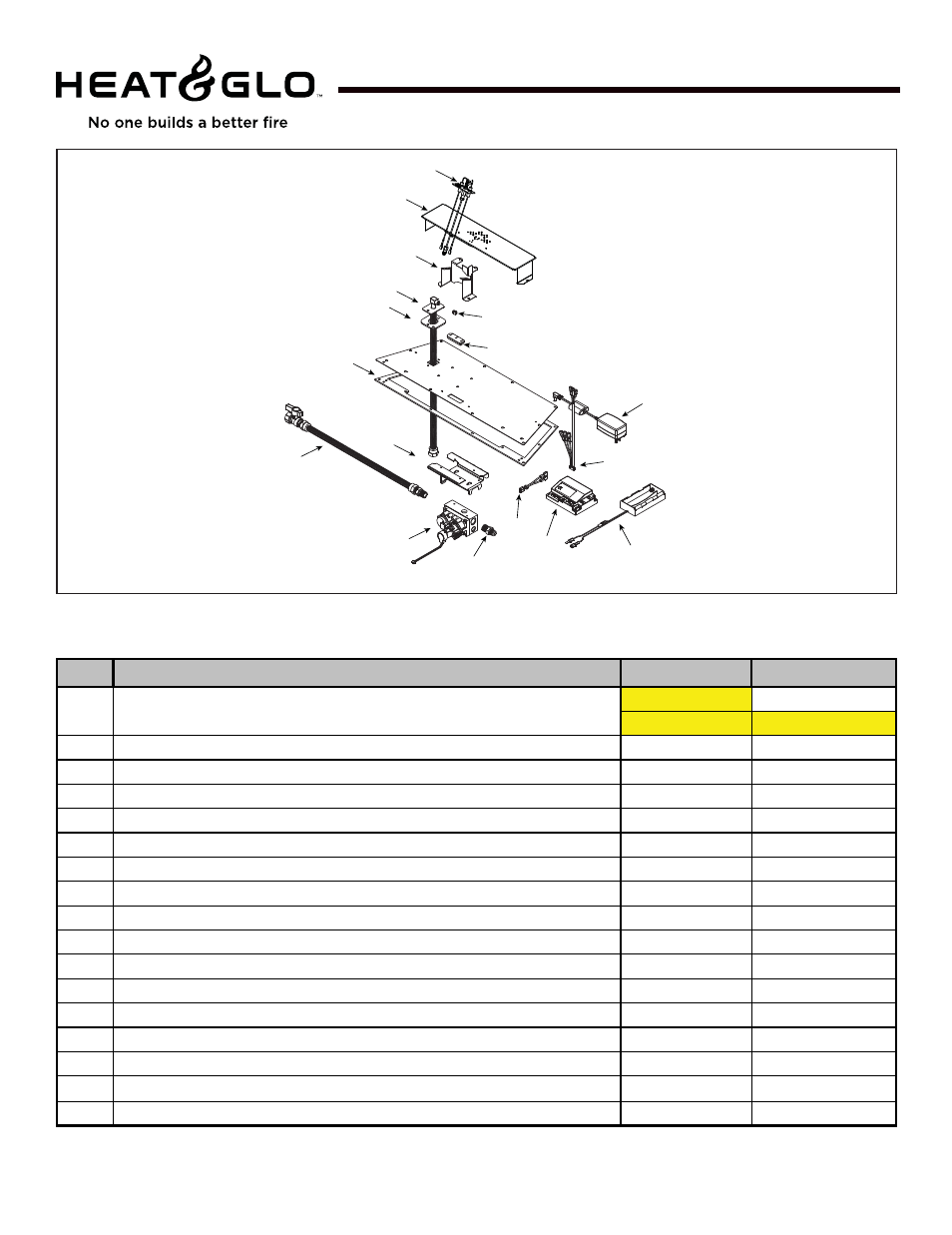

#13 Valve Assembly
