23 Heat & Glo • SOHO-N-AUB • 2197-980 Rev. G • 2/13
A. Vent Termination Minimum Clearances
6
Termination Locations
Fire Risk.
Maintain vent clearance to combustibles as
specified.
•
DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe may cause overheating and fire.
WARNING

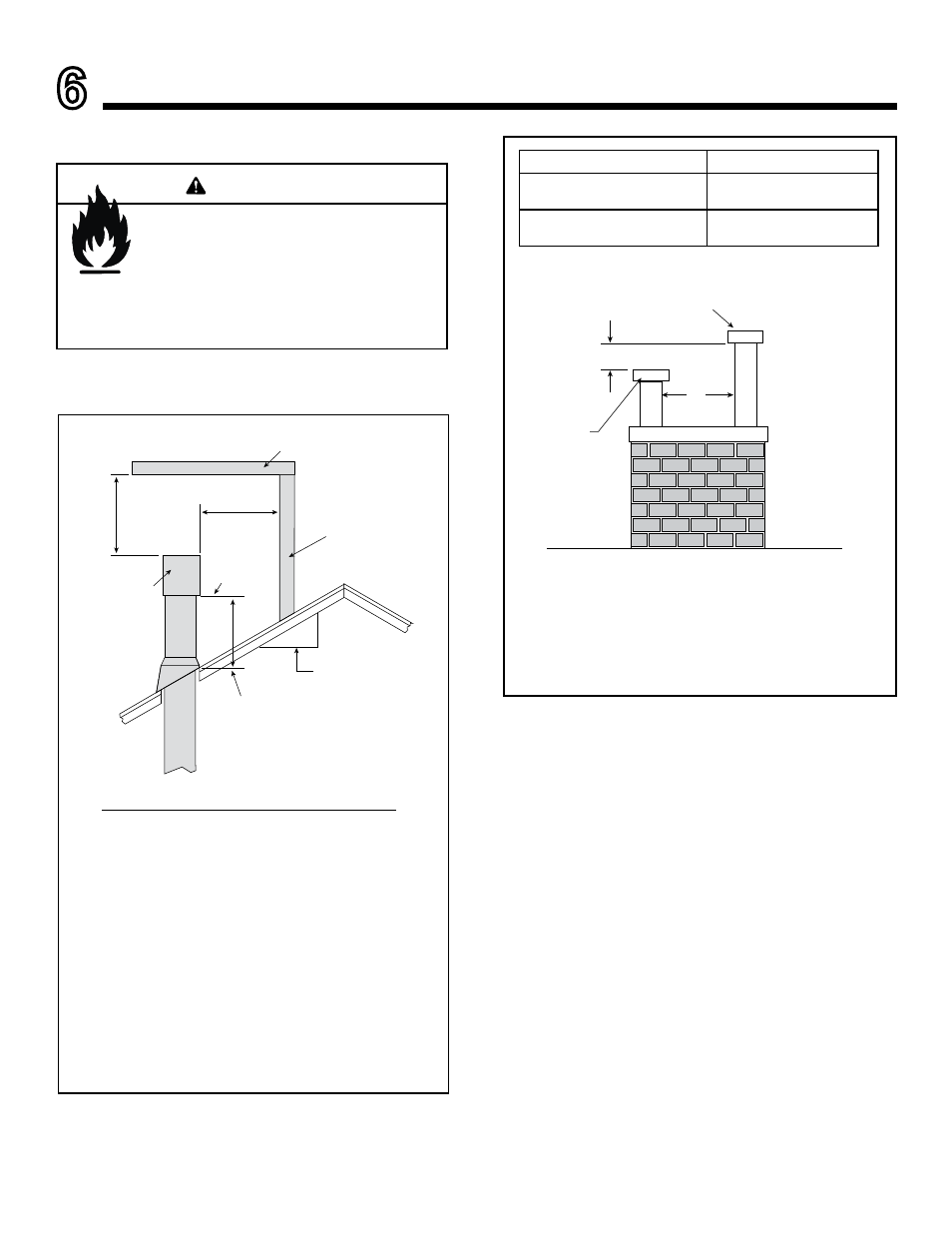

Figure 6.1 Minimum Height From Roof To Lowest Discharge
Opening
Figure 6.2 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A*
* If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
** In a staggered installation with both gas and wood or fuel oil terminations,
the wood or fuel oil termination cap must be higher than the gas
termination cap.
Angle H (Min.) mm
0°-26.6° .......................................................... 500*
26.6°-30.3° .......................................................... 500*
30.3°-33.7° .......................................................... 500*
33.7°-36.9° .......................................................... 610*
36.9°-39.8° .......................................................... 760
39.8°-42.5° .......................................................... 990
42.5°-45.0° ........................................................1 220
45.0°-49.4° ........................................................1 520
49.4°-53.1° ........................................................1 830
53.1°-56.3° ........................................................2 130
56.3°-59.0° ........................................................2 290
59.0°-60.3° ........................................................2 440
*910 mm minimum in snow regions
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VERTICAL
WALL
TERMINATION
CAP
HORIZONTAL
OVERHANG
12 in.
(305 mm)
X
ROOF PITCH
IS X/ 12 in. (305 mm)
LOWEST
DISCHARGE
OPENING
20 in.
(510 mm) MIN.
24 in.
(610 mm) MIN.
A B
6 in. mm (min.) up to 20 in.
(152 mm (min.) up to 508 mm)
18 in. minimum
(457 mm minimum)
20 in. minimum
(508 mm minimum)
0 in. minimum
(0 mm minimum)
