Heat & Glo • SOHO-N-AUB • 2197-980 Rev. G • 2/13 40

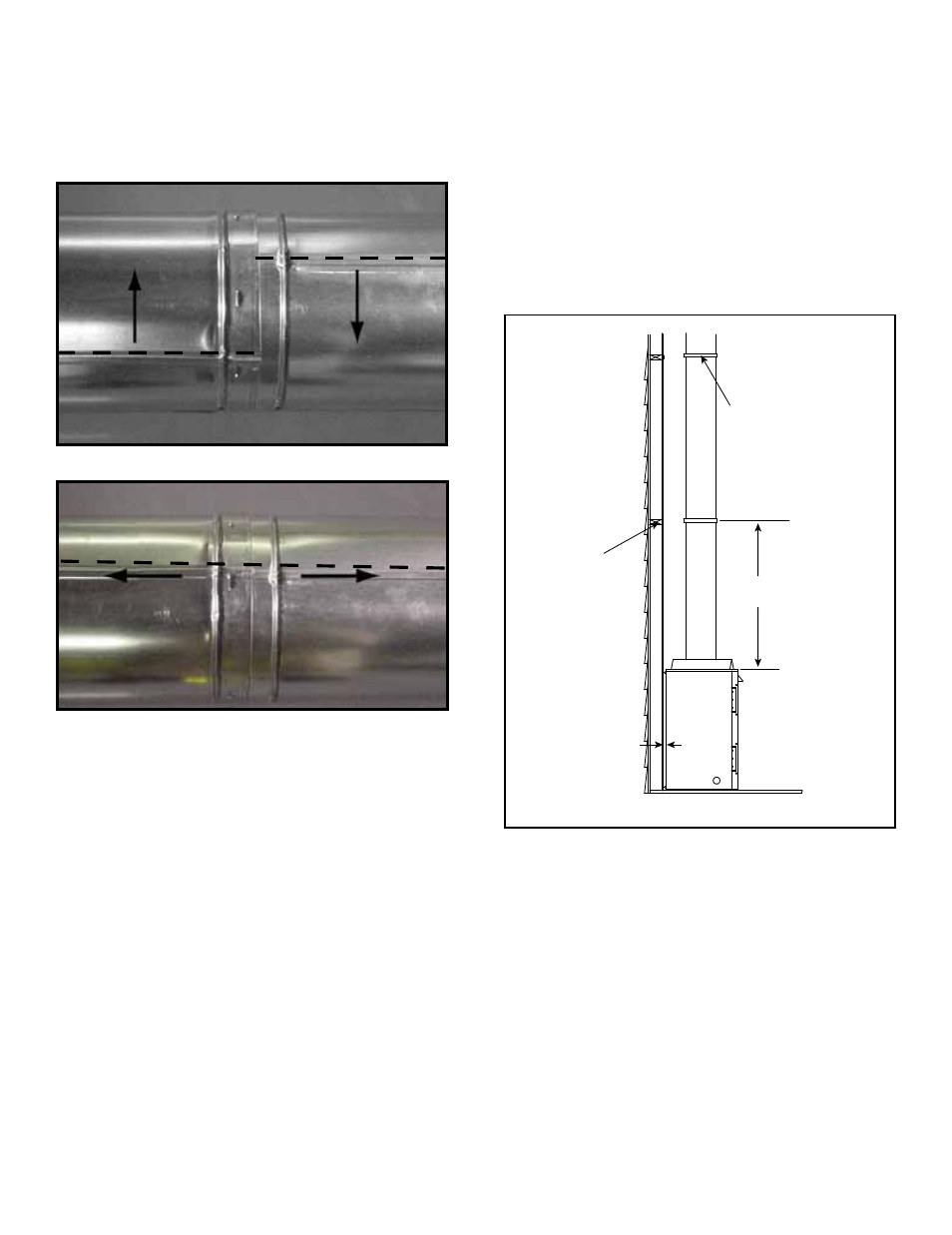

D. Disassemble Vent Sections
• Rotate either section (see Figure 10.7) so the seams on
both pipe sections are aligned as shown in Figure 10.8.
• Pull carefully to separate the pieces of pipe.
Figure 10.8 Align and Disassemble Vent Sections
Figure 10.7 Rotate Seams for Disassembly
Figure 10.9 Installing Support Brackets
E. Install Support Brackets
For Horizontal Runs - The flue system must be supported
every 5 ft. (1.52 m) of horizontal run by a horizontal pipe
support. To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The flue system must be supported
every 8 ft. (2.44 m) above the fireplace flue outlet by wall
brackets. To install support brackets for vertical runs:
• Attach wall brackets to the flue pipe and secure the wall
bracket to the framing members with nails or screws.
WALL BRACKET
WALL STUD
8 ft.
(2.44 m)
1/2 in.
13 mm
