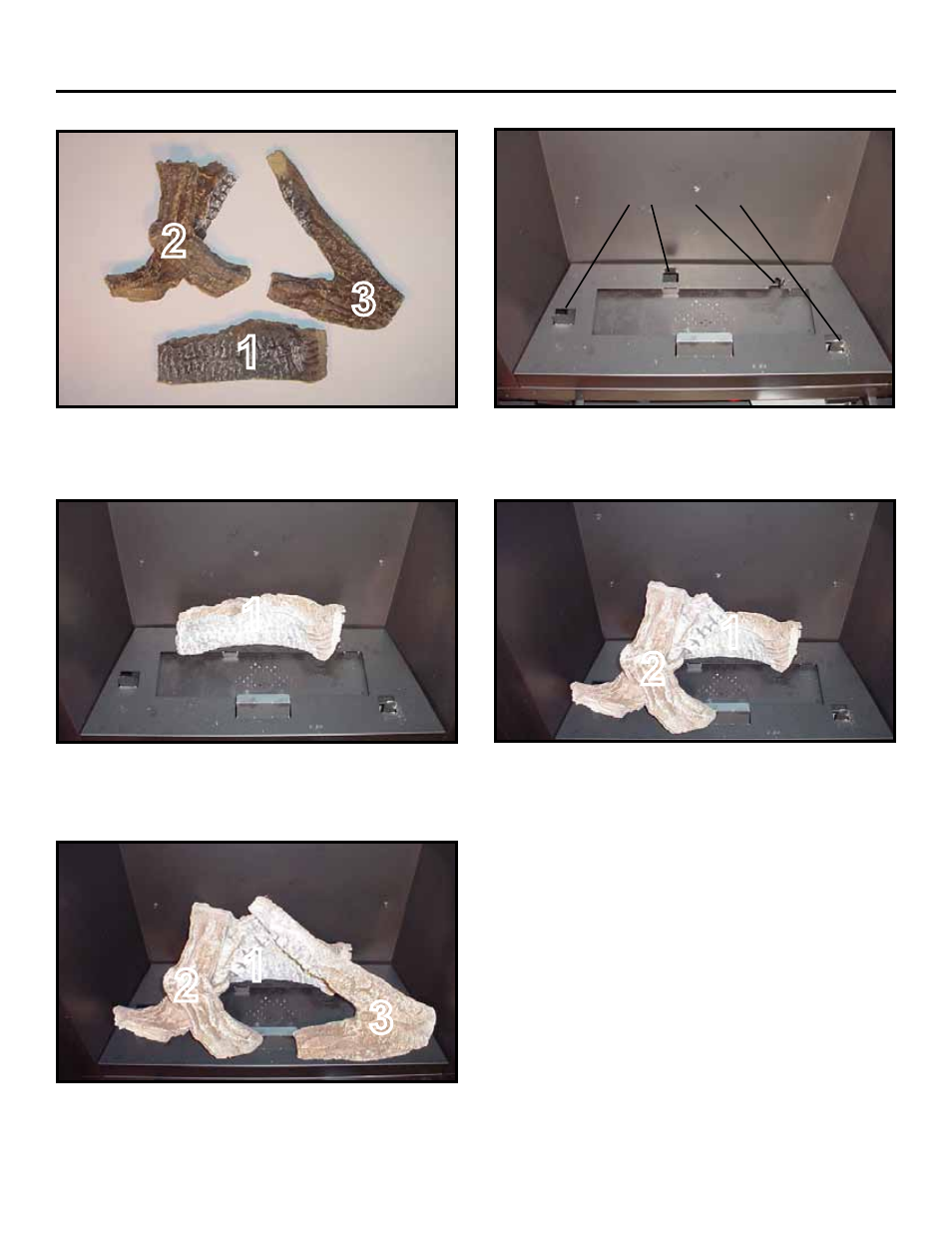

E. Log Placement Instructions Log Assembly: LOGS-SOHOCE
CAUTION: Logs are fragile. Carefully remove the logs
from the packaging.
2
1
Step 1. Place Log #1 (SRV2111-700) against rear right tab
with its slot over center locating tab.
Step 2. Place Log #2 (SRV2111-701) onto base pan such
that Log #2 fits in groove of Log #1. Push it back against
the left hand side locating tab. Ensure burner ports are not
covered by logs.
Step 3. Place Log #3 (SRV2111-702) so the top rests on
Log #1 against Log #2. The base slot on Log #3 will fit over
the locating tab on the front right hand side.
