Heat & Glo • SOHO-N-AUB • 2197-980 Rev. G • 2/13 58

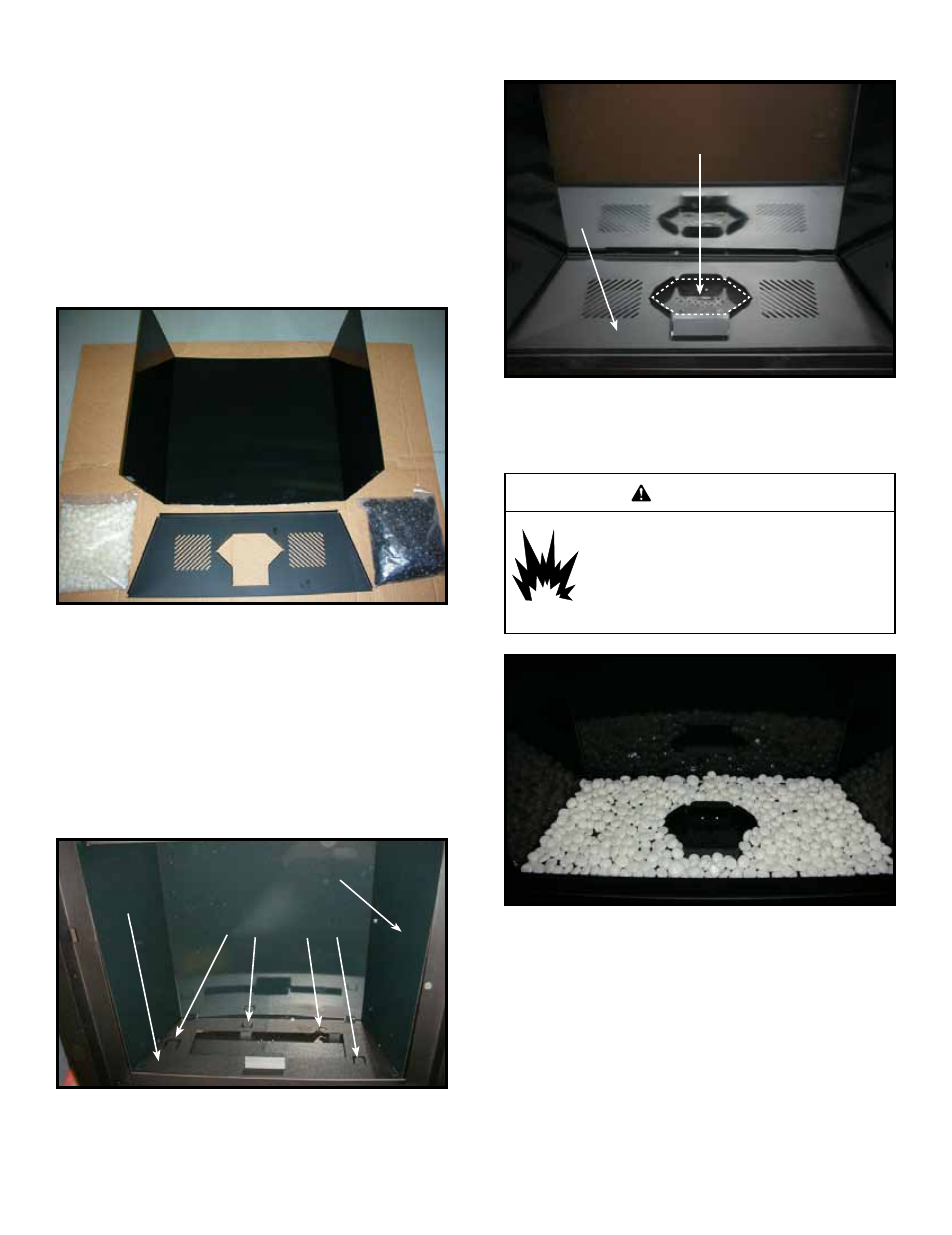

1. Remove the front and glass from the unit and set
aside. Remove the logs (if installed) from the unit and
either discard or save for later use.
2. Fold down the log locating tabs (if bent up) on the base
pan so they are parallel with the burner. See Figure 14.7.
3. Proceed to step 4 if the firebox liner is not being in-
stalled. Install the firebox liner by placing it on the base
pan of the fireplace and sliding it back until it contacts
the back of the fireplace. See Figure 14.7.
Figure 14.6
Figure 14.8
4. Set the rock tray on top of the base pan. See Figure 14.7.
DO NOT INSTALL ROCKS IN THIS AREA
LOCATING TABS
FIREBOX LINER
BASE PAN
Delayed Ignition Risk
• Do NOT place rocks on burner.
• Do NOT place rocks in a position that they may
fall on the burner.
Fireplace will not function properly.
Delayed ignition may occur.
WARNING
Figure 14.9
5. Spread the rock or onyx evenly across the rock tray.
See Figure 14.9. DO NOT place rocks in burner area
or in front of pilot burner. See Figure 14.8.
6. Reinstall the glass frame and front.
ROCK TRAY
F. Install Media Rock Kit
This kit is used in place of the logs in a SOHO-CEB unit.
Alternate media and reflective firebox liner is provided.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CONTENTS OF KIT:
• Reflective Firebox Liner (Optional)
• Rock Tray
• Rock or Onyx
Figure 14.7
OPTIONAL
REFLECTIVE LINER
ROCK TRAY
