Hardware Options and Upgrades

To insert a memory module:

a. Align the keyed (notched) edge of the module with the

keyed area in the memory slot 1.

b. With the module at a 45-degree angle from the surface of the

memory compartment, press the module into the memory
slot until it is seated 2.

c. Push the module downward until the retention clips snap into

place 3.

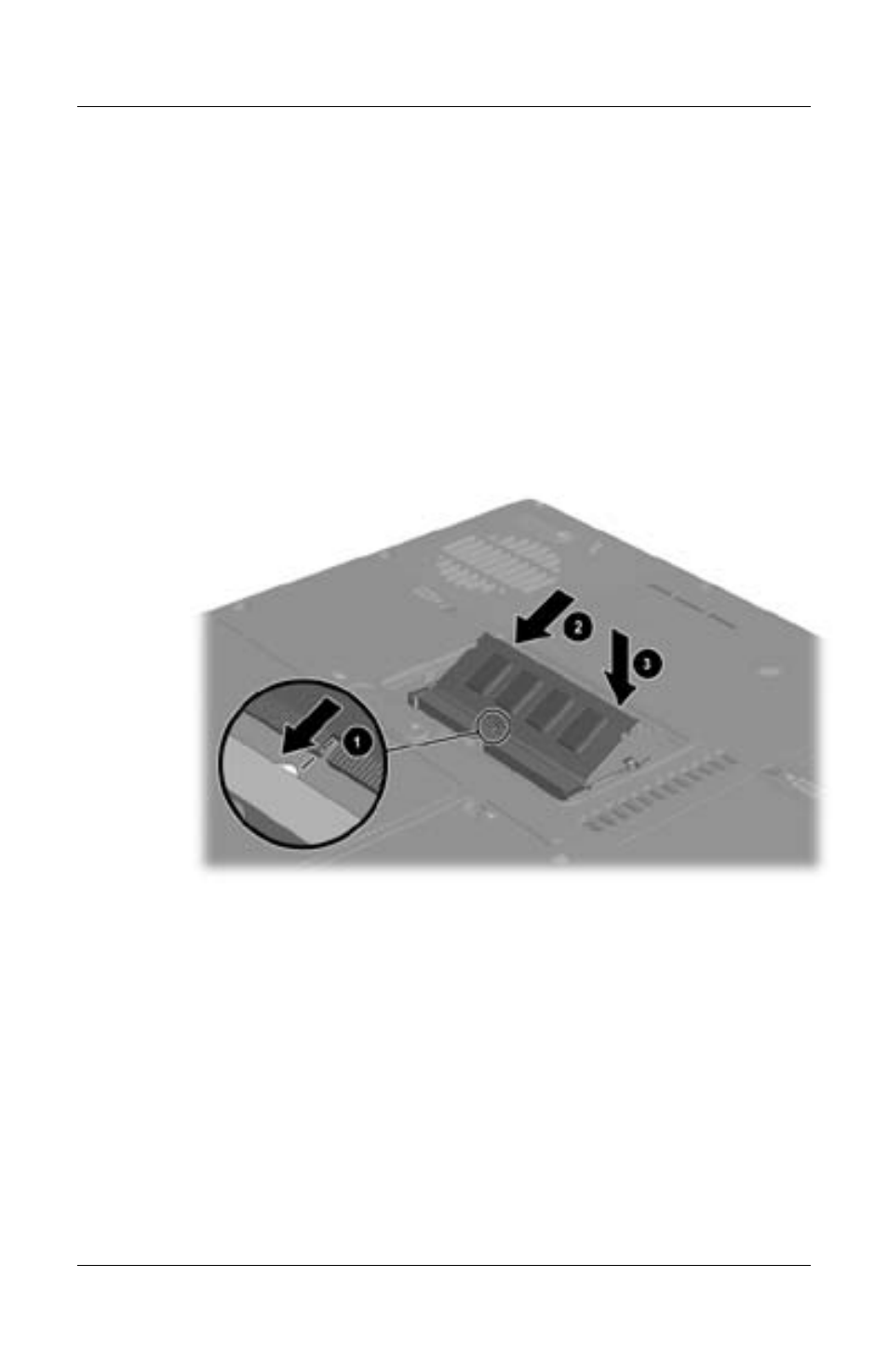

Inserting a memory module

8-14

Startup and Reference Guide––Part 2
