24 engli sh – HANNspree 1506-0B86000 User Manual
Page 25
24
Engli
sh
2.2.8

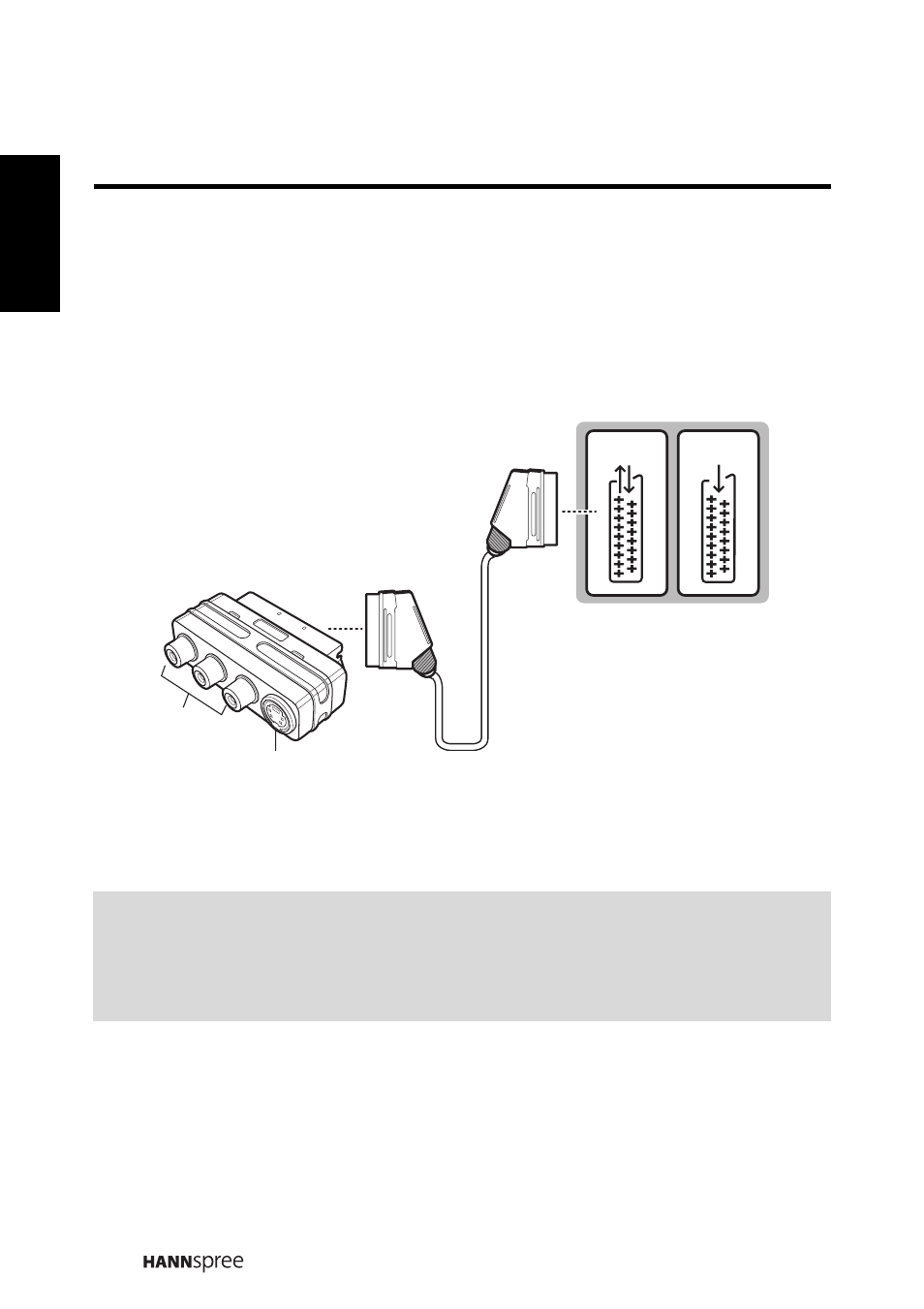

Connecting a VCR/ STB/ DVD Player using SCART
Use the SCART ports to connect a TV, VCR, VCD, DVD player or video game
console. You can choose to use a SCART cable or adapter for the connection
depending on the ports available on your player.
Note:
•
The S-Video connector and AV connectors cannot be connected at the
same time, or the wrong signals might be generated.
•
The cables are color-coded (black, red, white, and yellow). Connect each
color-coded cable to the appropriate connector on your device.
R-AUDIO-L/MONO
VIDEO
S.VIDEO
SCART 1
SCART 2
SCART Cable
(Optional)
Connect to
AV connectors
S-Video connectors
Connect to
(Optional)
SCART Adapter
