Service Service only. Not available for users.
S-Video Input
Connect to an external device, such as a
VCR, STB, or a DVD player.
Composite Input
(Video) Connect to an external device, such as a
VCR, STB, or a DVD player.
Composite Inputs
(Audio) Connect to an external device, such as a
VCR, STB, or a DVD player.
Earphone Output
Connect to earphones or external
speakers with a built-in amplifier.
Cable/Antenna Connect to an antenna or cable TV.
Component
Inputs (Video) Connect to an external device, such as a
VCR, STB, or a DVD player.
Component
Inputs (Audio) Connect to an external device, such as a
VCR, STB, or a DVD player.
SCART 1 IN/OUT
Connect to an external device, such as a
VCR, STB, or a DVD player with AV, S-
Video, RGB, L/R IN, Analog TV Out, and
L/R Out.
SCART 2 IN
Connect to an external device, such as a
VCR, STB, or a DVD player with AV, S-
Video, L/R IN.

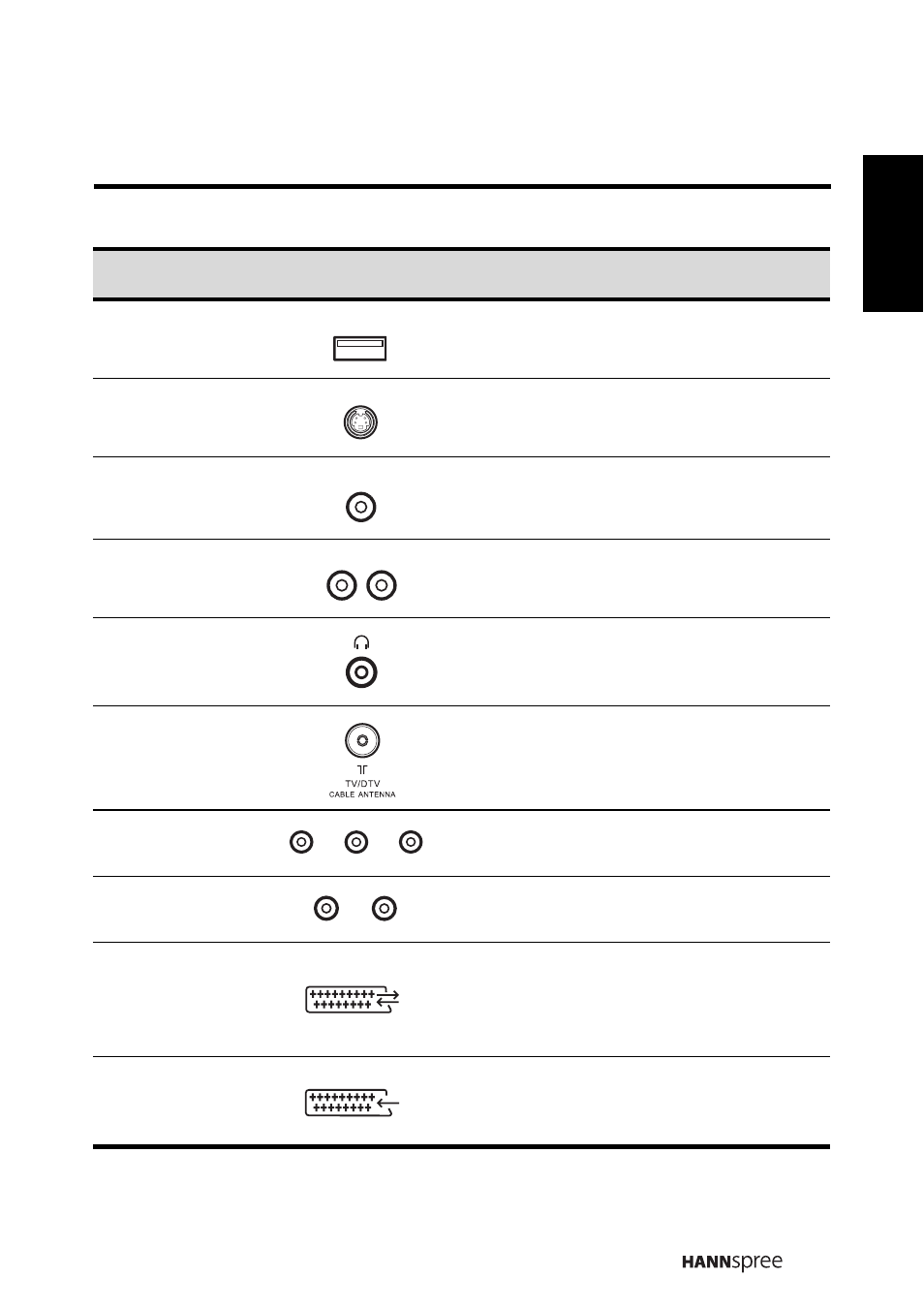

Description Connector Function
SERVICE
S-VIDEO
VIDEO
R-AUDIO-L
P
R
P
B
Y
R L
