70
21. SEPARATOR
1) Unplug the icemaker or disconnect the power source.
2) Remove the screws at the rear and take off the Top Panel.
3) Hold both sides of the Separator from the top. Bend the Front Separator into a
U-shape and remove it from the Shaft of the Evaporator Bracket. Bend the Rear
Separator into an inverted U-shape and lift it off the Shaft of the Evaporator Bracket.
4) Refi t the Separator in the reverse order of the removal procedure. Check that the
Separator is fi t correctly on the Shaft and can swing like a pendulum.
5) Plug in the icemaker or connect the power source.

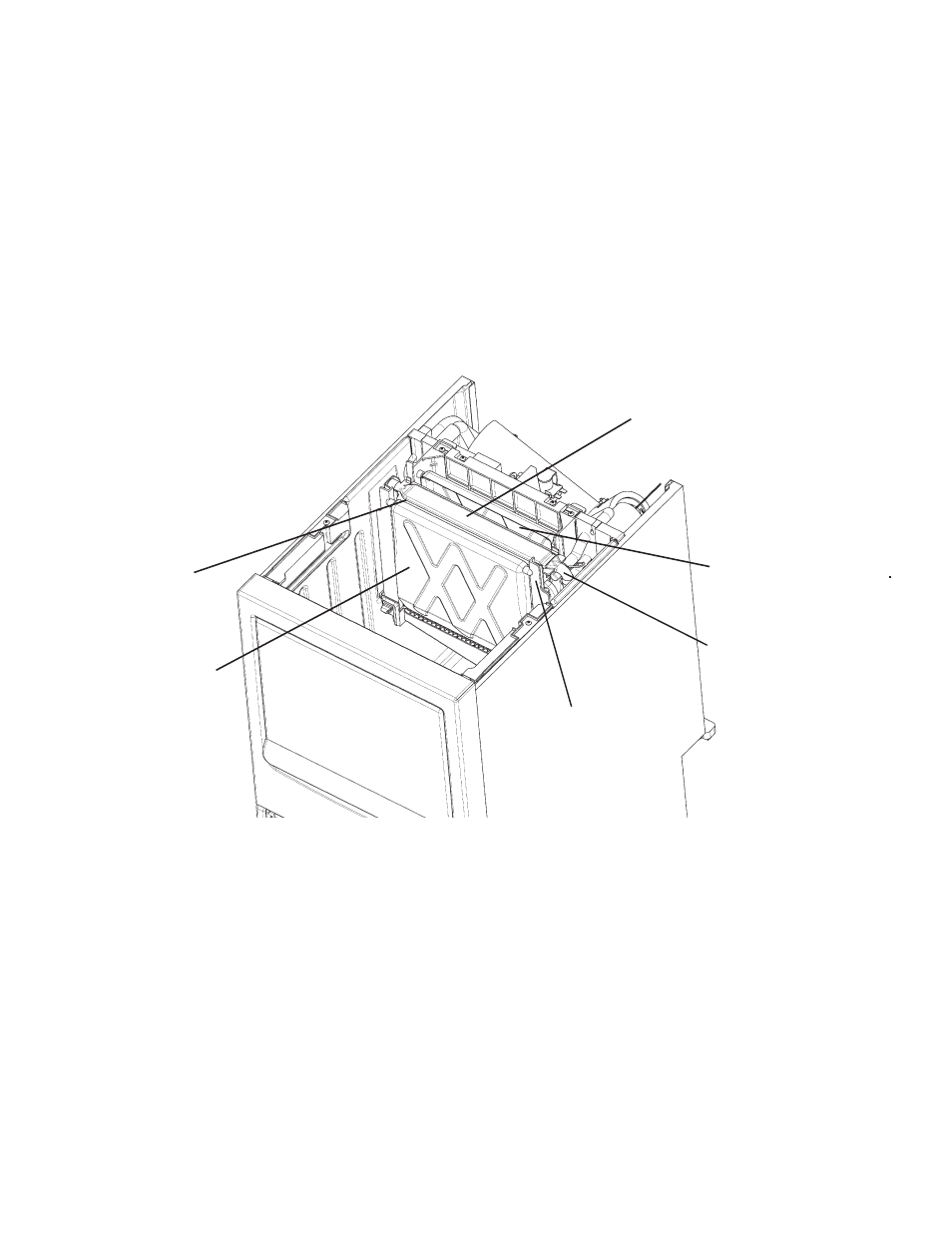

Fig. 31
22. SPRAY TUBE, WATER SUPPLY PIPE, SPRAY GUIDE
1) Unplug the icemaker or disconnect the power source. Remove the Top Panel.
2) Push the Tabs on both sides to release the Spray Tube.
3) Remove the end of the Spray Tube from the Bracket.
4) Pinch and lower the Hose Clamp and disconnect the Hose. The Spray Tube is easily
cleanable by removing the black rubber cap on the end.
Spray Guide
Spray Tube
Front Separator
Water Supply Tube
Rear Separator
Evaporator Bracket
