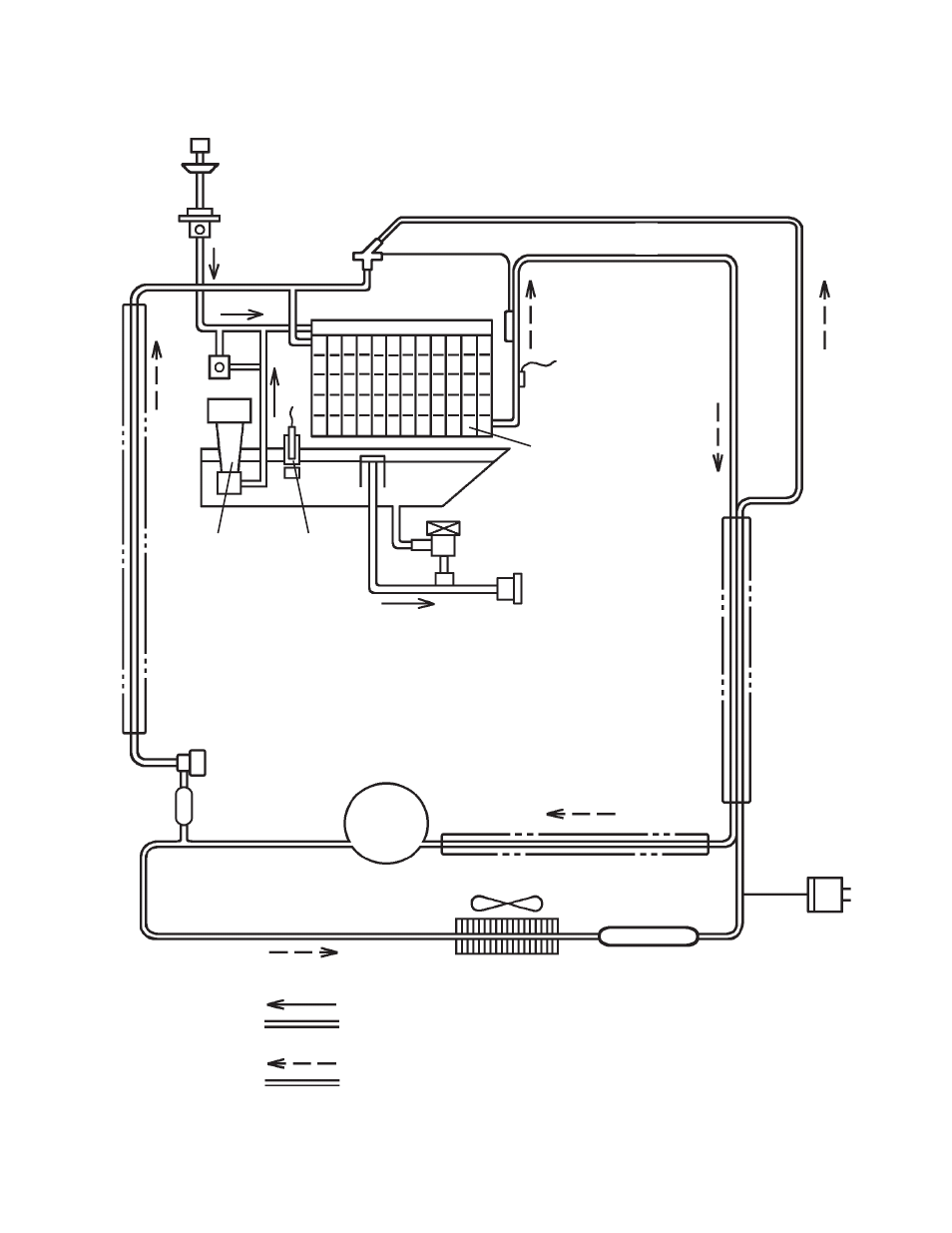

[b] KM-151BAH

Pump Motor

Water Tank

Compressor

Water Circuit

Refrigeration Circuit

Drain Valve

Drain Outlet

Hot Gas
Valve

Drier

Expansion Valve

Evaporator

Fan

Condenser

Spray Tube

Water Valve

Water Inlet

Float Switch

Cleaning Valve

Thermistor

Pressure
Switch
