Page 73

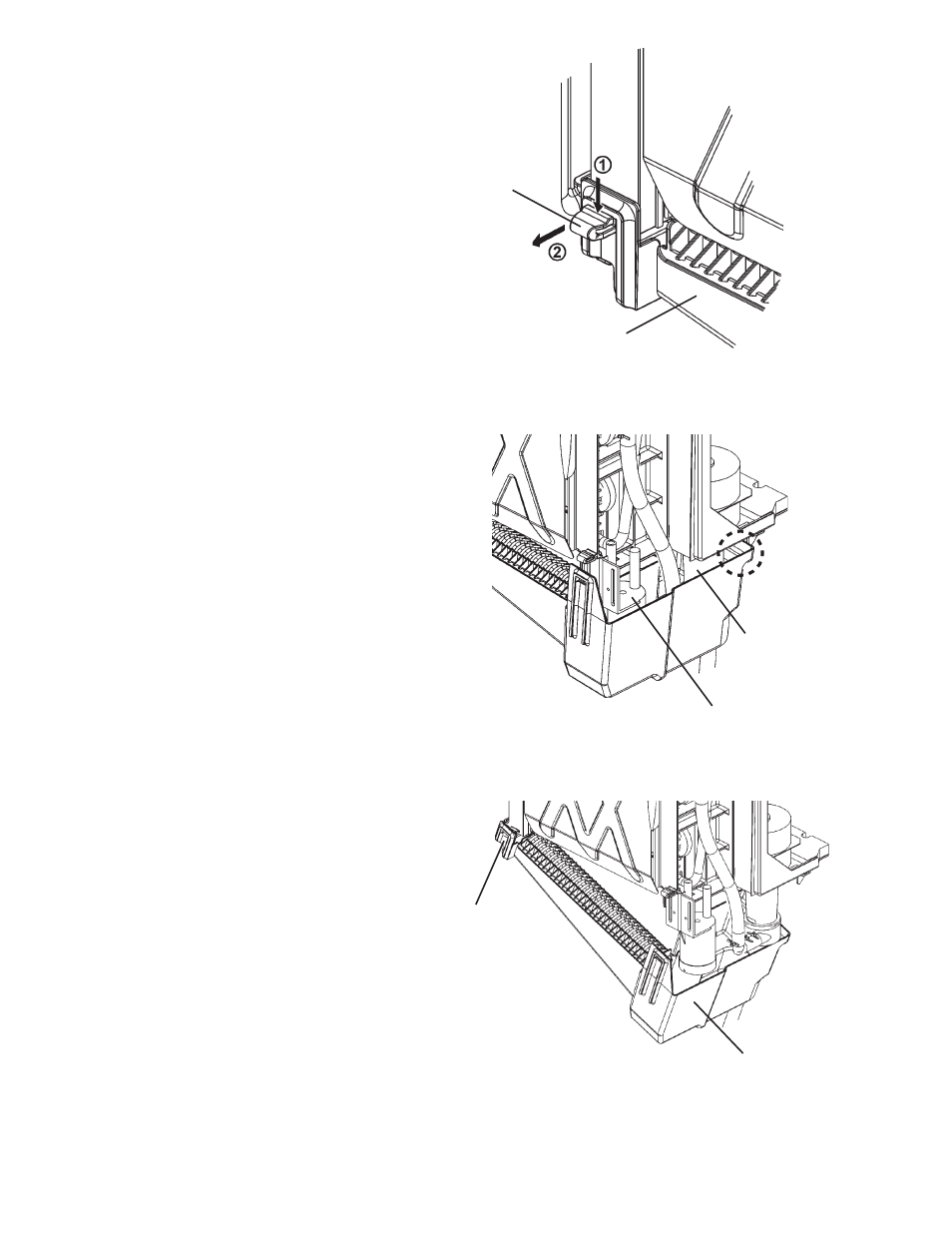

3) Pinch and push down the Snaps on

both sides of the Bracket to unhook
the Water Tank from the square holes,
and pull it about 1” toward you.

4) When the Snaps are unhooked from

the square holes, the rear part of the
Water Tank (dotted circle below) is also
unhooked. Hold the Water Tank with
both hands.

Fig. 26

Water Tank

Snap

Fig. 27

Pump Motor

Float Switch

5) Tilt the right side of the Water Tank and

pull it toward you. Do not hit the Pump
Motor or Float Switch. Slightly twist the
left side of the Water Tank inward and
pull it toward you.

Fig. 28

Right Side

Left Side

Pinch

Pull
