13. CLEANING VALVE
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top Panel and unscrew the Rear Panel.
3) Disconnect the Connectors (or Tab Terminals) of the Cleaning Valve lead.
4) Pinch and shift the two Hose Clamps.
5) Disconnect the Hoses from the Cleaning Valve. Put a towel under the Cleaning
Valve to receive any water coming out and prevent it from splashing out.
6) Remove the mounting screw.
7) Install the new valve in the reverse order of the removal procedure.
8) Plug in the icemaker or connect the power source.
9) Check for leaks.
10) Refi t the panels in their correct positions.

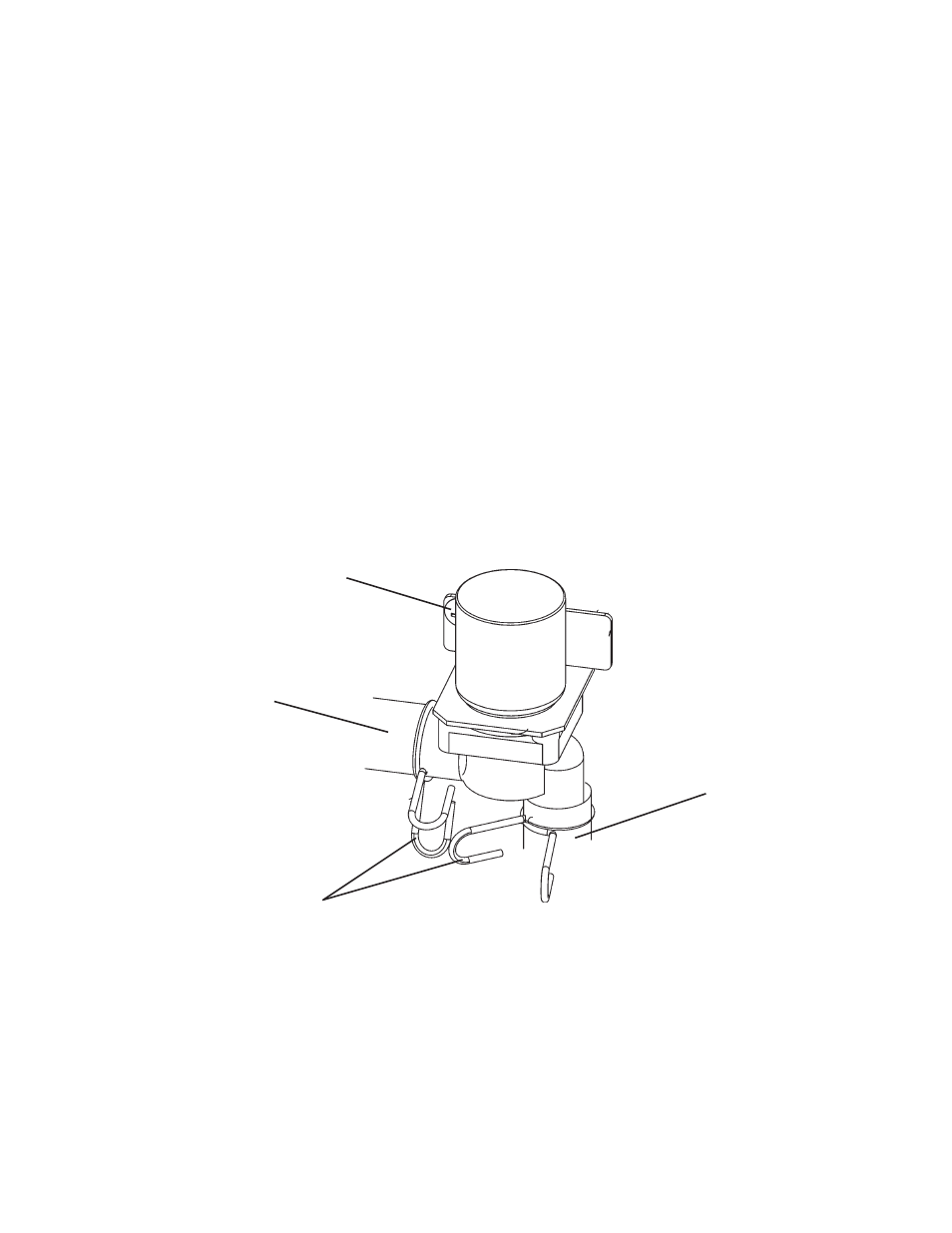

Fig. 13
Hose Clamp
Mounting Screw
Hose
Hose
