65
18. CONTROL BOX
1) Unplug the icemaker or disconnect the power source.
2) Remove the Louver.
3) Tilt the Tabs inward at the same time on both sides of the Control Box and pull the
Control Box toward you. Tilting only one Tab will not work.
4) To refi t the Control Box, push it in horizontally.
Note: After replacing the components inside the Control Box, connect and tie the wires
properly in their correct position. Especially make sure that the Harness does not
press the Push Buttons on the Control Board.

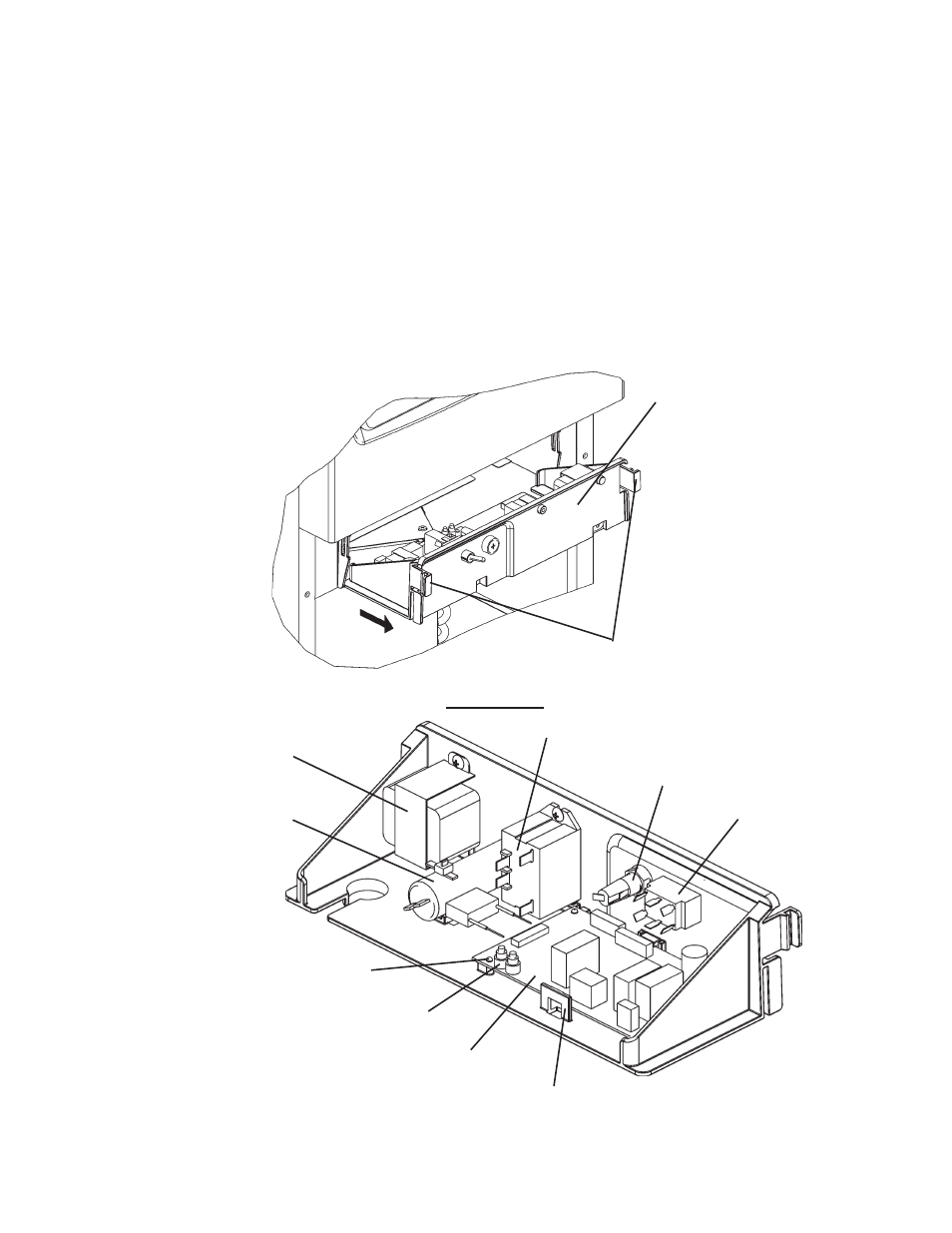

Fig. 24
Tab
Control Box
Power Relay
Transformer
Control Board
Control Box
Capacitor
(KM-101/151 only)
Power Switch
Fuse
Fuse Holder
Tab
Push Button
Positioning Lug
