KK-XXX-05_INST_8-07 4

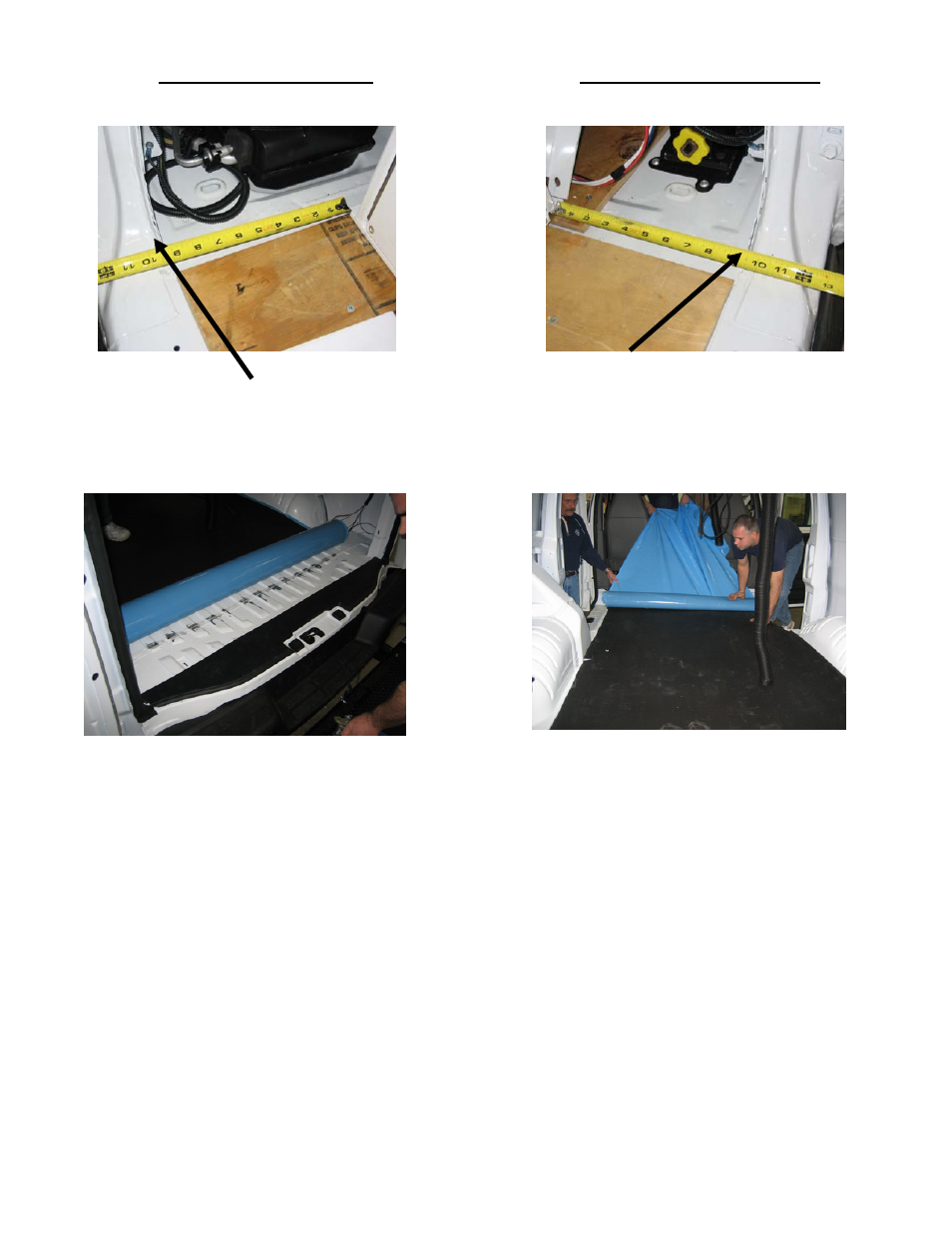

Ford Van Driver-Side rear Ford Van Passenger-Side rear
PASSENGER WINDOW VAN PREPARATIONS:
1. Remove all rear bench seats from the vehicle.
2. Modify / remove interior parts as needed.
3. Remove floor mat/carpet and replace with ½” plywood or sound deadening material.
(Recommended).
4. If installing KK-F-VAK, (OEM air conditioning adapter) cut or remove all plastic
trim around the rear OEM system.
8”inches to rear body flange. Note: The OEM rear Black
plastic trim will remain. Photos show without Trim.
8” to 8 ½” Note: Exact position may not be
square to Driver side if van has OEM rear Air
conditioning
Note: Photos above show a Chevrolet Van. Photos are intended to show rubber floor mat option only.
***Kwik kits are designed for cargo vans with no rear OEM trim, however they can be
installed into passenger window vans. Some rear trim removal or modification is required.
Do not remove all rear trim and headliner as this will aid in sound deadening & insulation
UNPACKING AND INSTALLATION:
***Refer to exploded view drawing on page 16 to identify parts ***
