An awe or scribe will help
align the holes
THE FOLLOWING STEPS ARE EXTREMLY CRITICAL FOR A SUCCESFULL
INSTALLATION! PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY.

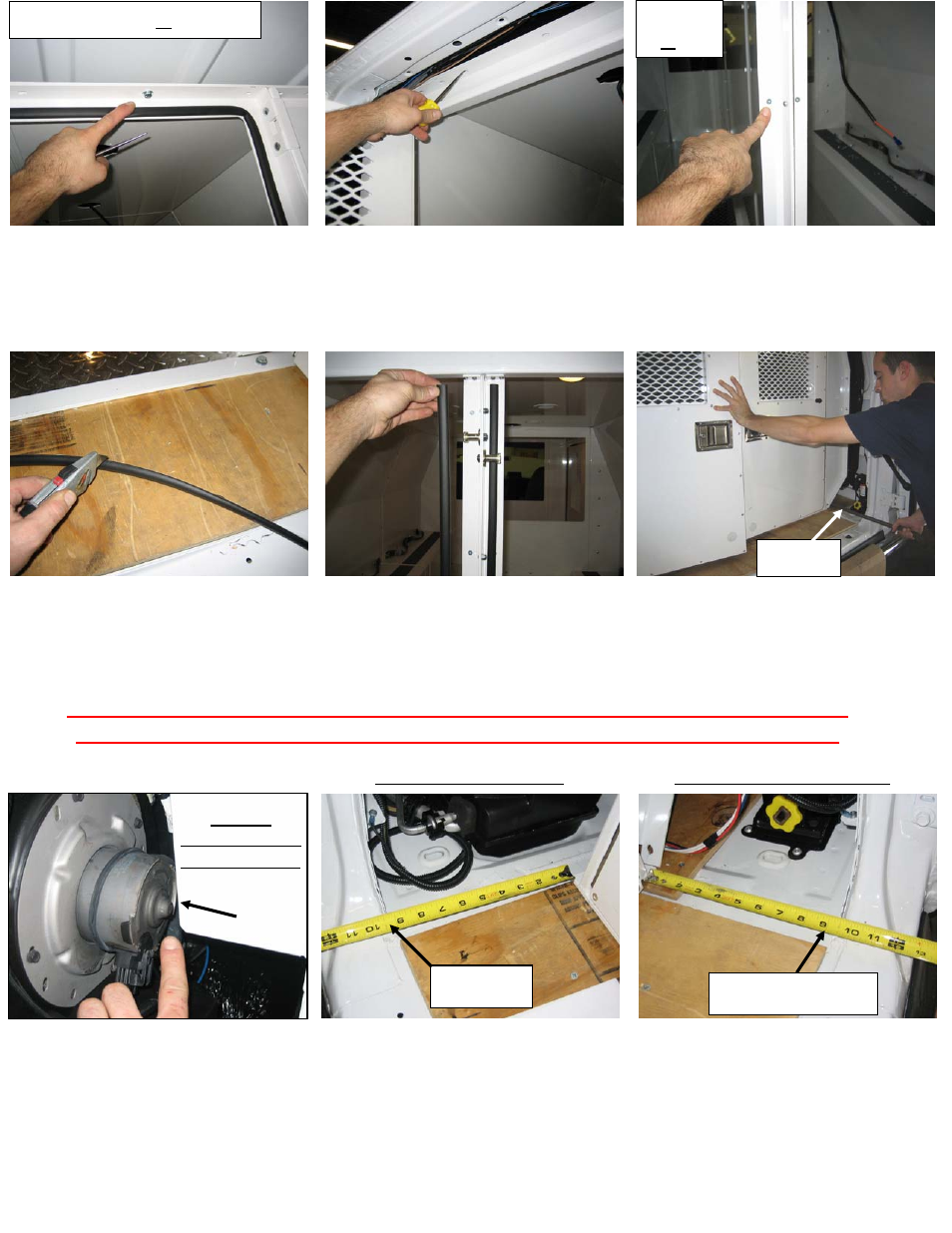

Item #1
Rear driver-side
doorframe wing
Position of driver-side Rear
Doorframe when installing with
factory rear air There should be at
least ¼” of space between the
A/C blower motor and wing
8”inches
Lower Driver-Side rear
Measurement from driver-side
Rear Doorframe to vehicle
doorframe shown above
8” to 8 1/2” inches
Lower Passenger-Side rear
Measurement from passenger-side
Rear Doorframe to vehicle
doorframe shown above
Cut door gasket with utility knife. Cut gasket to the length
of door acceptor frame. Attach as shown above.
Position the entire unit according to the
measurements on the following page.
Note: Maneuver the kit into position.
Tighten screws holding Rear
Doorframe to Center Divider
Continue around the entire kit bolting
pieces to Bulkheads and
using ¼ x ¾” carriage
bolts, washers, and serrated nuts
Item #6
to
Item #7, #8, #12 to #3, & #6
#5
all Ceiling
Doorframes
¼”
Pry bar
