Rear OEM Trim modifications
1997-2007 Chevrolet G-Series Van
Installation of Kwik Kit is very
similar in Ford and Chevy Vans.
All kits start with a
measurement at the rear floor.

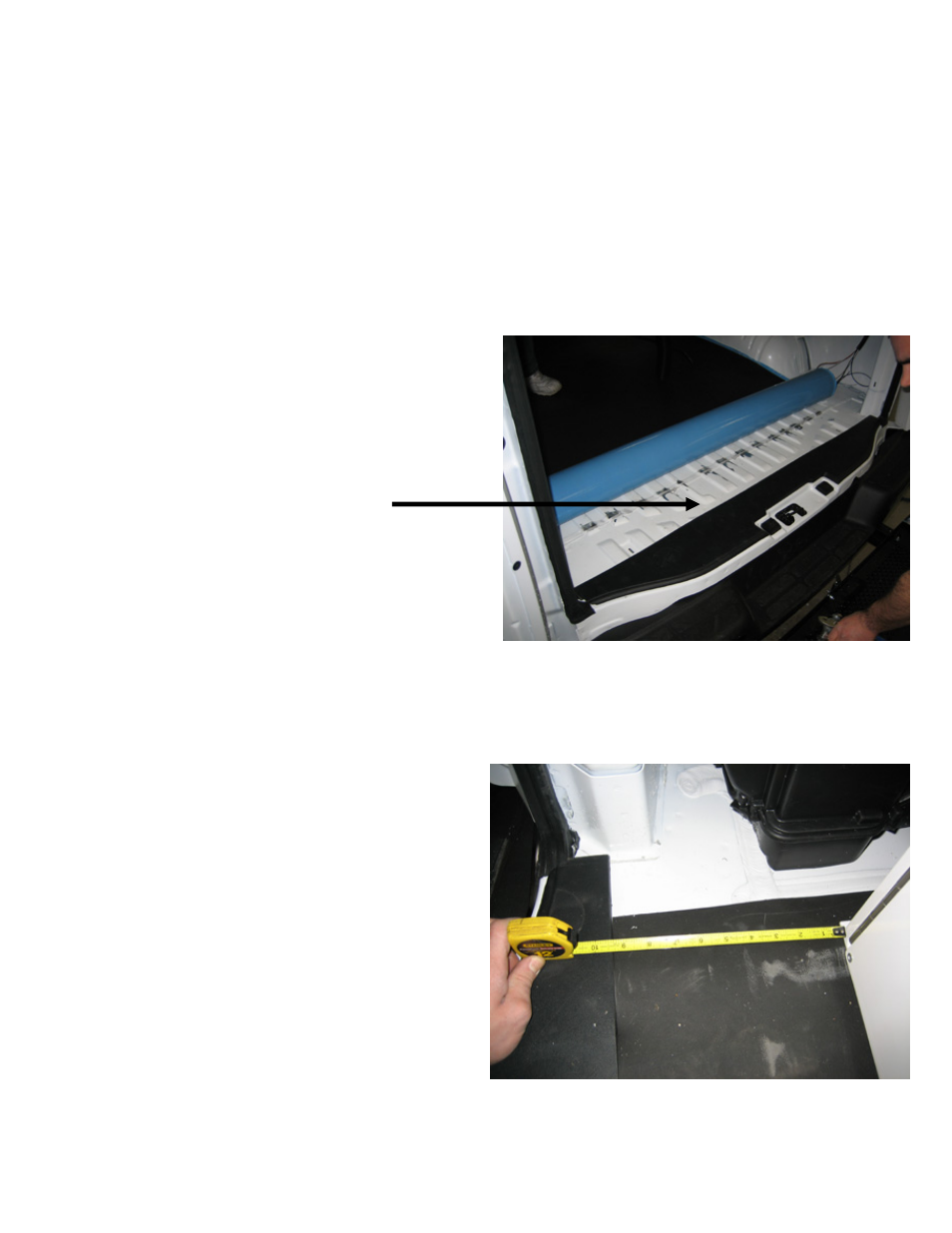

The rear plastic floor trim on
Chevy vans must be cut straight
across as shown in photo.
Measure seven inches ( 7” )
straight line full width.
(Jig saw works well for this
ste
from rear center of trim and cut
p)
After plastic trim is cut and back
in it’s original location, you must
measure 7” inches forward on
both sides from newly cut trim to
place rear Kwik Kit bulkhead.
This is the starting position so
parts fit into the correct locations.
Note: With OEM rear AC/Heat,
The kit will be shifted to
passenger side.
.
*** Ford Van does NOT require
rear trim modification***
